Transfer Case Fluid Level Check (G1568855): Check

  1. CAUTION: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  2. Refer to: Air Deflector (Front End Body Panels, Removal and Installation).

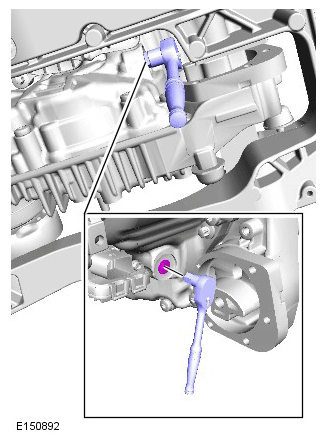

  3. CAUTION: Make sure that the area around the component is clean and free of foreign material.
    G11423759
