Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

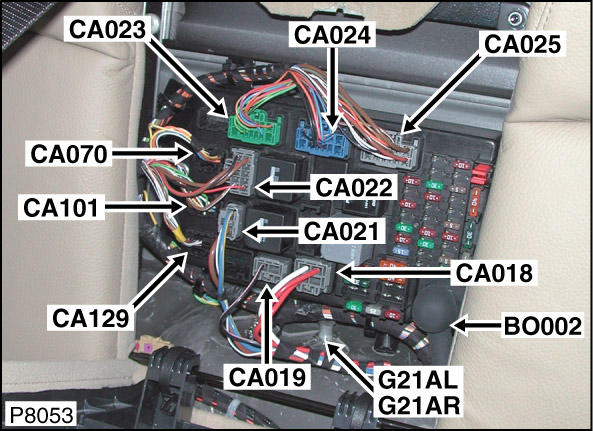

| Auxiliary Junction Box (BO002) | Behind rear seat backrest. See Figure. |

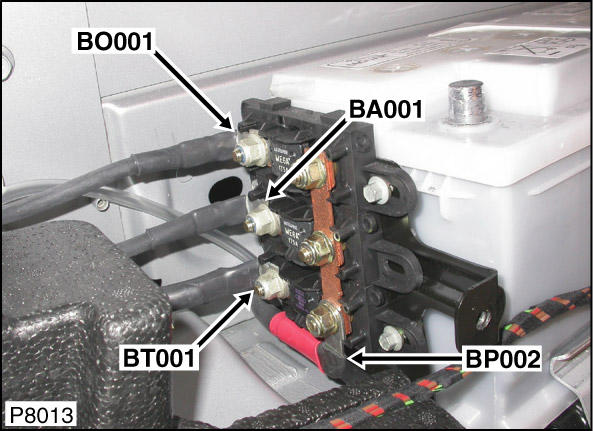

| Battery Junction Box (BO001) | Left side of luggage compartment. See Figure. |

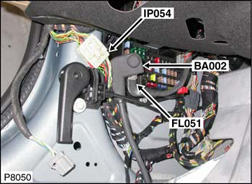

| Central Junction Box (BA002) | Behind left kick panel. See Figure. |
| Inline Diode (DL006) | Under driver's seat. |
| Power Distribution Box (FL034) | Left side of engine compartment. See Figure. |
