4.2.5 Misfire Enable Criteria

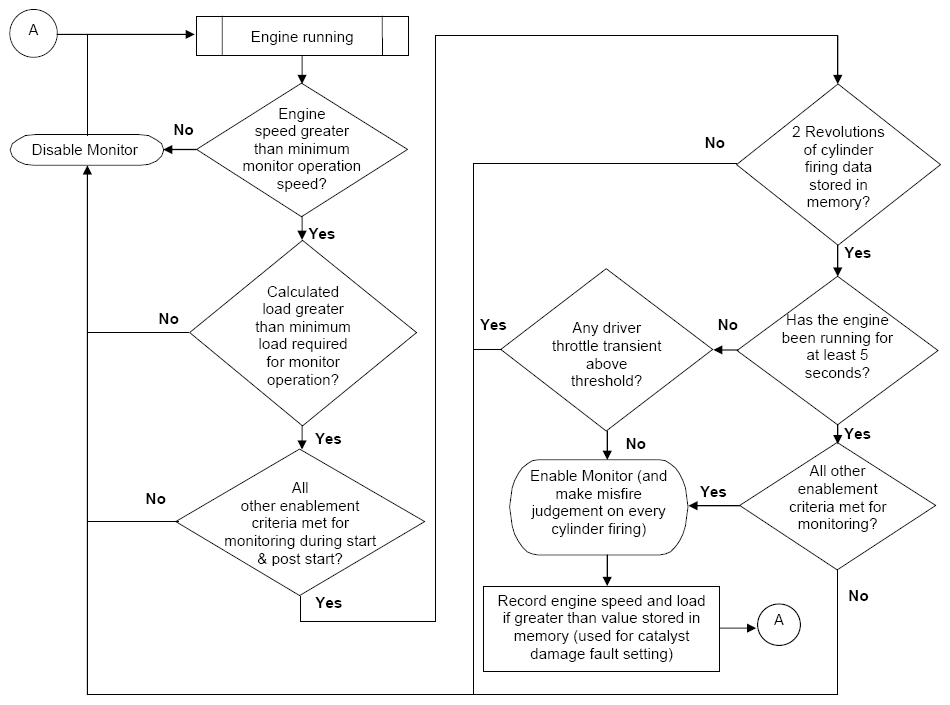

Fig 1: Misfire Enable Criteria Flow Chart
G06421548Courtesy of JAGUAR CARS, INC.

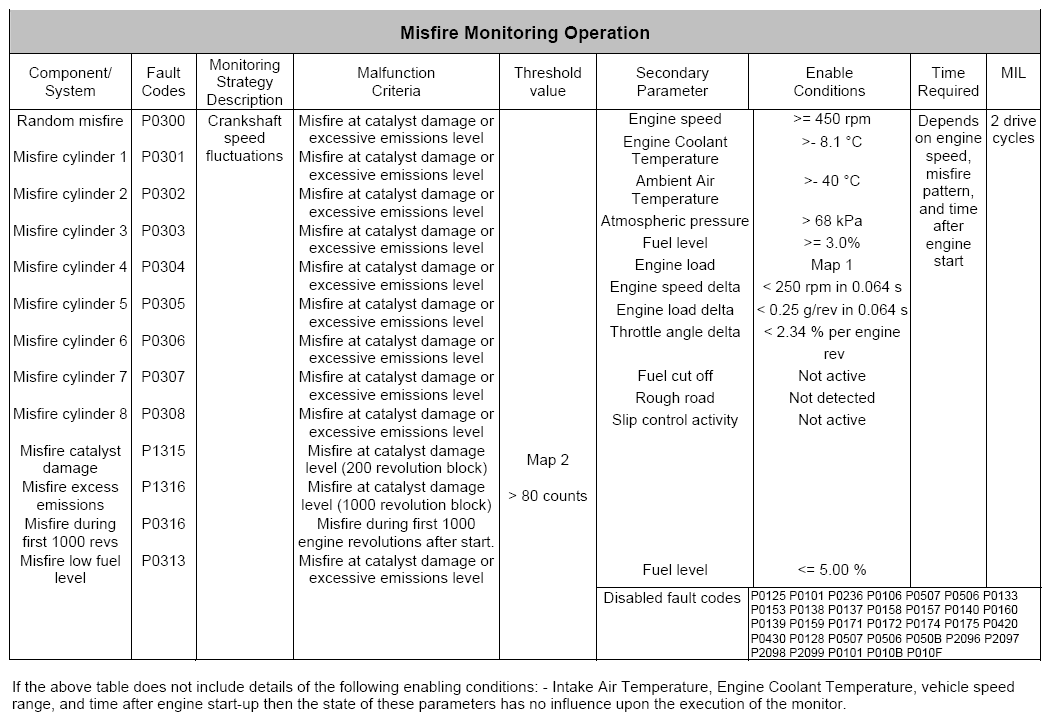

Fig 2: Misfire Monitoring Operation (P0300, P0301, P0302, P0303, P0304, P0305, P0306, P0307, P0308, P0313, P0316, P1315, P1316)
G06421549Courtesy of JAGUAR CARS, INC.

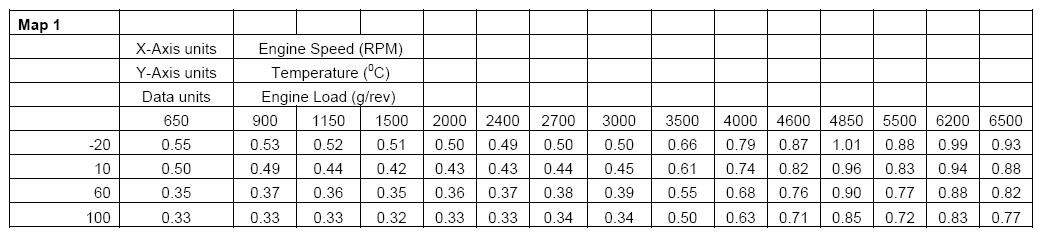

Fig 3: Engine Speed RPM Chart (Map 1)
G06421550Courtesy of JAGUAR CARS, INC.

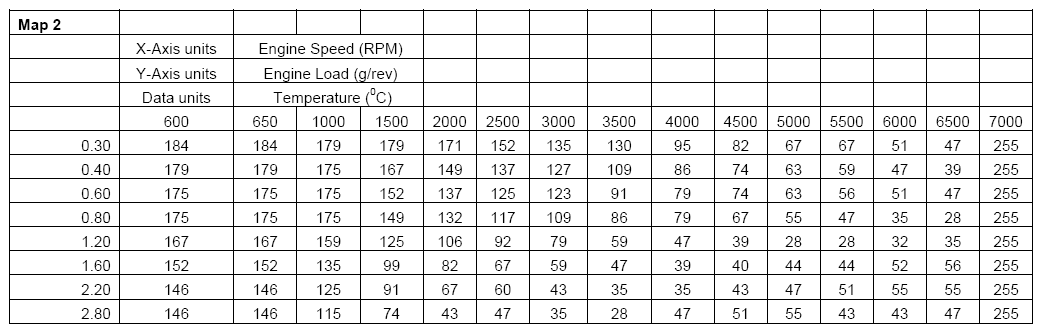

Fig 4: Engine Speed RPM Chart (Map 2)
G06421551Courtesy of JAGUAR CARS, INC.
