Engine Oil Temperature Sensor

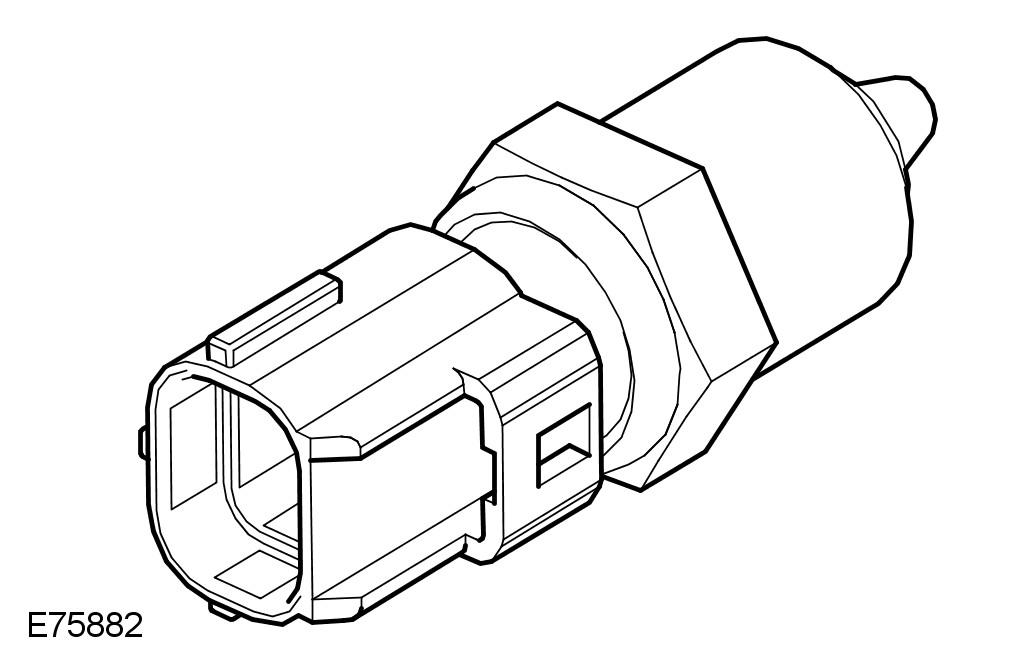

Fig 1: Engine Oil Temperature Sensor
GJ0009764Courtesy of JAGUAR CARS, INC.

Oil temperature is monitored through a temperature sensor mounted in the oil system. This component is a NTC (negative temperature coefficient) type. The sensor is mounted next to the oil pressure sensor at the front of the engine and locates into the oil filter bracket.
