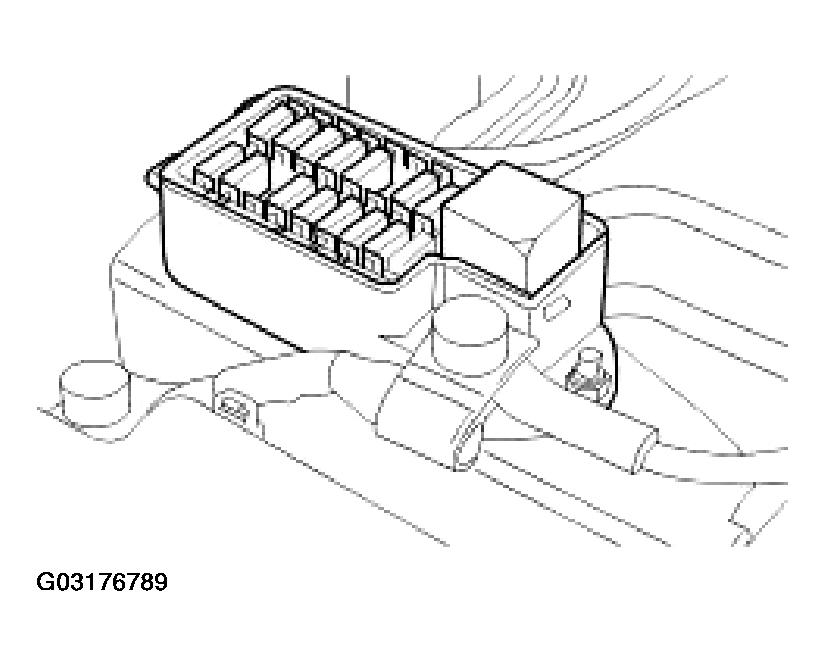

Engine Management Fuse Box
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Jaguar XJR, 2003 Jaguar XJ8, 2003 Jaguar XJ, 2002 Jaguar XJR, and 2002 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.
ENGINE MANAGEMENT FUSE BOX SPECIFICATIONS
| Fuse No | Rating (amps) | Circuit |
|---|---|---|
| 1 | 20 | Adaptive damping |
| 2 | 15 | Intercooler water pump (Supercharger) |
| 3 | 25 | Starter solenoid. |
| 4 | 5 | Engine control module. |
| 5 | 10 | Fuel injectors. |
| 6 | 5 | Transmission control module |
| 7 | - | Not used. |
| 8 | 10 | Air conditioning compressor clutch. |
| 9 | 30 | Throttle motor. |
| 10 | 5 | Engine control module, Park/Neutral switch, cruise control VSV 1 and 2 (where fitted), EGR valves. |
| 11 | - | Not used. |
| 12 | 10 | Air flowmeter, VVT solenoids. |
| 13 | - | Not used. |
| 14 | 10 | HO2S sensor heaters (where fitted), EVAP valve, ignition coils relay, throttle motor relay, AC compressor clutch relay, radiator fans control module, CCV. |
| 15 | 30 | Windscreen left-hand heater. |
| 16 | 5 | Control module compartment cooling fan. |
| 17 | 30 | Windscreen right-hand heater. |
| 18 | 10 | Ignition coils, ignition amplifier. |
