Engine Compartment

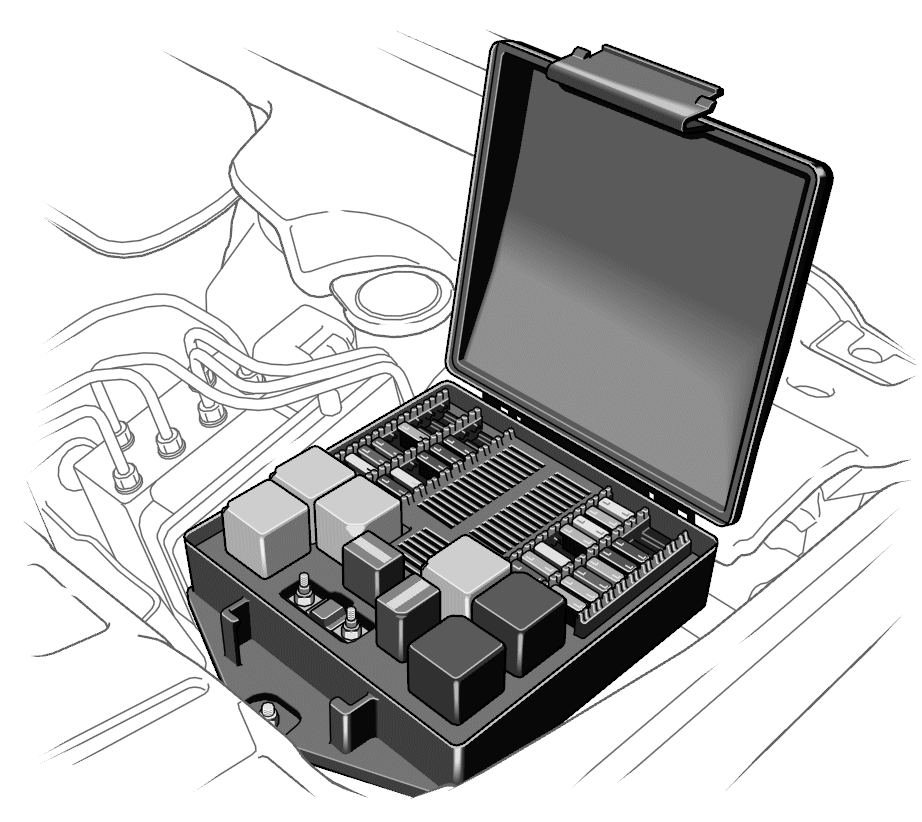

The engine compartment fuse box is located on the right-hand side adjacent to the windscreen wash reservoir. See Fig 1

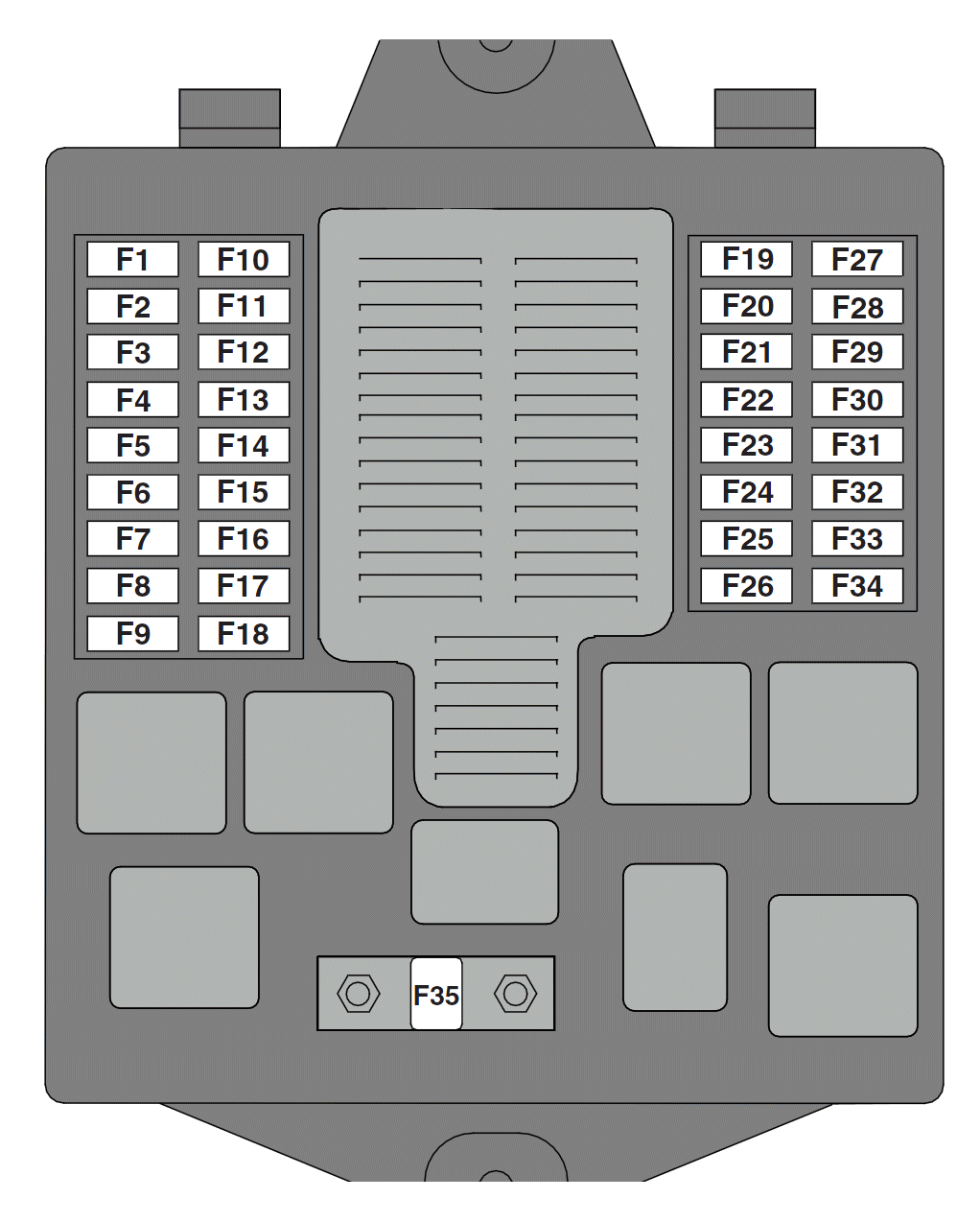

ENGINE COMPARTMENT FUSE BOX FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| F1 | 5A | Front ignition, UHEGO, fuel pump, rear ignition relay coils |
| F2 | 10A | Throttle (petrol engine only) |
| F3 | 5A | DSC ECU |
| F4 | 30A | Powerwash pump |
| F5 | - | Not used |
| F6 | 40A | Air suspension compressor |
| F7 | 40A | Right-hand front screen heater or wiper park zone heater |
| F8 | 20A | Right-hand low beam |
| F9 | 20A | Left-hand low beam |
| F10 | 15A | Horns |
| F11 | - | Not used |
| F12 | 10A | Engine control module |
| F13 | 10A | Fuel injectors |
| F14 | 10A | Purge valve, EGR valve, DMTL, V6 intake manifold tuning valves (IMTV), MAFS, air filter solenoid, radiator fan controller |
| F15 | - | Not used |
| F16 | 20A | Right-hand main beam, left-hand main beam |
| F17 | 10A | Engine control module, transmission control module |
| F18 | 15A | Front fog lights, instrument cluster front fog status |
| F19 | 25A | Starter solenoid |
| F20 | 30A | ABS module (pump) |
| F21 | - | Not used |
| F22 | 15A | ABS module |
| F23 | - | Not used |
| F24 | 20A | Intercooler water pump (supercharged engines) |
| F25 | - | Not used |
| F26 | 40A | Wiper system, front electronics module (FEM) |
| F27 | 5A | Secondary air injection |
| F28 | - | Not used |
| F29 | - | Not used |
| F30 | 15A | Ignition coils |
| F31 | 15A | Not used |
| F32 | 40A | Left-hand front screen heater |
| F33 | 30A | B bank heated oxygen sensors |
| F34 | 30A | A bank heated oxygen sensors |
| F35 | 80A | Radiator cooling fan |
