Front Electronic Module Connector End View

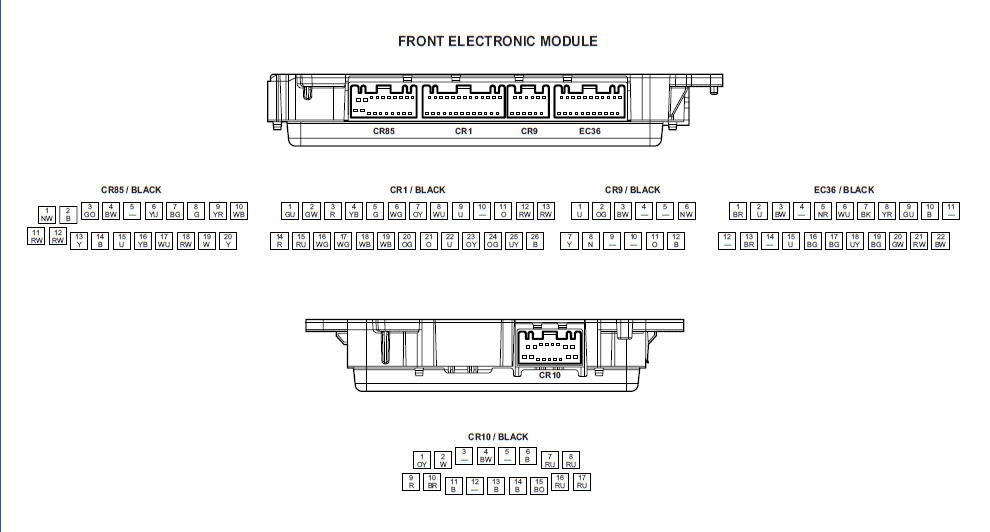

Fig 1: Front Electronic Module Connector End View

G00558689

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
