Front Auxiliary Junction Box: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Jaguar XJR, 2003 Jaguar XJ8, 2003 Jaguar XJ, 2002 Jaguar XJR, and 2002 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.

Remove battery cover and disconnect ground cable from battery terminal. Refer to BATTERY GROUND CABLE .
Open bonnet and fit body paintwork protection sheets.

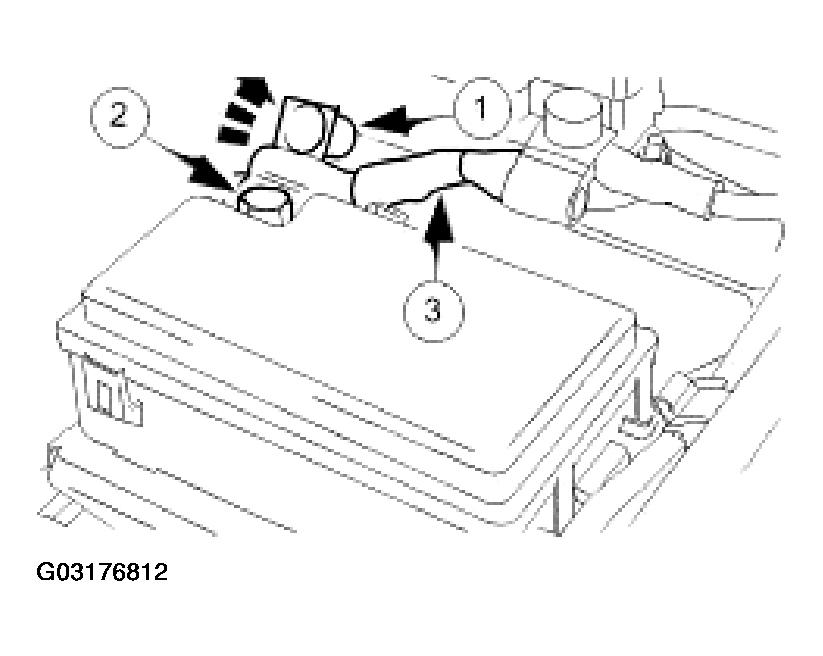

Remove positive supply power cable.
- Displace cover. (1)
- Remove nut. (2)
- Disconnect cable. (3)

  Fig 1: Removing Positive Supply Power Cable
  Courtesy of JAGUAR CARS, INC.

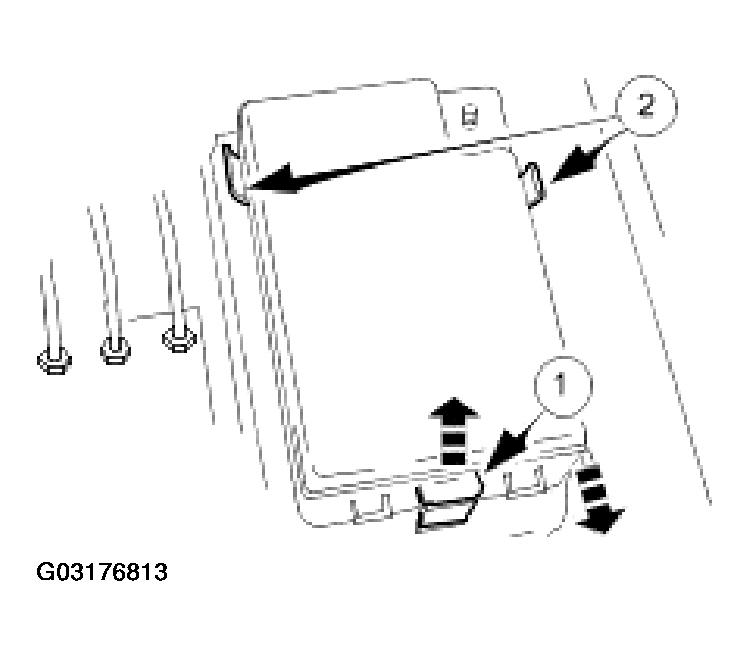

Remove fuse box from mounting panel.
- Release securing latch, upwards, displace fuse box outwards and remove from mounting panel. (1)
- Release securing tangs and remove cover. (2)

  Fig 2: Removing Fuse Box From Mounting Panel
  Courtesy of JAGUAR CARS, INC.

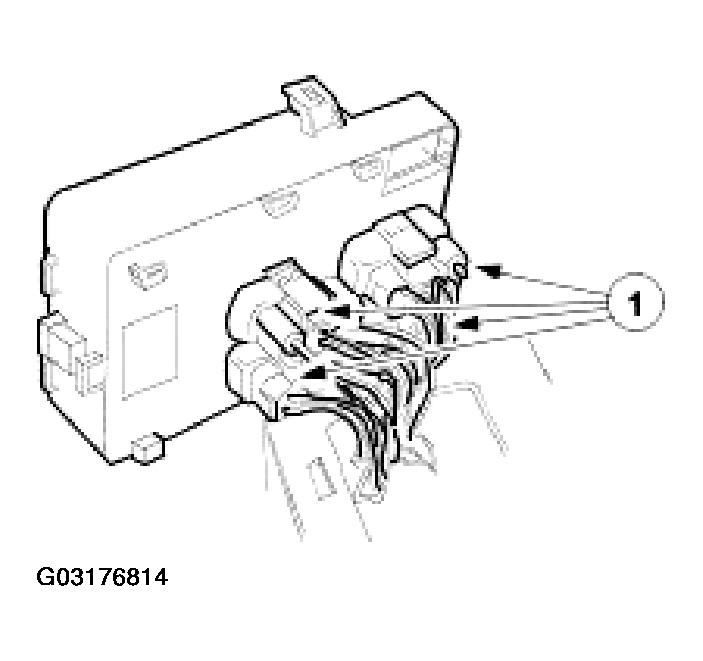

Remove fuse box.
- Identify and disconnect harness connectors. (1)

  Fig 3: Removing Fuse Box
  Courtesy of JAGUAR CARS, INC.

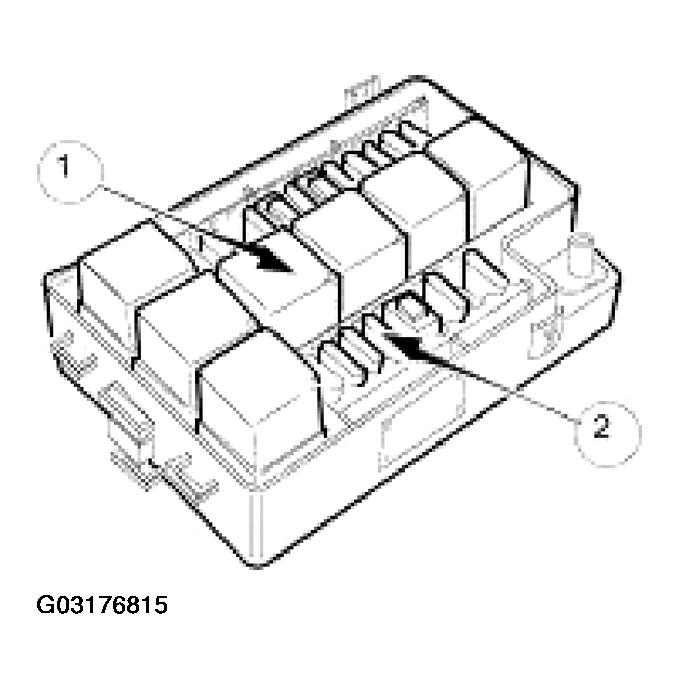

Remove fuses and relays.
- Note position of each relay and remove them. (1)
- Identify each fuse and remove them. (2)
- The value and position of each fuse is illustrated on the lid of the trunk compartment fuse box - for all fuse boxes on the vehicle.

  Fig 4: Removing Fuses And Relays
  Courtesy of JAGUAR CARS, INC.
