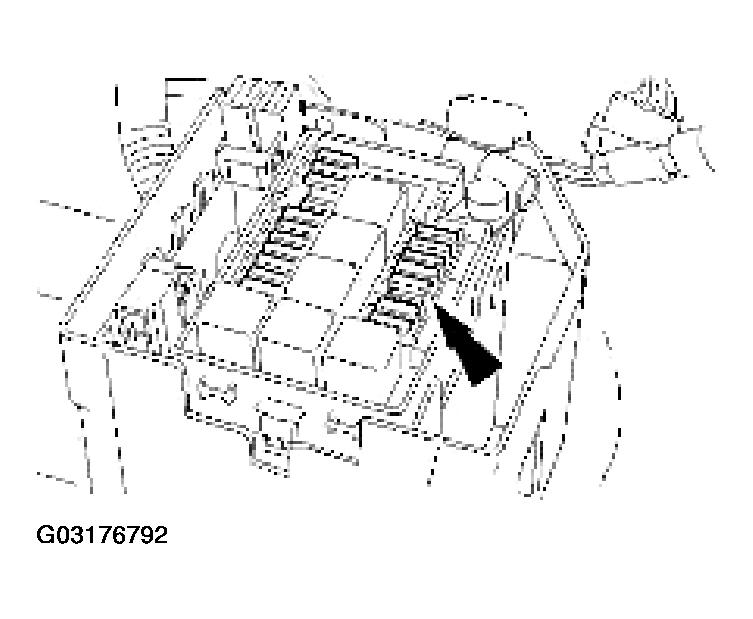

Trunk Fuse Box
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 Jaguar XJR, 2003 Jaguar XJ8, 2003 Jaguar XJ, 2002 Jaguar XJR, and 2002 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.
TRUNK FUSE BOX SPECIFICATIONS
| Fuse No | Rating (amps) | Circuit |
|---|---|---|
| 1 | 10 | Security and locking control module (Reversing lamps, rear fog lamps, stop lamps, electrochromatic mirror). |
| 2 | 5 | Fuel filler flap. |
| 3 | 10 | F16 left-hand heelboard (where fitted). |
| 4 | 5 | Diagnostic connector. |
| 5 | 5 | Right-hand and left-hand seat timer (rear). |
| 6 | - | Not used. |
| 7 | 20 | Fuel pump. |
| 8 | 10 | High mounted stop lamp, caravan/trailer stop lamps |
| 9 | 10 | Antenna motor. |
| 10 | 10 | Security and locking control module (trunk release, caravan/trailer direction indicators, fuel filler flap relay). |
| 11 | 10 | Accessory sockets. |
| 12 | 15 | In-car entertainment power amplifier. |
| 13 | - | Not used. |
| 14 | - | Not used. |
| 15 | 20 | Fuel pump (supercharger, where fitted). |
| 16 | 20 | Caravan/trailer connector. |
| 17 | 25 | Heated rear screen. |
| 18 | 20 | Rear seat movement. |
| 19 | 5 | Right-hand side lamps, left-hand and right-hand number plate lights, caravan/trailer. |
| 20 | 20 | Rear seat movement. |
| 21 | 5 | Left-hand side lamps, left-hand and right-hand sidemarker lights, caravan/trailer. |
| 22 | 20 | Rear seat heaters. |
