Driver-Side Air Bag Module: Installation
WARNING: This page is about a different car, the 2001 Jaguar XKR and 2001 Jaguar XK8. However, it is still accessible from the selected car via links, so may be relevant.

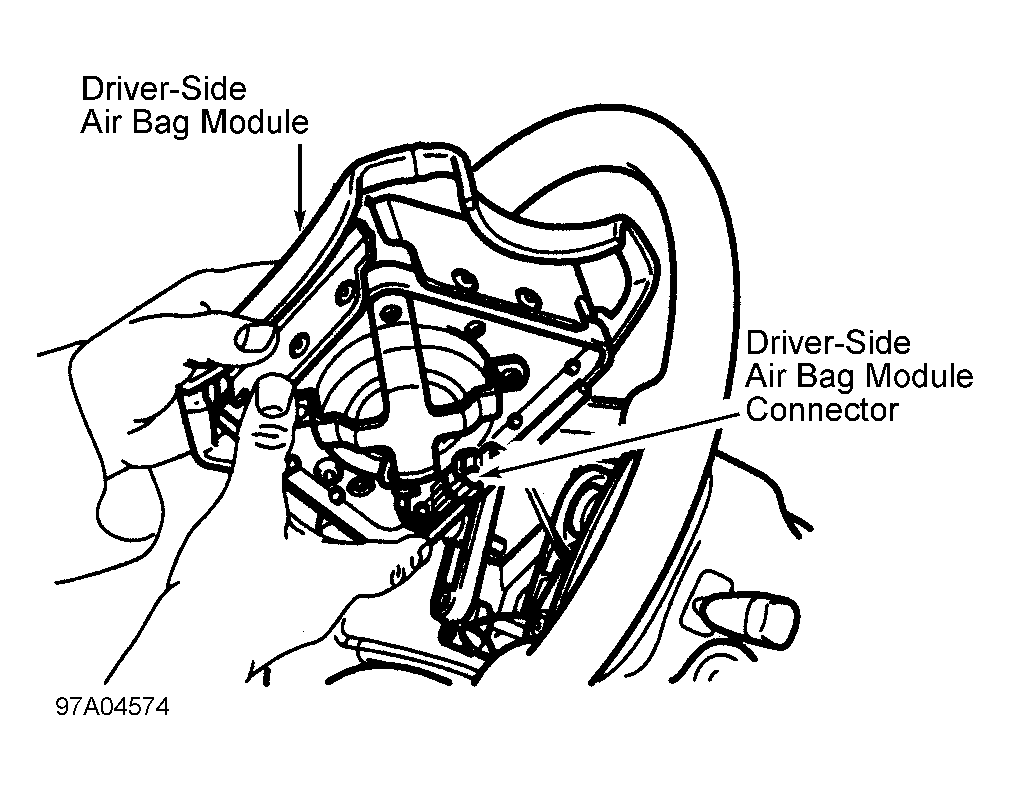

Place air bag module into position on steering wheel and connect air bag module harness connector. Turn steering wheel 90 degrees to right and partially tighten right side module bolt. Turn steering wheel 90 degrees to left and partially tighten left side module bolt. Alternately tighten each bolt until both bolts are tight. Tighten driver-side air bag module bolts to specification. See TORQUE SPECIFICATIONS . Activate air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
