Component Locations

WARNING: This page is about a different car, the 2001 Jaguar XJR and 2001 Jaguar XJ8. However, it is still accessible from the selected car via links, so may be relevant.

For restraint system component locations, refer to illustration. See Fig 1 .

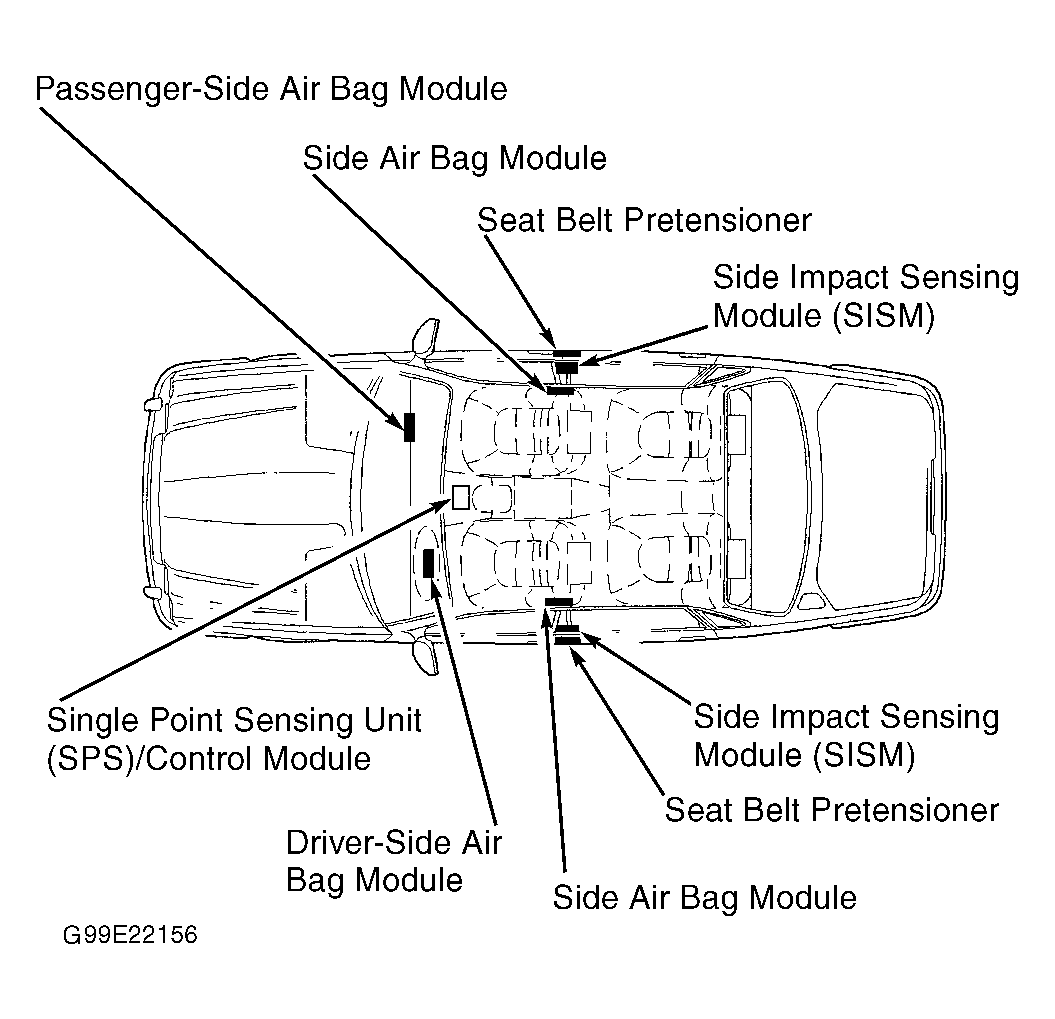

Fig 1: Locating Restraint System Components

Courtesy of JAGUAR CARS, INC.
