Control Module: Notes
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

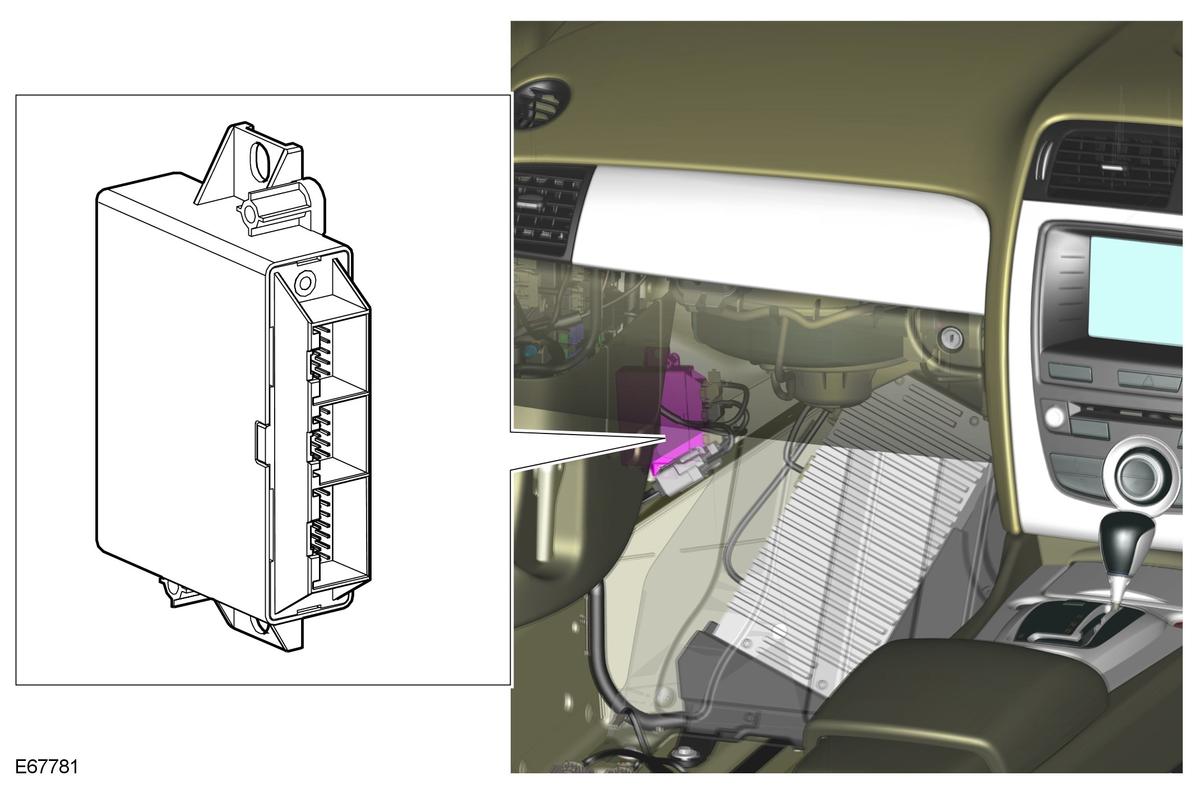

The parking aid control module is located in the passenger footwell, behind a protective panel. The control module uses a single microprocessor to perform the following tasks:
- Control of the ultrasonic sensors
- Monitoring of the sensors
- Evaluation of received echo signals from the sensors
- Noise and disturbance suppression
- Control of the audio system speakers
- Control and monitoring of the switch status Light Emitting Diode (LED) and associated wiring
- Evaluation and monitoring of the control inputs
- Management of diagnostic and test functions
- Monitoring of power supply
- Communication via diagnostic link.
The control module is connected to the vehicle electrical system by either 3 (vehicles fitted with front and rear sensors) or 2 (vehicles fitted with rear sensors only) multi plug connectors.
