Control Diagram - Most Ring (Up To 2009 My)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 Jaguar XKR, 2009 Jaguar XK8, 2008 Jaguar XKR, 2008 Jaguar XK8, and 2007 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

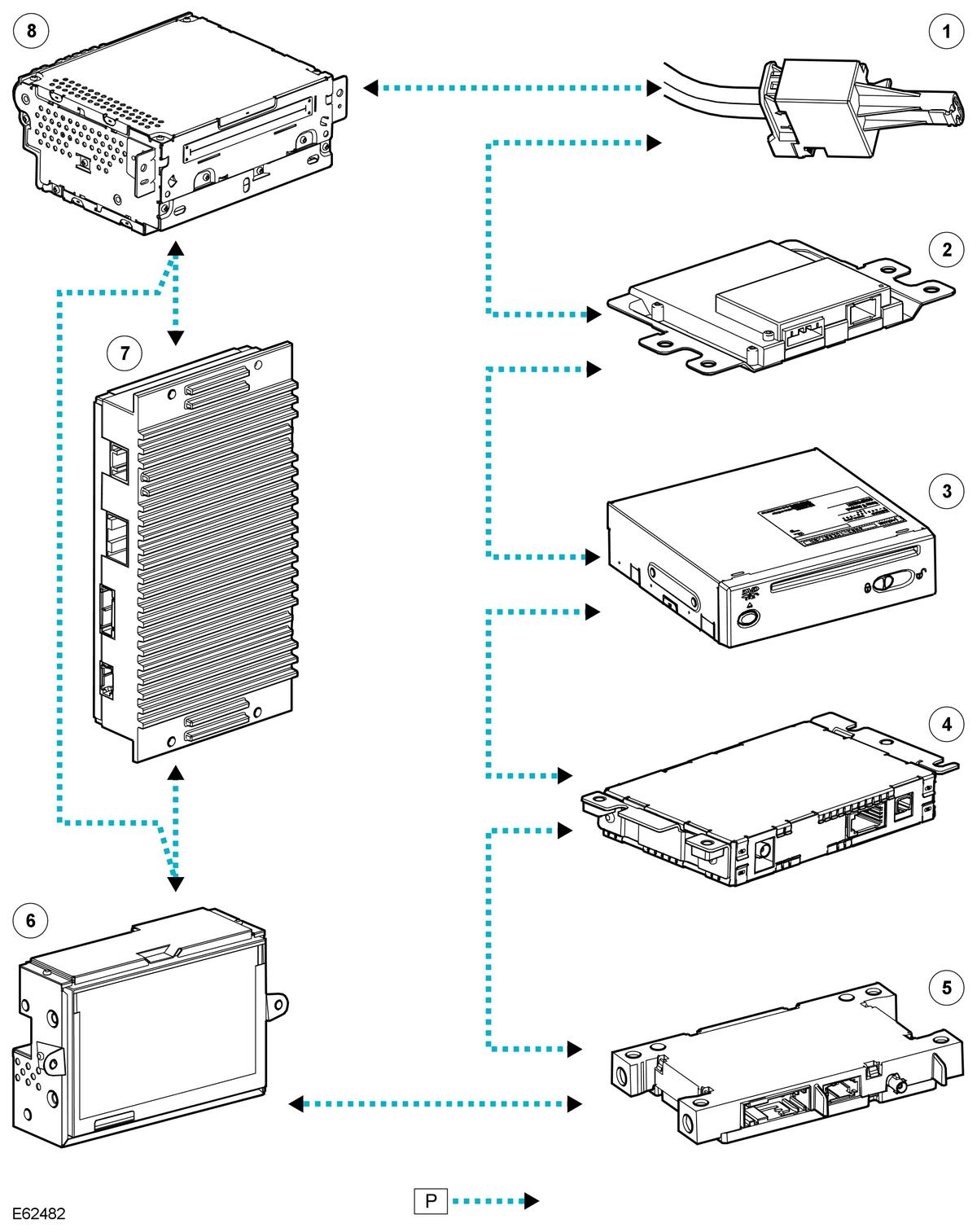

Fig 1: Communications Network Control Diagram - Most Ring (Up To 2009 MY)

Courtesy of JAGUAR CARS, INC.

Item Number	Description
1	Software download socket
2	Information and entertainment module
3	Multi-media module
4	DAB/SDARS receiver
5	Bluetooth© phone module
6	TSD
7	Audio system amplifier
8	Integrated audio module

NOTE: P = MOST ring
