Engine Control Module (ECM) (18.30.01): Installation

    CAUTION: Make sure that the electrical connector is located correctly in the ECM. Do not force or overtighten the electrical connector. Failure to follow this instruction may result in damage to the component.
    CAUTION: Make sure the ECM support bracket is located correctly.
  1. To install, reverse the removal procedure.
    • Tighten to 5 N.m.

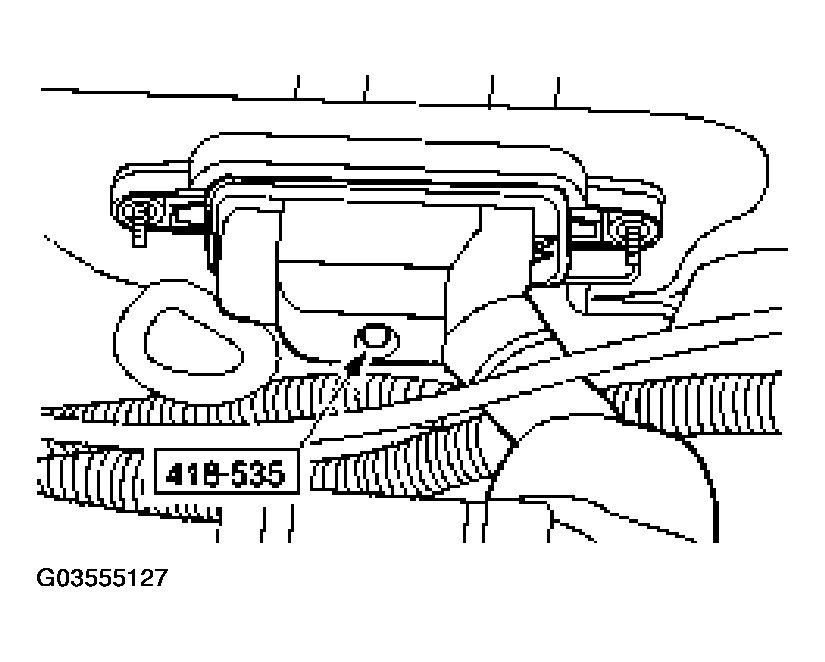

      Fig 1: Tightening Bolts With Torque Specification
      G03555127Courtesy of JAGUAR CARS, INC.
