Timing Cover

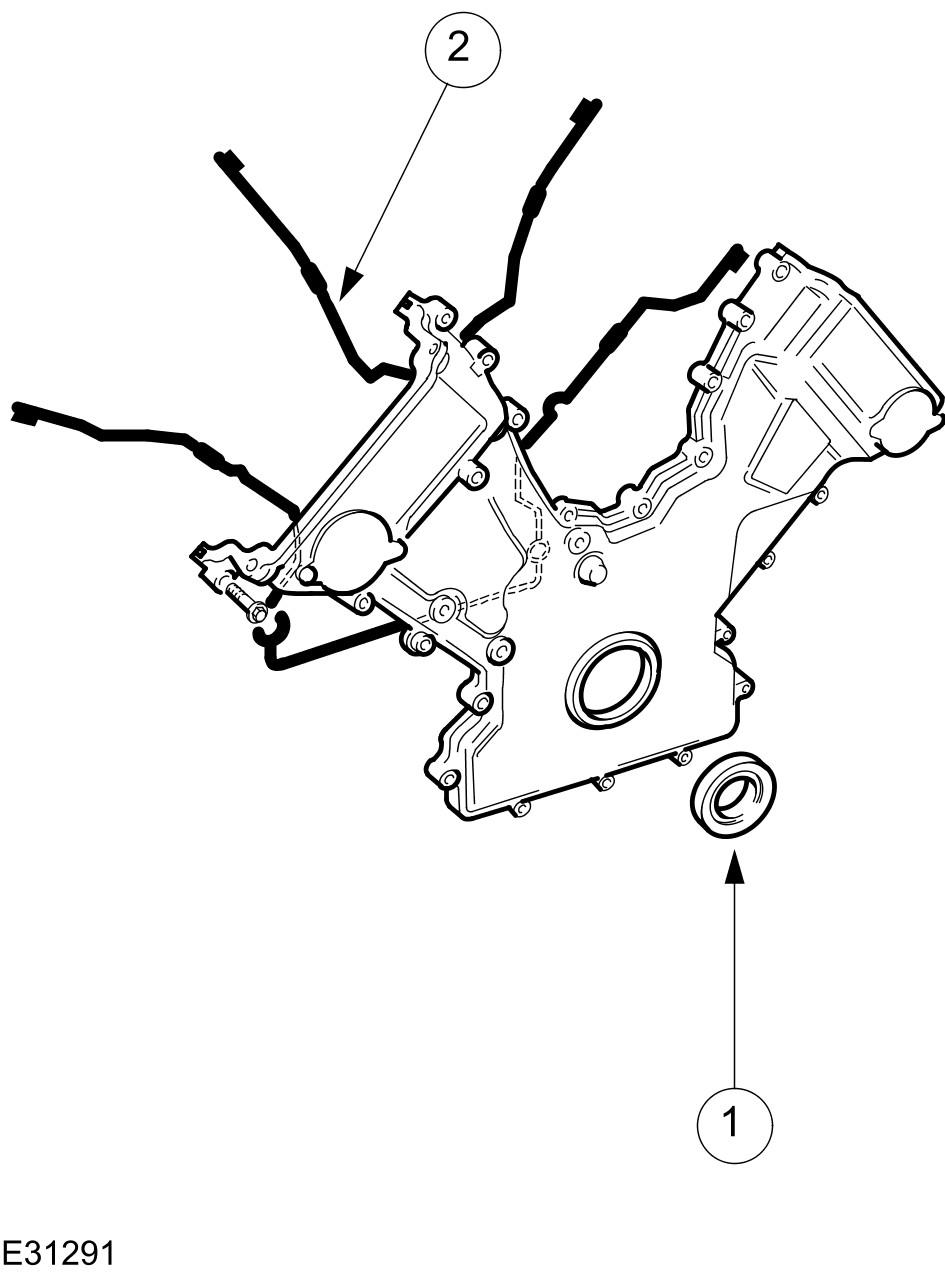

Fig 1: Crankshaft Front Oil Seal And Poly-Acrylic Seal
GJ0000737Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Crankshaft front oil seal
2 Poly-acrylic seal

The aluminium-alloy timing cover accommodates the crankshaft front oil seal. Poly-acrylic seal in-groove gaskets seal the joint between the timing cover and the front face of the engine.
