Accelerator Pedal: Installation

  1. To install, reverse the removal procedure.
    • Tighten to 10 N.m.

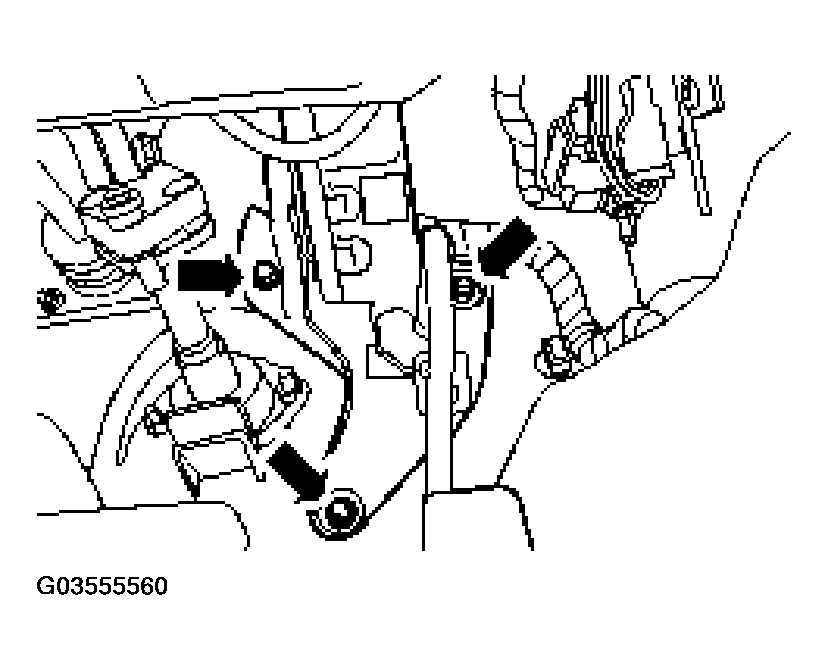

      Fig 1: Tightening Bolts With Torque Specification
      G03555560Courtesy of JAGUAR CARS, INC.
