Passenger Compartment

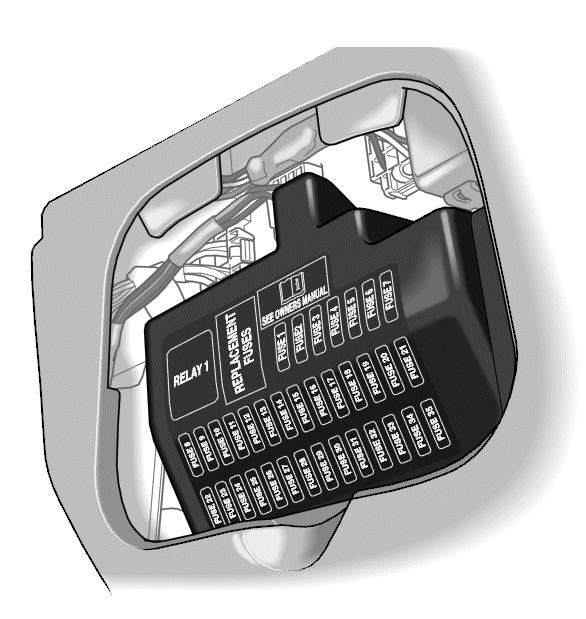

The passenger compartment fuse box is located on the right-hand side trim panel in the footwell.

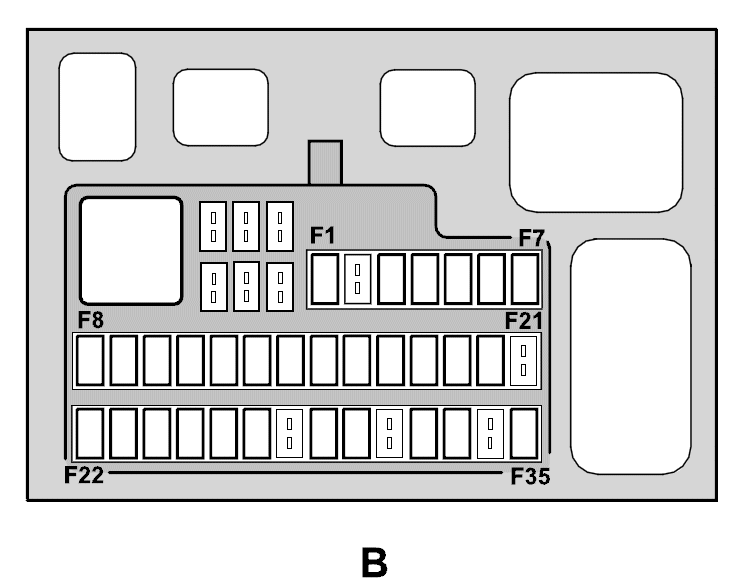

PASSENGER COMPARTMENT FUSE BOX (B) FUSE IDENTIFICATION LEGEND
| Fuse No. | Amps | Fuse Function |
|---|---|---|
| F1 | 5A | Engine control module/crankshaft sensor |
| F2 | - | Not Used |
| F3 | 5A | ABS/Dynamic stability control module, ACC module |
| F4 | 5A | Inertia switch, engine management system, fuel pump relay, ignition relay, rear electronics module, instrument cluster, brake pedal, cruise control cancel |
| F5 | 10A | Restraint control module, airbag occupant sensor, passenger airbag de-activation light |
| F6 | 10A | OBDII connector |
| F7 | 5A | Driver's door module, battery backed sounder, security LED |
| F8 | 5A | Front right turn indicator, sidemarker, park, repeater light |
| F9 | 10A | Right-hand dipped beam, left-hand HID relay coil |
| F10 | 5A | Front left turn indicator, sidemarker, park, repeater light |
| F11 | 10A | Left-hand main beam |
| F12 | 15A | Screenwash pump |
| F13 | 5A | Instrument cluster |
| F14 | 10A | Climate control system, two stage adaptive damping control module |
| F15 | 5A | Ignition switch feed (RUN) to generator, `J'-gate, transmission control module |
| F16 | 10A | Passenger/driver heated seat modules, electrochromic mirror, rain sense module, headlight levelling/HID, tire pressure module |
| F17 | 5A | Instrument cluster (airbag warning light, generator warning light, seatbelt chime) |
| F18 | 20A | Radio head unit, touch-screen/display unit |
| F19 | 15A | Steering column tilt and reach motors |
| F20 | 10A | Logic supply to instrument cluster, climate control system, front electronic module, rear electronic module, electric parkbrake |
| F21 | - | Not Used |
| F22 | 10A | Driver's door module battery supply (driver's door mirror, locks) |
| F23 | 10A | Right-hand main beam |
| F24 | 5A | Passive anti-theft system |
| F25 | 10A | Left-hand dipped beam, right-hand HID relay coil |
| F26 | 5A | Electric parkbrake switch illumination, AM/FM antenna amplifier, sunblind motor, cigar lighter and power point relay |
| F27 | 10A | Radio head unit, touch-screen/display unit, navigation module, centre console switchpack, voice control, phone transceiver |
| F28 | - | Not Used |
| F29 | 5A | Reversing aid module, telephone transceiver, front electronic module, voice control |
| F30 | 10A | Front electronic module power |
| F31 | - | Not Used |
| F32 | 10A | Accessory relay and socket |
| F33 | 10A | Front electronic module (instrument dimming, fuel/luggage compartment switchpack) |
| F34 | - | Not Used |
| F35 | 5A | Brake on/off switch, bottom of clutch switch |
