Transmission Selector Lever - Removal and Installation: Installation

Courtesy of JAGUAR CARS, INC.

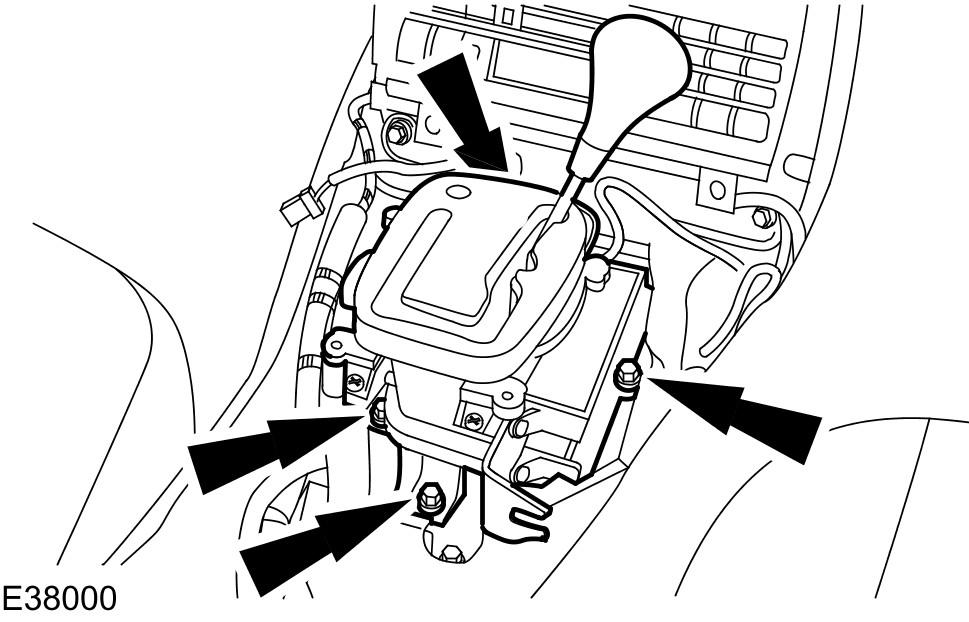

1. Install the transmission selector lever.
   • Tighten to 11 Nm.

   Courtesy of JAGUAR CARS, INC.

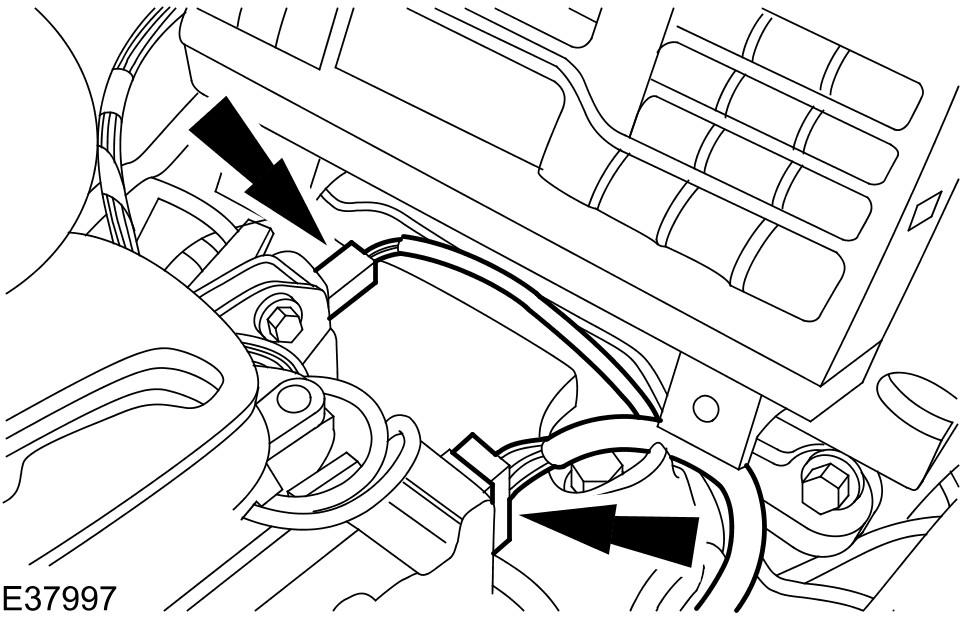

2. Attach the selector lever indicator assembly electrical connector.

   Courtesy of JAGUAR CARS, INC.

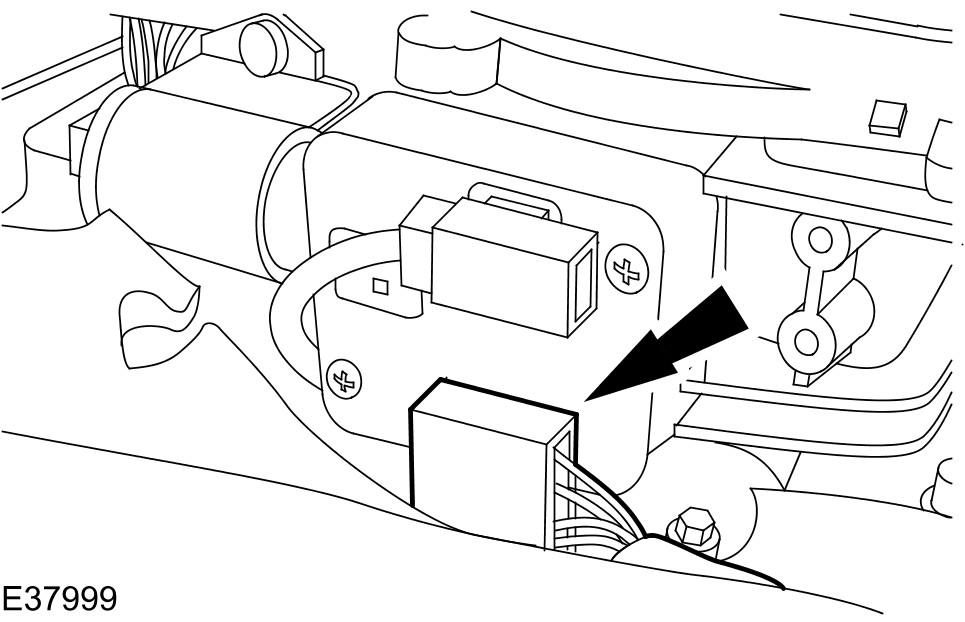

3. Connect the park position switch and selector lever indicator assembly electrical connectors.

   Courtesy of JAGUAR CARS, INC.

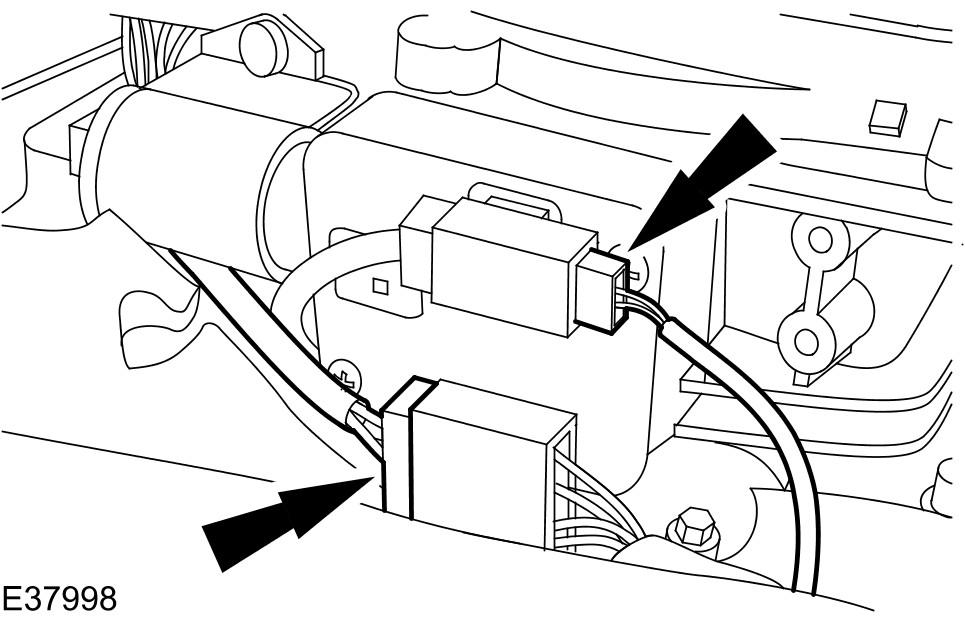

4. Connect the brake shift interlock actuator and transmission control switch electrical connectors.

   Courtesy of JAGUAR CARS, INC.

5. Connect the drive to fifth switch electrical connector.
NOTE: Fully extend the selector cable, then retract the selector cable one detent.
6. Make sure the selector lever cable is in the "R" position.
7. Make sure the transmission selector lever is in the "R" position.

   Courtesy of JAGUAR CARS, INC.

NOTE: Make sure the selector cable and transmission selector lever have remained in the "R" position.
8. Attach the selector lever cable to the transmission selector lever bracket.

   Courtesy of JAGUAR CARS, INC.

NOTE: Make sure the selector cable and transmission selector lever have remained in the "R" position.
9. Attach the selector lever cable to the transmission selector lever linkage.

   Courtesy of JAGUAR CARS, INC.

NOTE: Make sure the selector cable and transmission selector lever have remained in the "R" position.
10. Adjust the selector lever cable adjustment nuts to lock against the retaining bracket.
    • Do not fully tighten the selector lever cable adjustment nuts.
11. Make sure all transmission selector lever positions select the relevant automatic transmission states.

    Courtesy of JAGUAR CARS, INC.

NOTE: When tightening the selector lever cable adjustment nuts, make sure both adjustment nuts are tightened to the specified torque simultaneously.
12. Tighten the selector lever cable adjustment nuts.
    • Tighten to 20 Nm.
13. Install the floor console. Refer to Instrument Panel and Console article.
