Selector Lever Indicator Assembly - Removal and Installation: Removal

  1. Remove the floor console. Refer to Instrument Panel and Console article.

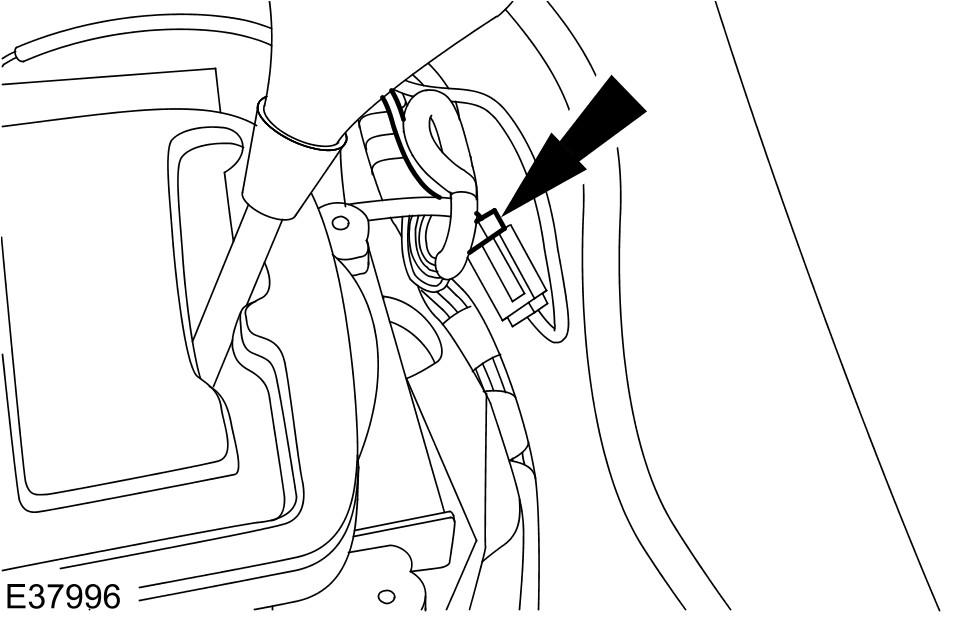

    GJ0002463Courtesy of JAGUAR CARS, INC.
  2. Disconnect the drive to fifth switch electrical connector.
  3. Remove the transmission selector lever knob. Refer to Transmission Selector Lever Knob - Removal and Installation .

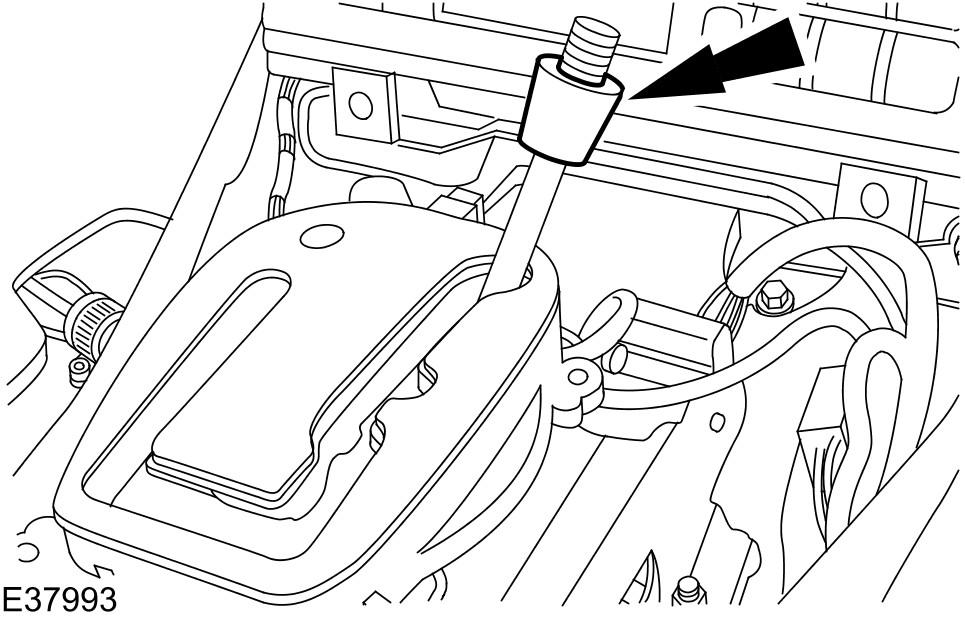

    GJ0002464Courtesy of JAGUAR CARS, INC.
  4. Remove the transmission selector lever knob locking collar.

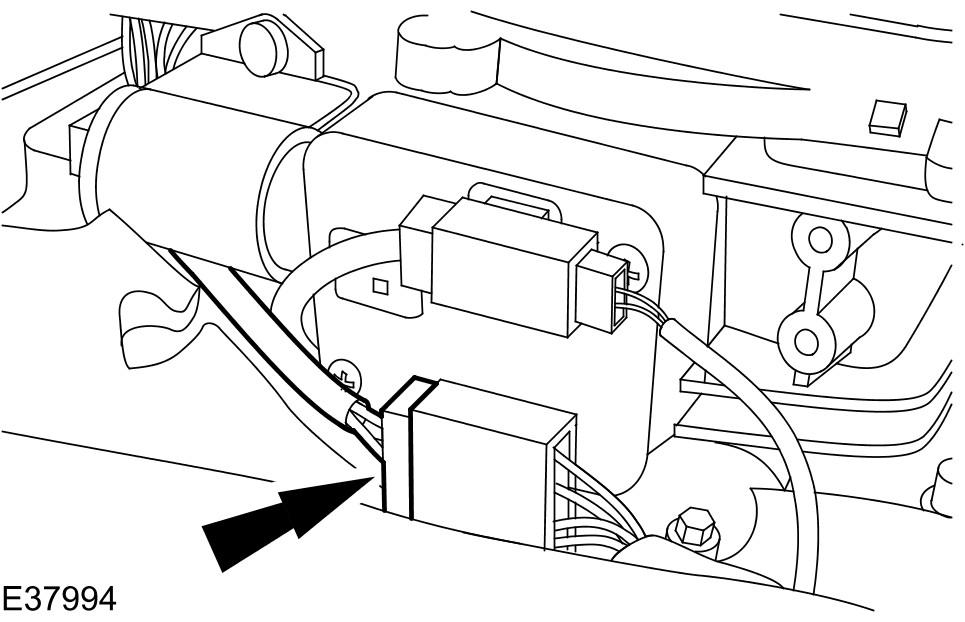

    GJ0002465Courtesy of JAGUAR CARS, INC.
  5. Disconnect the selector lever indicator assembly electrical connector.

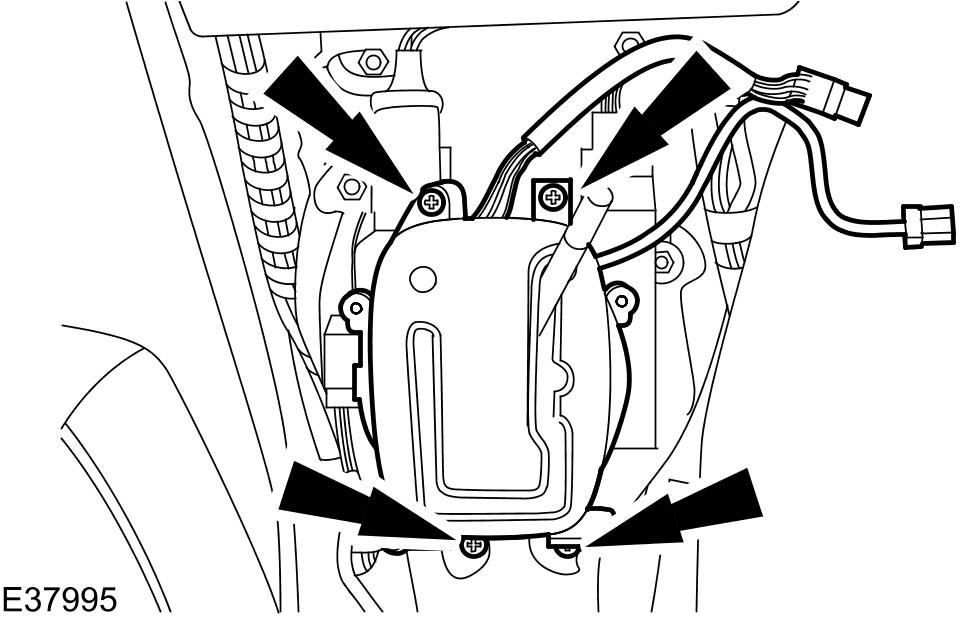

    GJ0002466Courtesy of JAGUAR CARS, INC.
  6. Remove the selector lever indicator assembly.
