Body Processor Module Connector End View

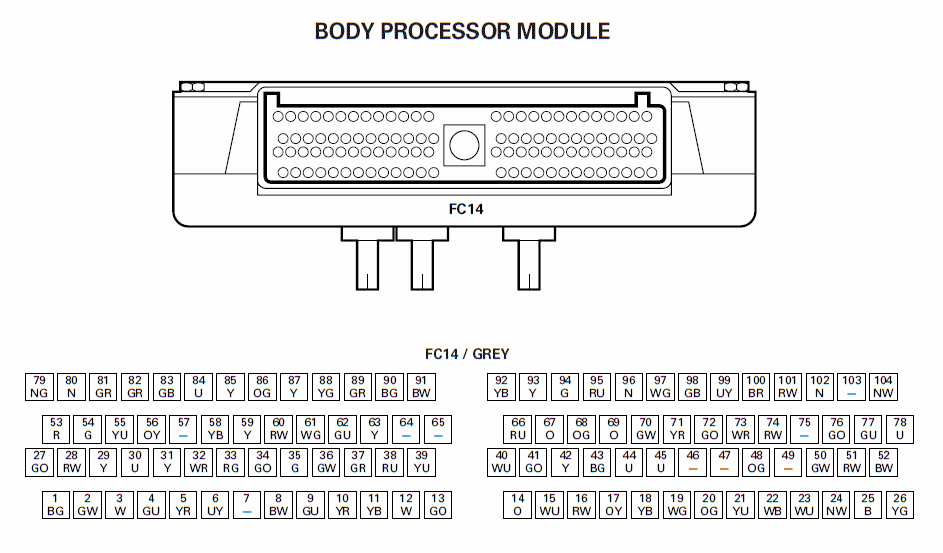

Fig 1: Body Processor Module Connector End View

G00558722

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
