Accelerator Pedal: Removal

Remove the driver side instrument panel lower trim panel.

Fig 1: Removing Driver Side Instrument Panel Lower Trim Panel
Courtesy of JAGUAR CARS, INC.
Detach the accelerator pedal retaining bracket.

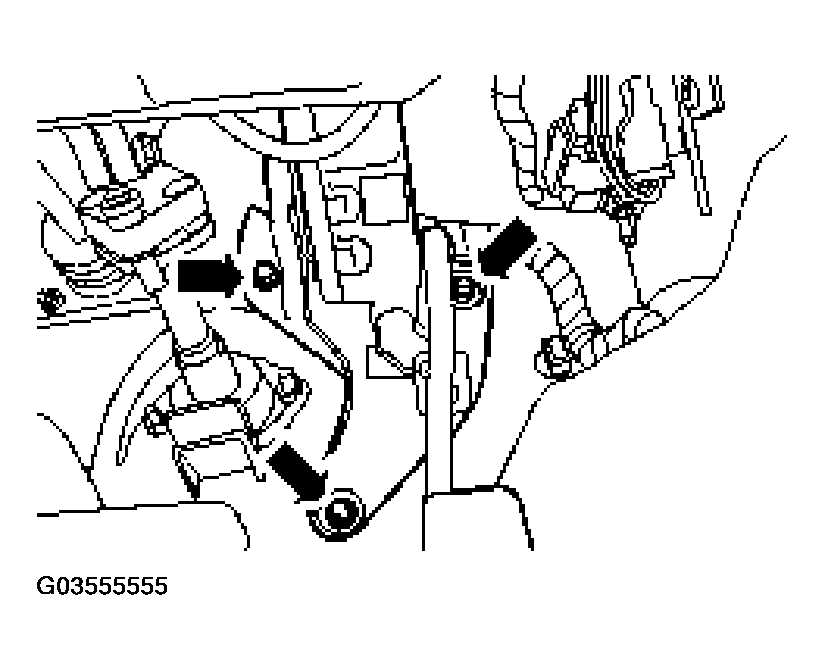

Fig 2: Detaching Accelerator Pedal Retaining Bracket
Courtesy of JAGUAR CARS, INC.
Disconnect the accelerator pedal electrical connector.

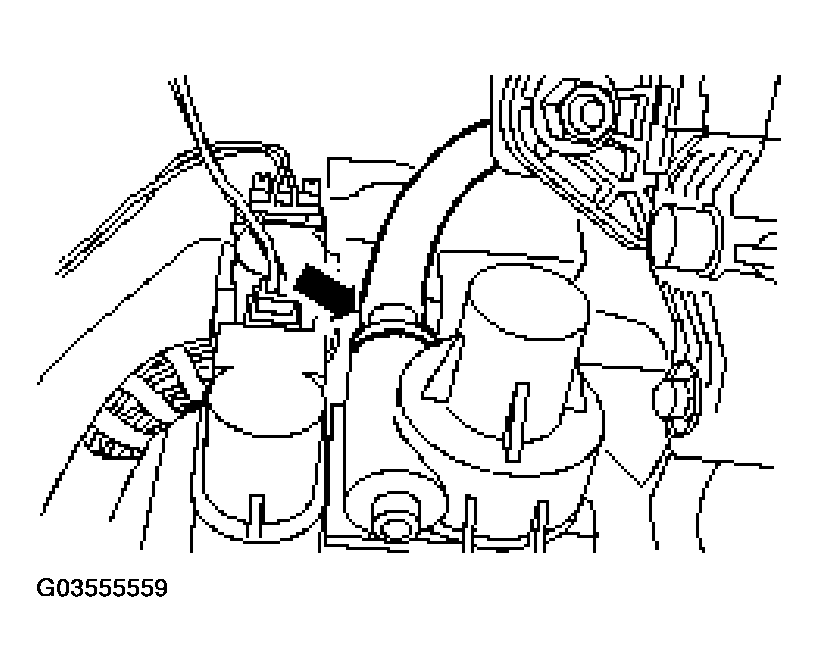

Fig 3: Disconnecting Accelerator Pedal Electrical Connector
Courtesy of JAGUAR CARS, INC.
Detach the accelerator pedal wiring harness.

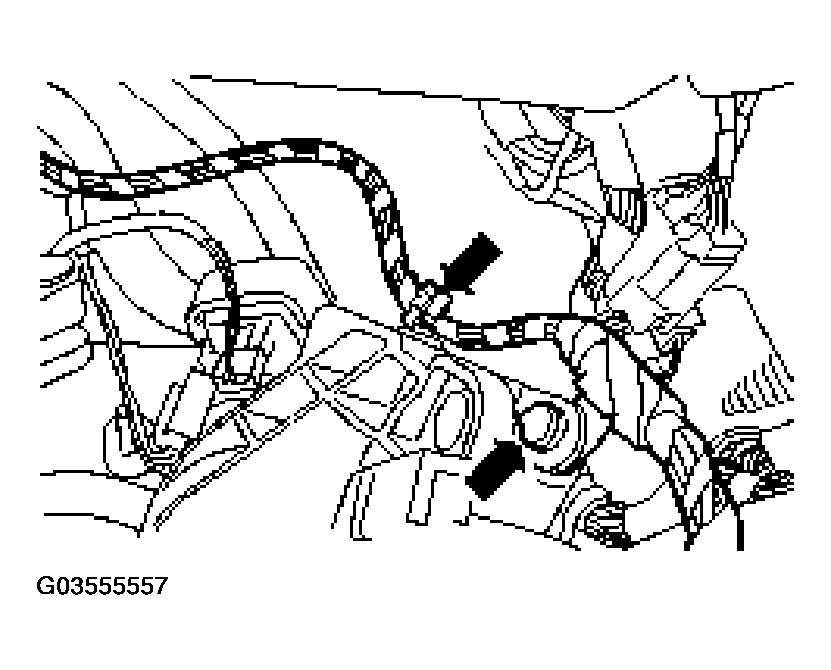

Fig 4: Detaching Accelerator Pedal Wiring Harness
Courtesy of JAGUAR CARS, INC.
Disconnect the electrical connectors.

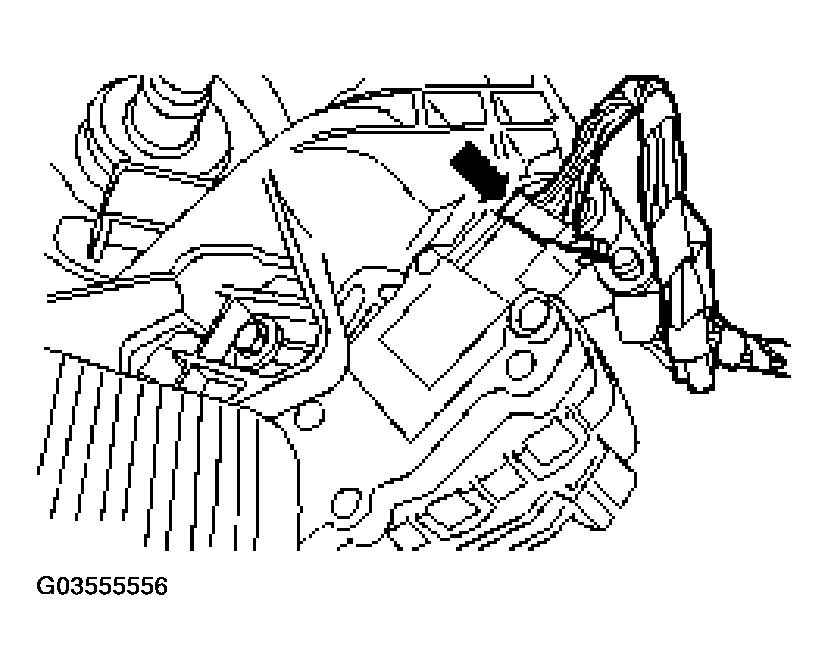

Fig 5: Disconnecting Electrical Connectors
Courtesy of JAGUAR CARS, INC.
Remove the accelerator pedal.
- Disconnect the height adjustable drive cable.

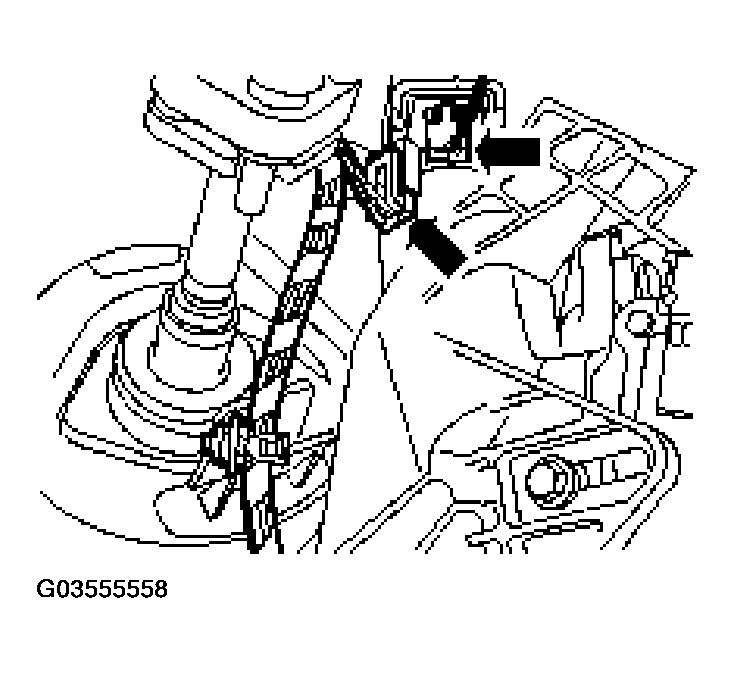

  Fig 6: Disconnecting Height Adjustable Drive Cable
  Courtesy of JAGUAR CARS, INC.
