Engine Control Module Connector End View

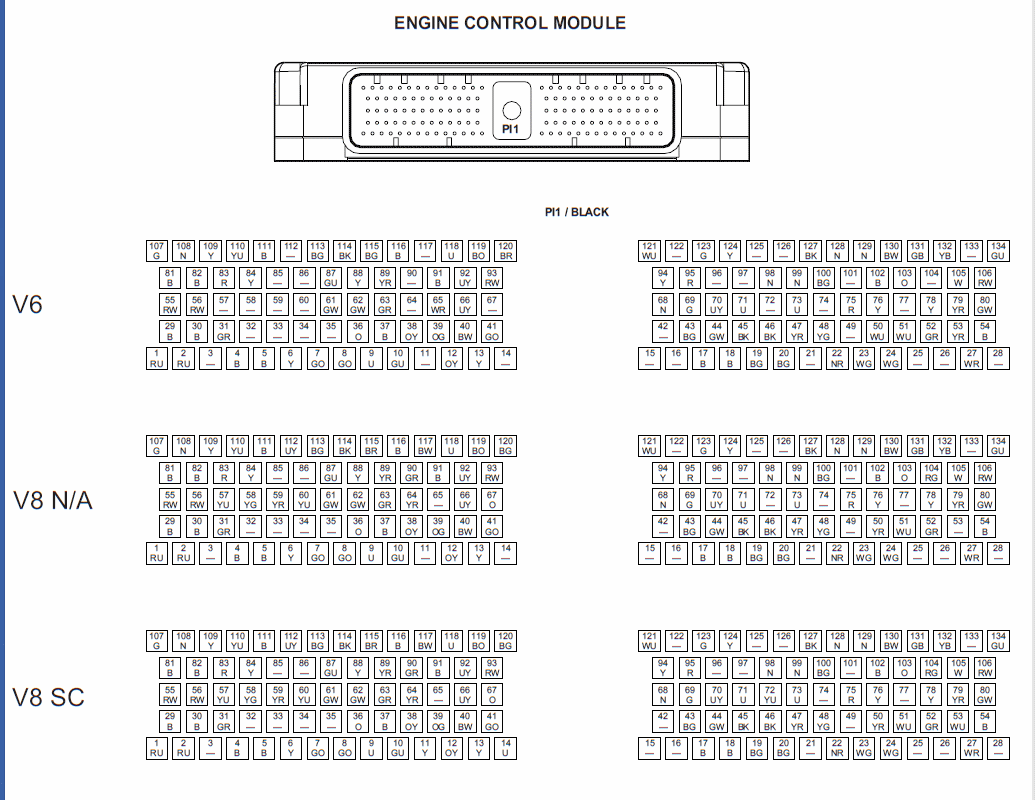

Fig 1: Engine Control Module Connector End View

G00558670

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
