Input Shaft Seal: Removal

  1. Remove the transmission assembly. See REMOVAL & INSTALLATION .
    2. WARNING: Do not let the torque converter drop out of the transmission. Failure to follow this instruction may result in personal injury.
    Fig 1: Removing & Installing Torque Converter
    G00382654Courtesy of JAGUAR CARS, INC.
  2. Using the special tools, remove the torque converter.
    1. Drain any remaining fluid into a suitable container.
    3. CAUTION: Make sure the transmission housing seal face is not damaged when removing the torque converter seal. Failure to follow this instruction may result in damage to the vehicle.

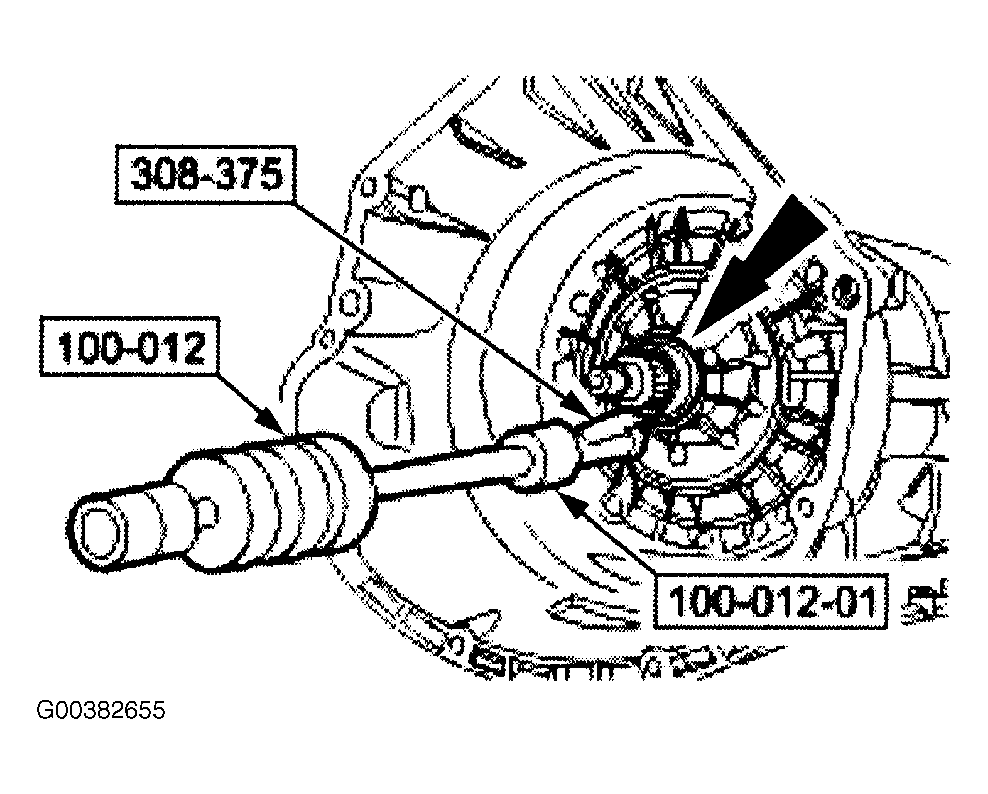

    Fig 2: Removing Input Shaft Seal
    G00382655Courtesy of JAGUAR CARS, INC.
  3. Using the special tools, remove the input shaft seal.
    4. NOTE: Using a suitable metal surface cleaner meeting Jaguar specification. clean the seal face on the housing before fitting the new seal.

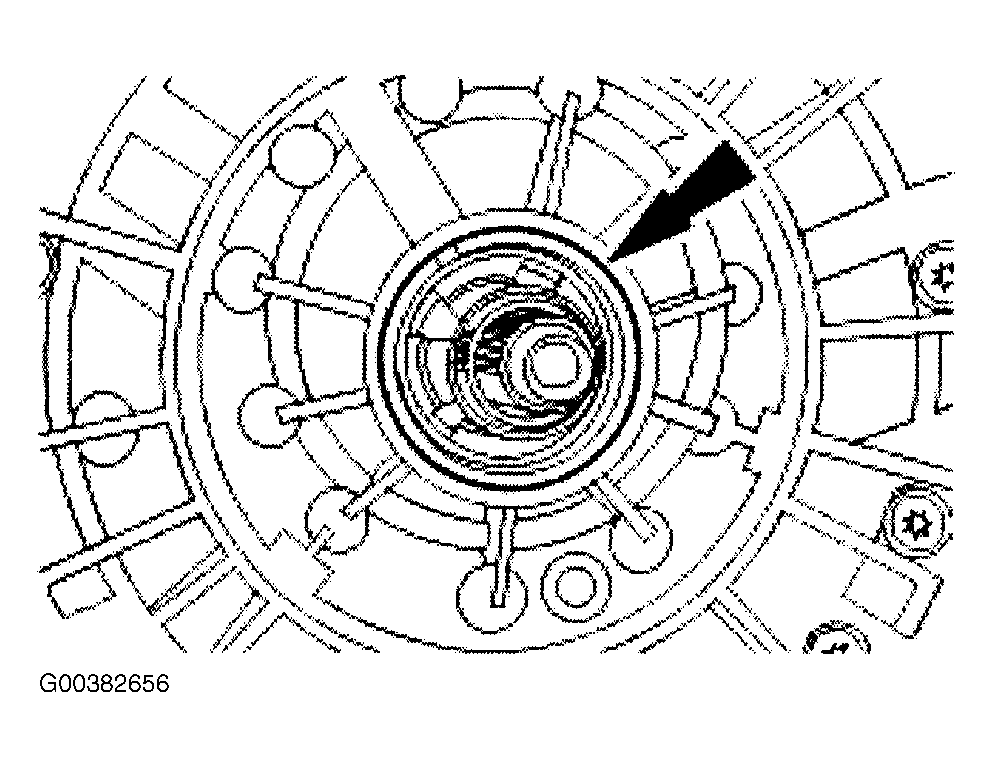

    Fig 3: Cleaning & Inspecting Transmission Housing Seal Face
    G00382656Courtesy of JAGUAR CARS, INC.
  4. Clean and inspect the transmission housing seal face.
