Transmission Control Switch Adjustment - General Procedures

  1. Remove the floor console. Refer to Instrument Panel and Console article.
  2. Turn the ignition switch to the ON position
  3. Move the transmission selector lever to the "R" position.

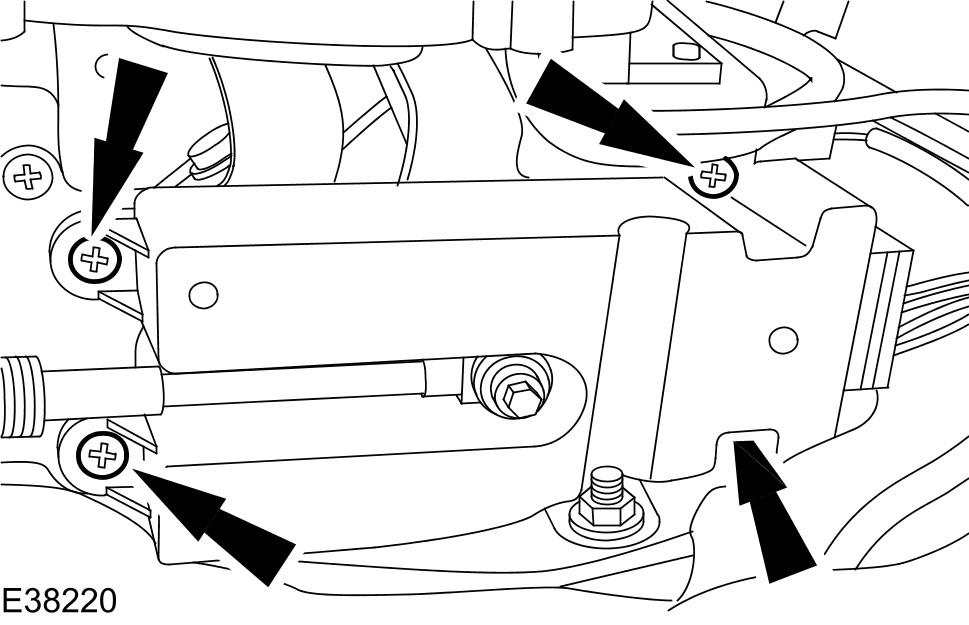

    GJ0002471Courtesy of JAGUAR CARS, INC.
  4. Loosen the transmission control switch retaining screws.

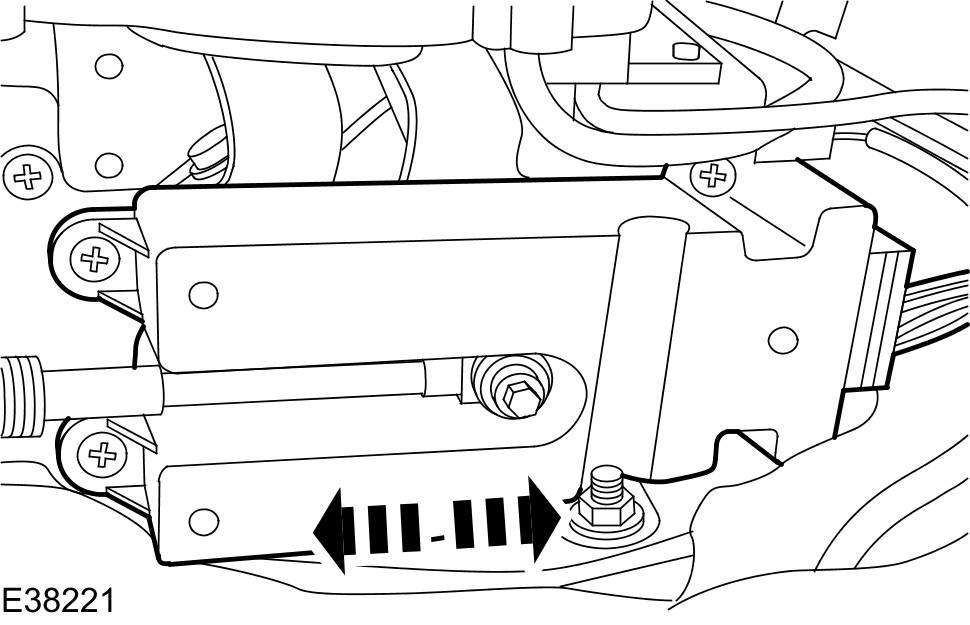

    GJ0002472Courtesy of JAGUAR CARS, INC.
  5. Adjust the transmission control switch until the "R" position of the selector lever indicator is illuminated.
    GJ0002471Courtesy of JAGUAR CARS, INC.
  6. Tighten the transmission control switch retaining screws.
  7. Make sure all transmission selector lever positions illuminate the relevant transmission selector lever indicator positions.
  8. Make sure the engine starts when the transmission selector lever is in the "P" and "N" positions.
  9. Install the floor console. Refer to Instrument Panel and Console article.
