Oil Pressure Switch - In-Vehicle Procedures: Notes

  1. Raise and support the vehicle. Refer to Jacking and Lifting .
    GJ0002301Courtesy of JAGUAR CARS, INC.

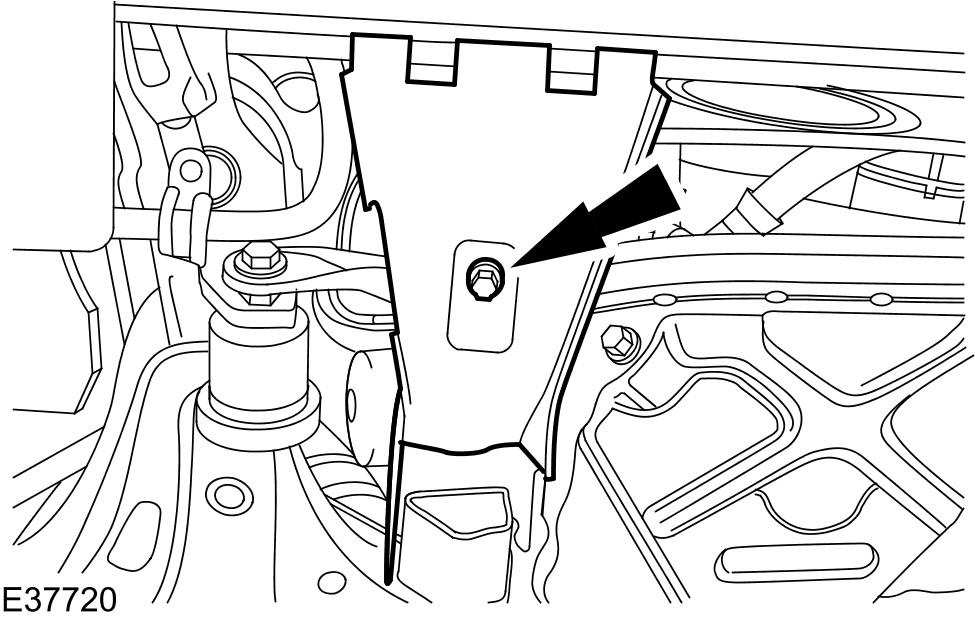

  2. Remove the generator lower cooling duct.
    GJ0002634Courtesy of JAGUAR CARS, INC.

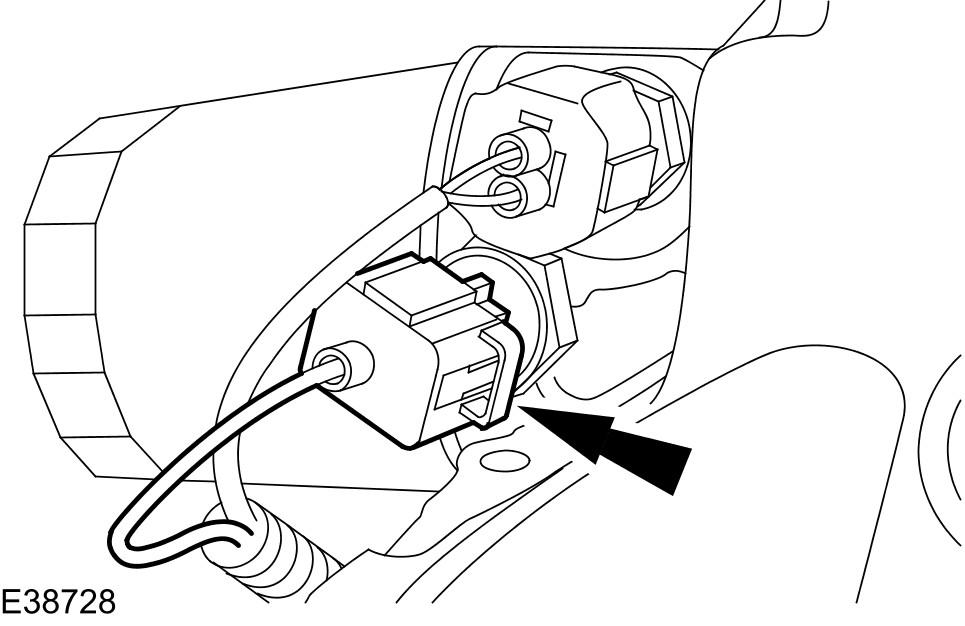

  3. Disconnect the oil pressure switch electrical connector.
    GJ0002635Courtesy of JAGUAR CARS, INC.
  4. Remove the oil pressure switch.
