Engine Mount LH - In-Vehicle Procedures: Removal

All vehicles

1. Raise and support the vehicle. Refer to Identification Codes .
NOTE: Right hand shown left hand similar.
2. Remove both engine mount lower retaining bolts.

   Courtesy of JAGUAR CARS, INC.

Vehicles with convertible top

3. Remove the radiator splash shield. Refer to Front End Body Panels .
4. Remove the underbody front cross brace.

   Courtesy of JAGUAR CARS, INC.

Left-hand drive vehicles

5. Remove the steering column lower shaft pinch bolt.

   Courtesy of JAGUAR CARS, INC.

6. Detach the steering column lower shaft.

   Courtesy of JAGUAR CARS, INC.

7. Detach the steering gear.
   • Using suitable tie straps support the steering gear.

     Courtesy of JAGUAR CARS, INC.

All vehicles

8. Lower the vehicle.
9. Install the front engine lifting bracket.

   Courtesy of JAGUAR CARS, INC.

10. Install the front engine lifting bracket.

    Courtesy of JAGUAR CARS, INC.

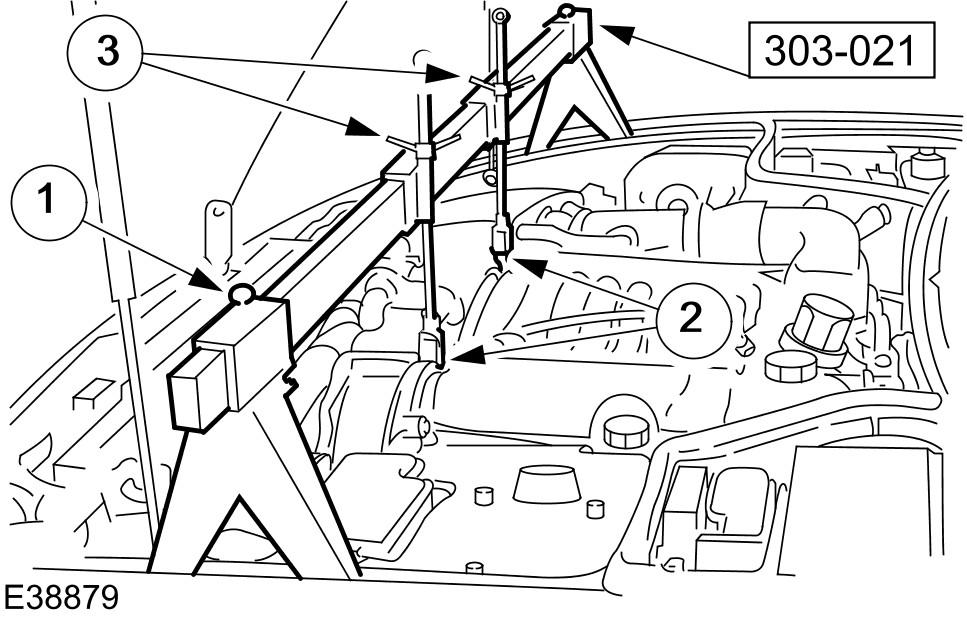

11. Using the special tool support the weight of the engine.
    1. Position the special tool to the fender channels and tighten beam fixings.
    2. Attach the hooks to the engine front lifting brackets.
    3. Tighten the hook adjustment nuts until the weight of the engine is supported.

       Courtesy of JAGUAR CARS, INC.

12. Raise the vehicle.
NOTE: Right-hand shown left-hand similar.

Courtesy of JAGUAR CARS, INC.

13. Remove the engine mount.
