Restraints Control Module Connector End View
Restraints Control Module Connector End View

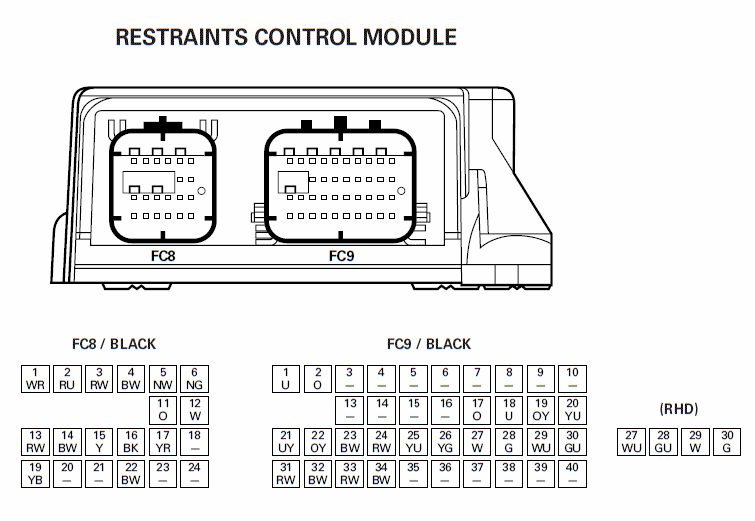

Fig 1: Restraints Control Module Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
