Rear Climate Control Module (2004) Connector End View

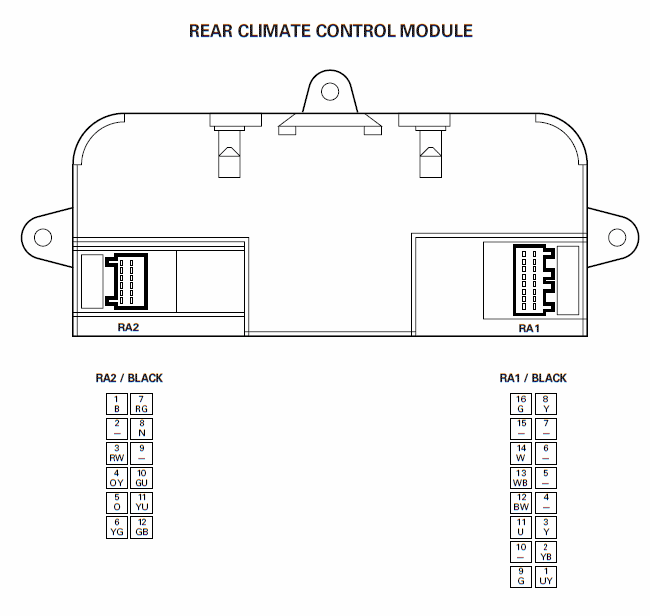

Fig 1: Rear Climate Control Module (2004) Connector End View

G00558675

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
