Instrument Cluster Connector End View
Instrument Cluster Connector End View

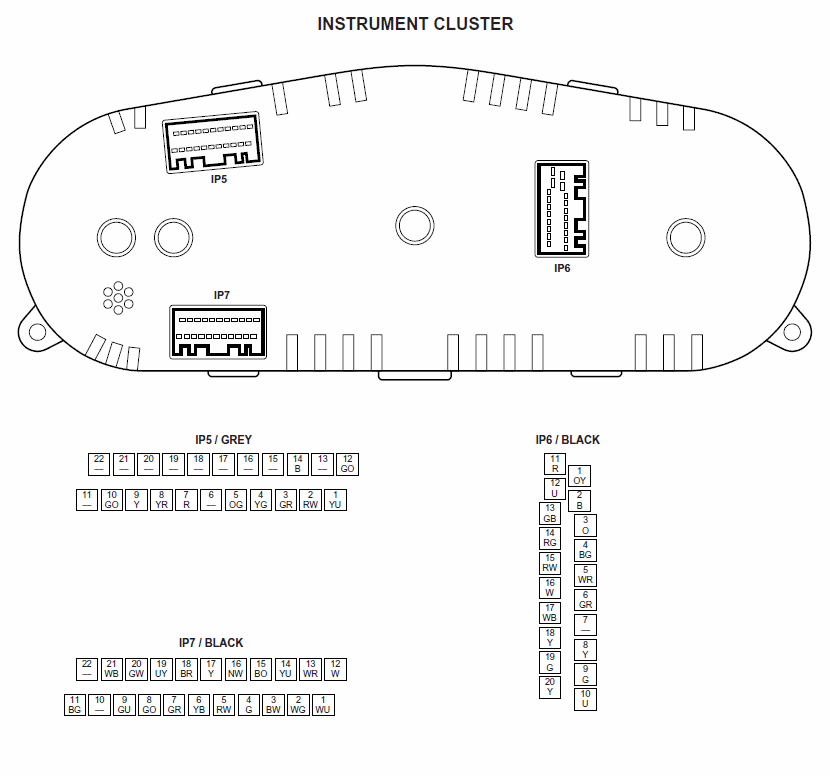

Fig 1: Instrument Cluster Connector End View
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
