Air Suspension Module Connector End View

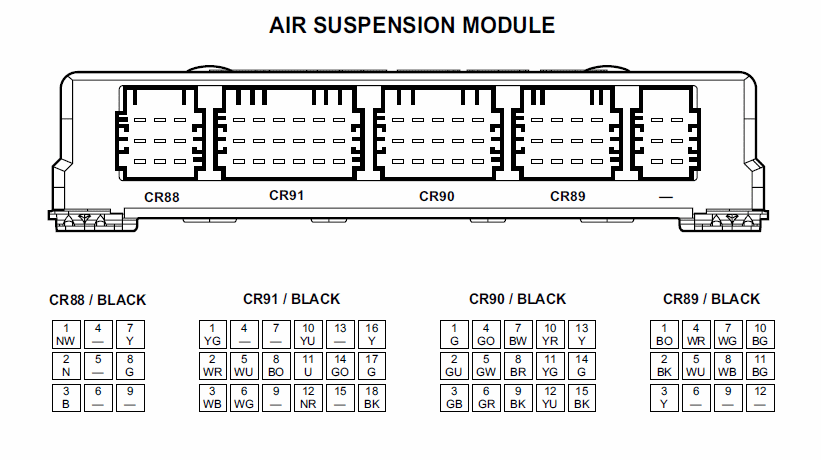

Fig 1: Air Suspension Module Connector End View

G00558664

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
