Component Locations

COMPONENT LOCATIONS

Component Location
A/C Pressure Transducer On A/C Compressor Outlet Line. See Fig 1 .
Cooling Fan On Rear Of Radiator Assembly. See Fig 2 or Fig 3 .
Engine Coolant Temperature (ECT) Sensor Top, Front Of Engine. See Fig 4 or Fig 5 .
Engine Control Module (ECM) In Right Rear Of Engine Compartment. See Fig 6 .
Engine Management Relay In Front Power Distribution Fuse Box, Left Front Of Engine Compartment. See Fig 6 .
Transmission Oil Temperature Sensor Located In Main Control Valve Body, In The Transmission. See Fig 7 .

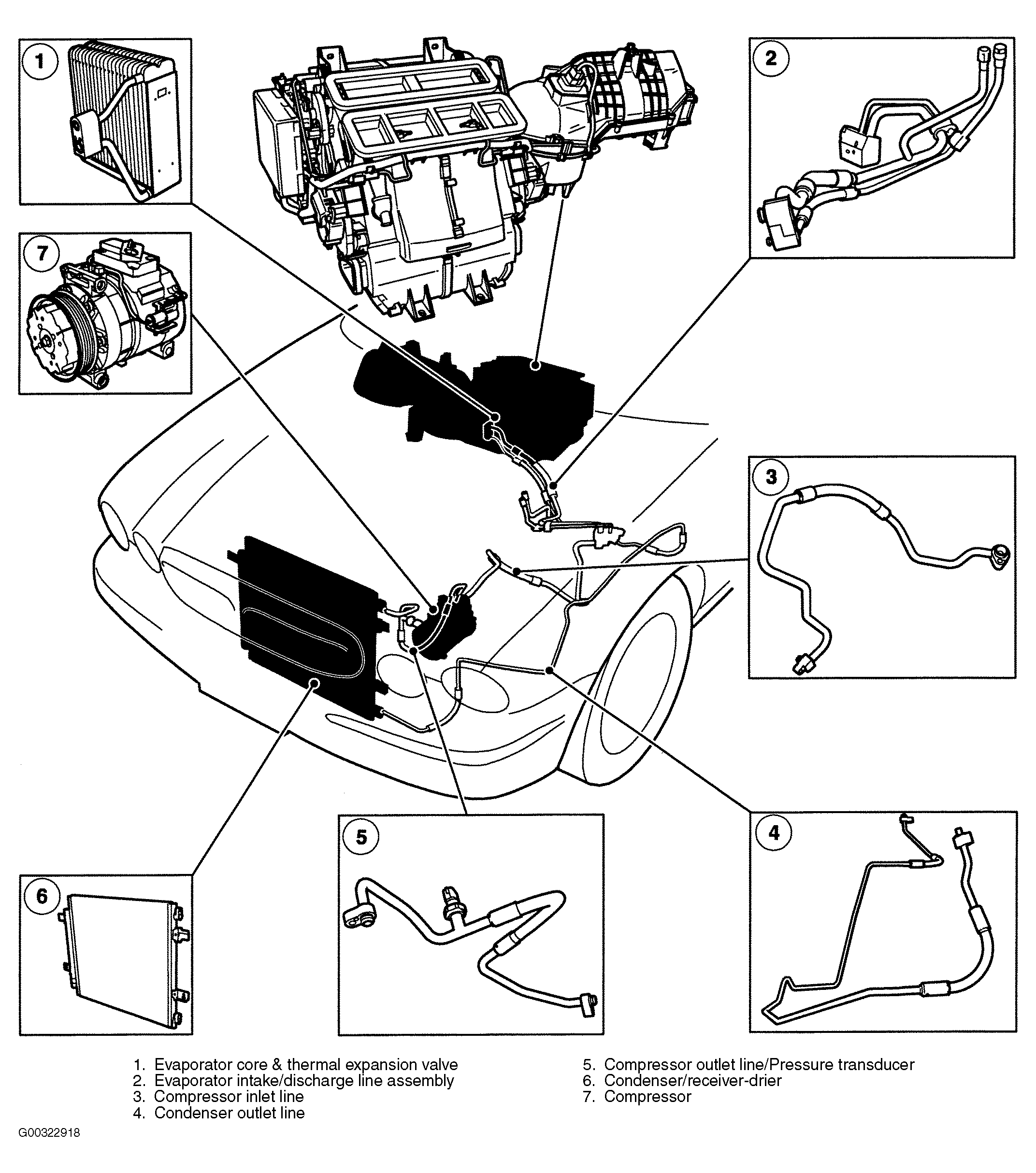

Fig 1: Locating A/C Pressure Transducer
G00322918Courtesy of JAGUAR CARS, INC.

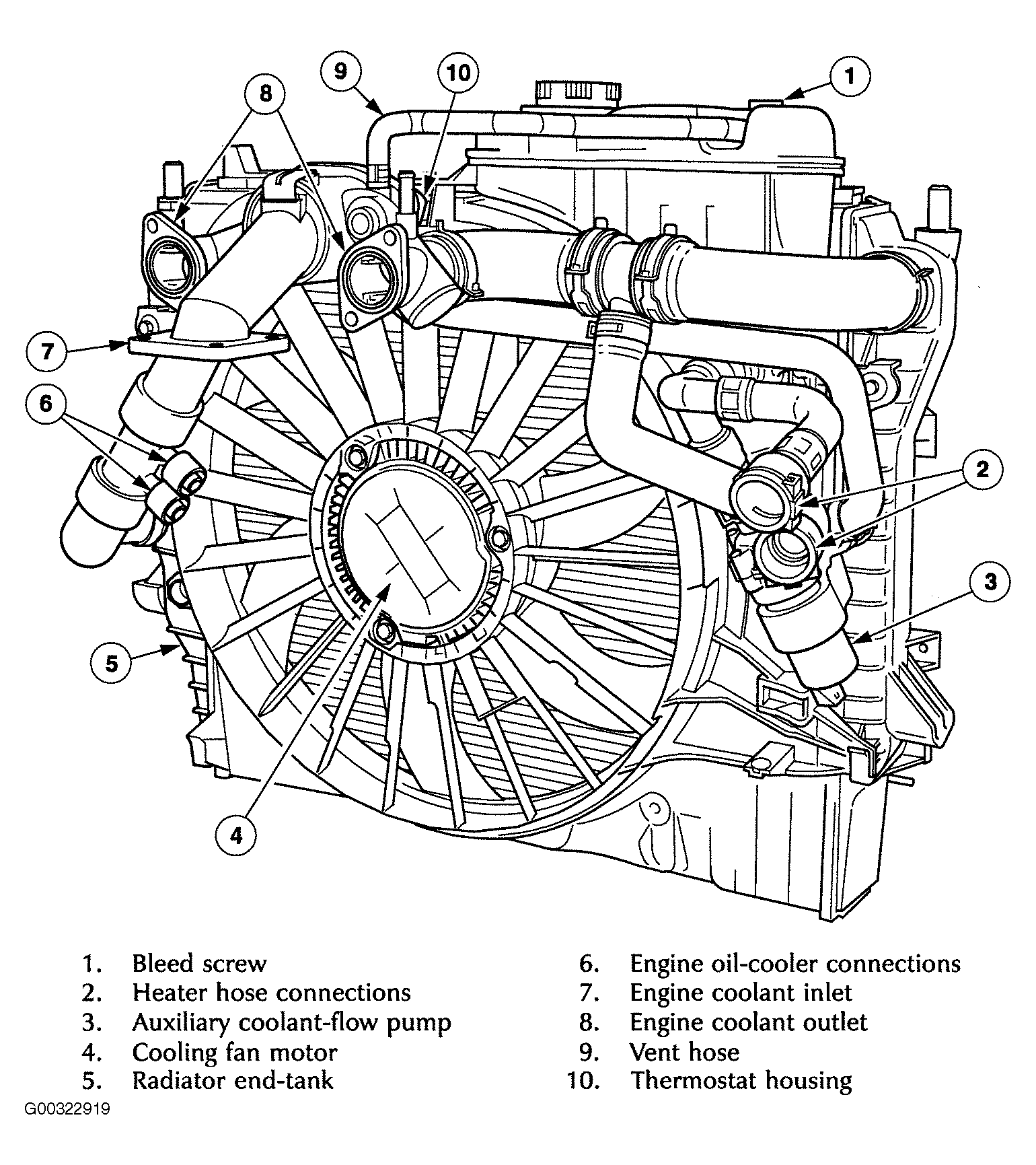

Fig 2: Locating Cooling Fan (Non-Supercharged)
G00322919Courtesy of JAGUAR CARS, INC.

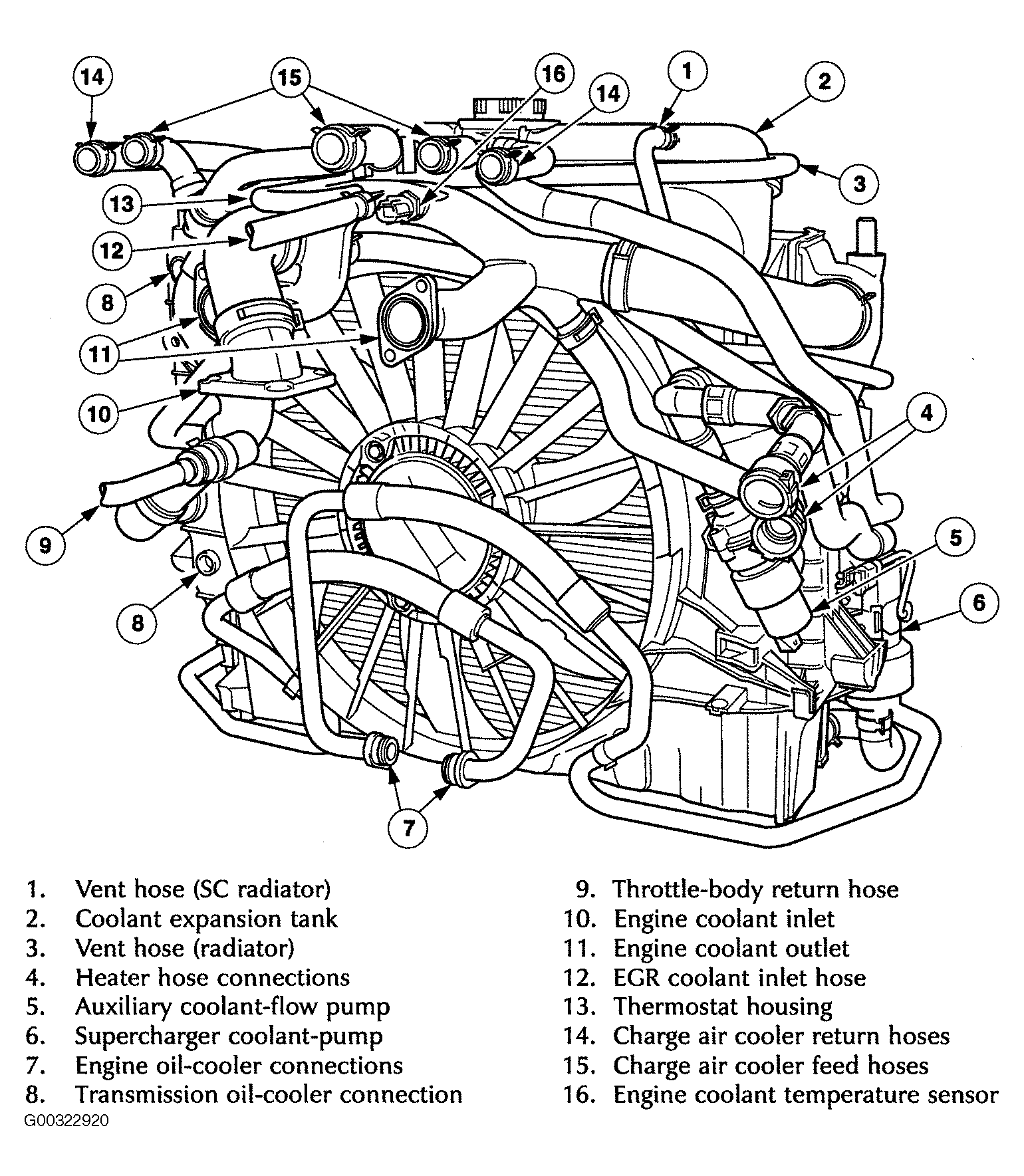

Fig 3: Locating Cooing Fan (Supercharged)
G00322920Courtesy of JAGUAR CARS, INC.

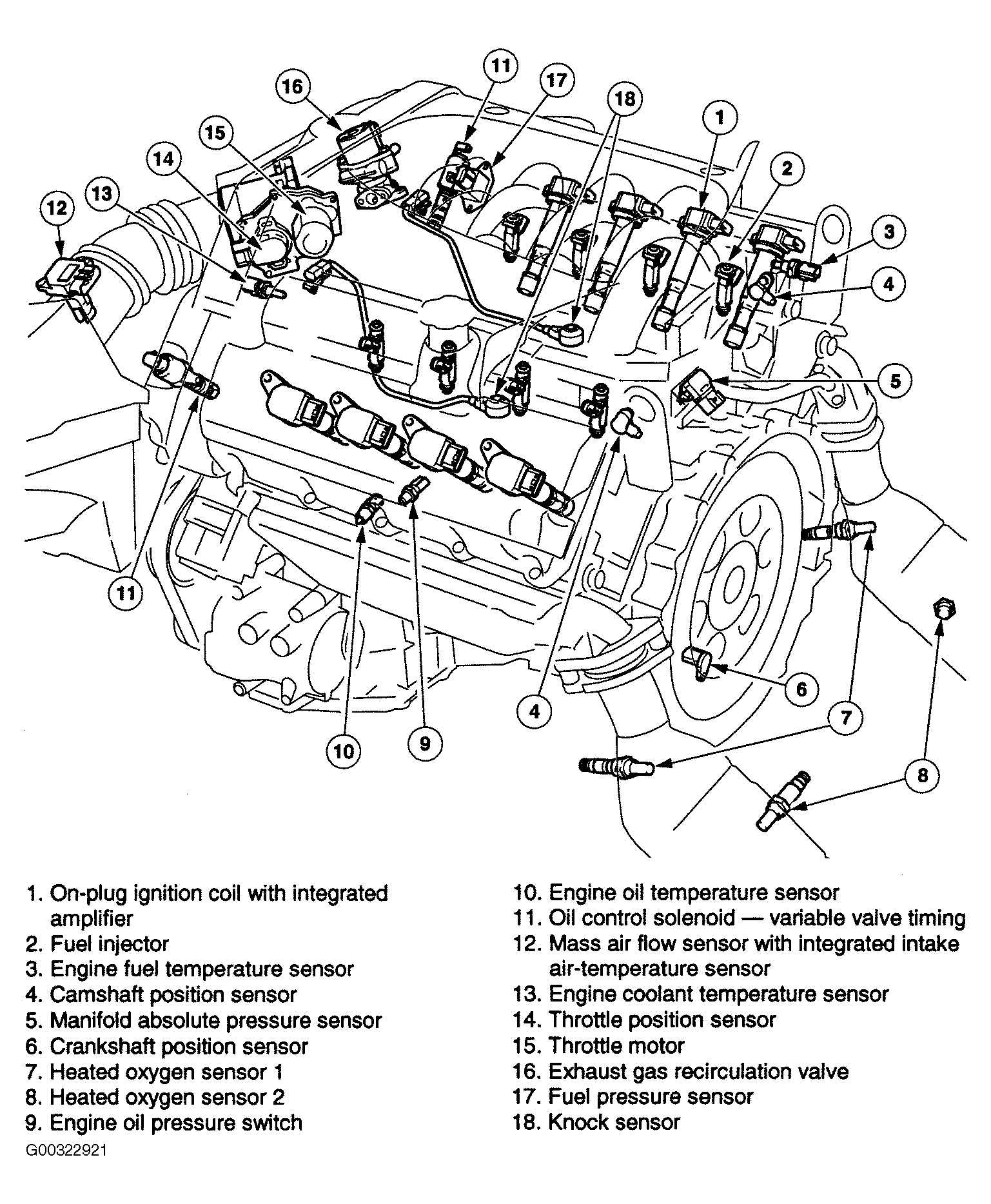

Fig 4: Locating Engine Coolant Temperature (ECT) Sensor (Non-Supercharged)
G00322921Courtesy of JAGUAR CARS, INC.

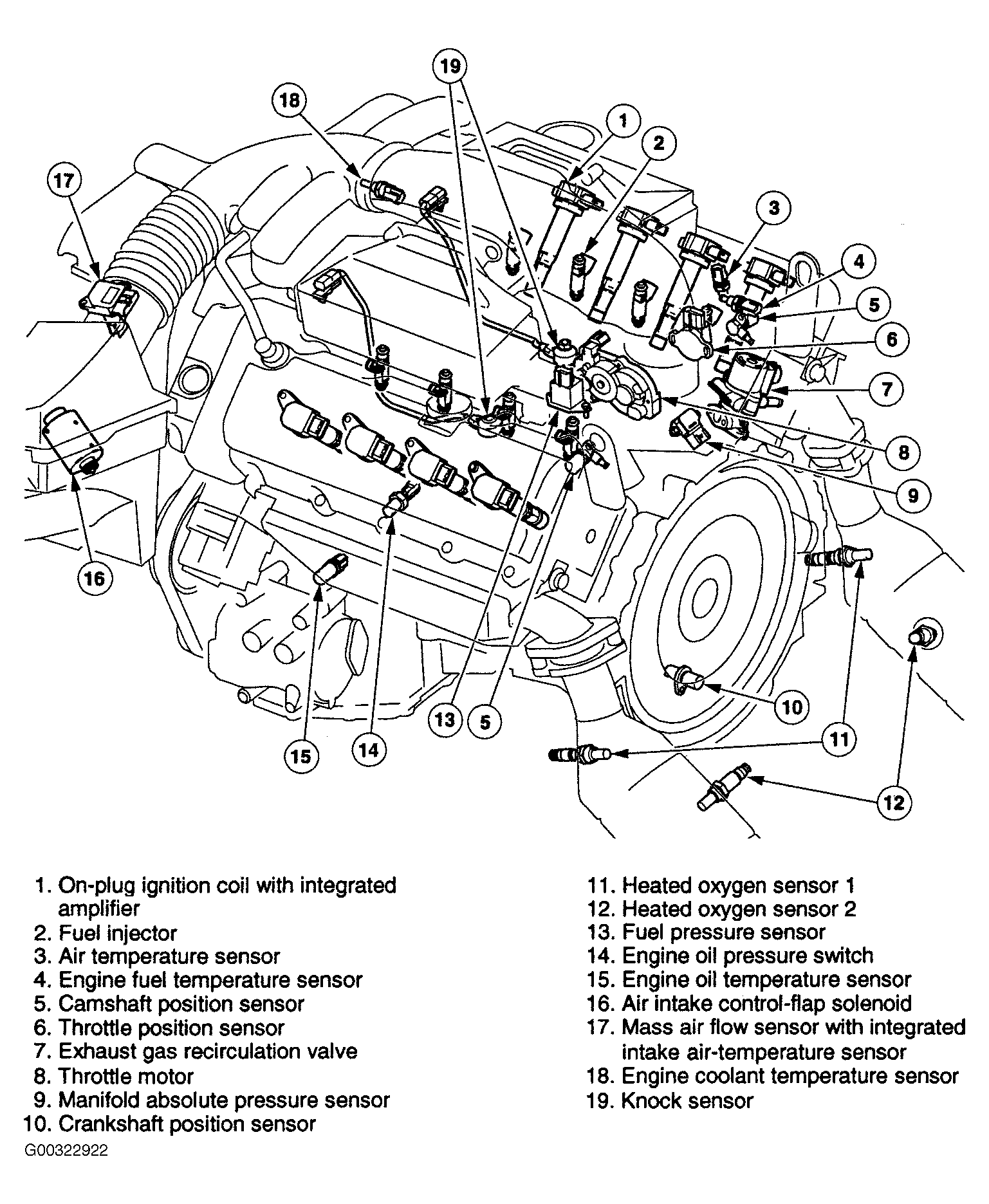

Fig 5: Locating Engine Coolant Temperature (ECT) Sensor (Supercharged)
G00322922Courtesy of JAGUAR CARS, INC.

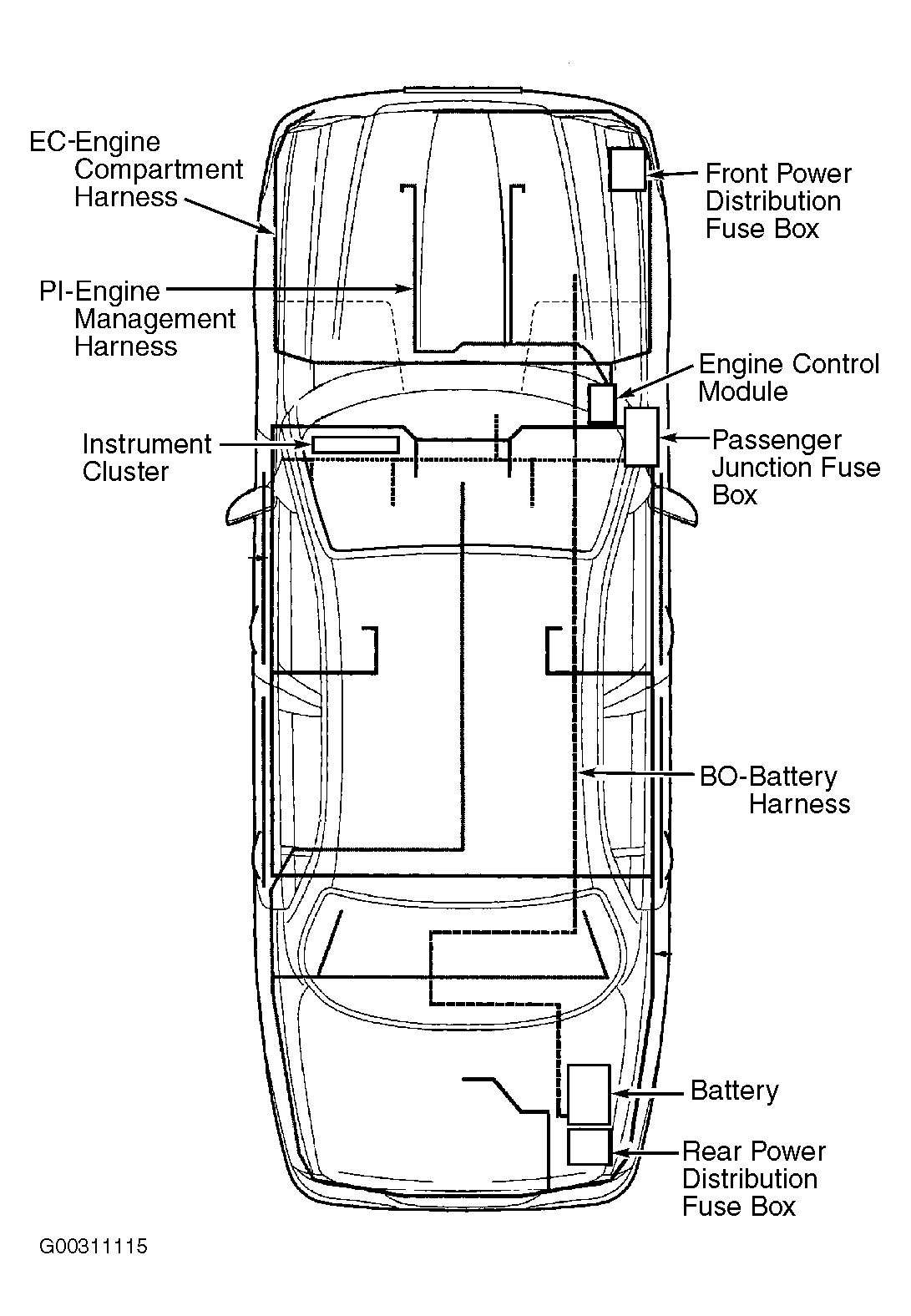

Fig 6: Locating ECM & Power Distribution Fuse Boxes
G00311115Courtesy of JAGUAR CARS, INC.

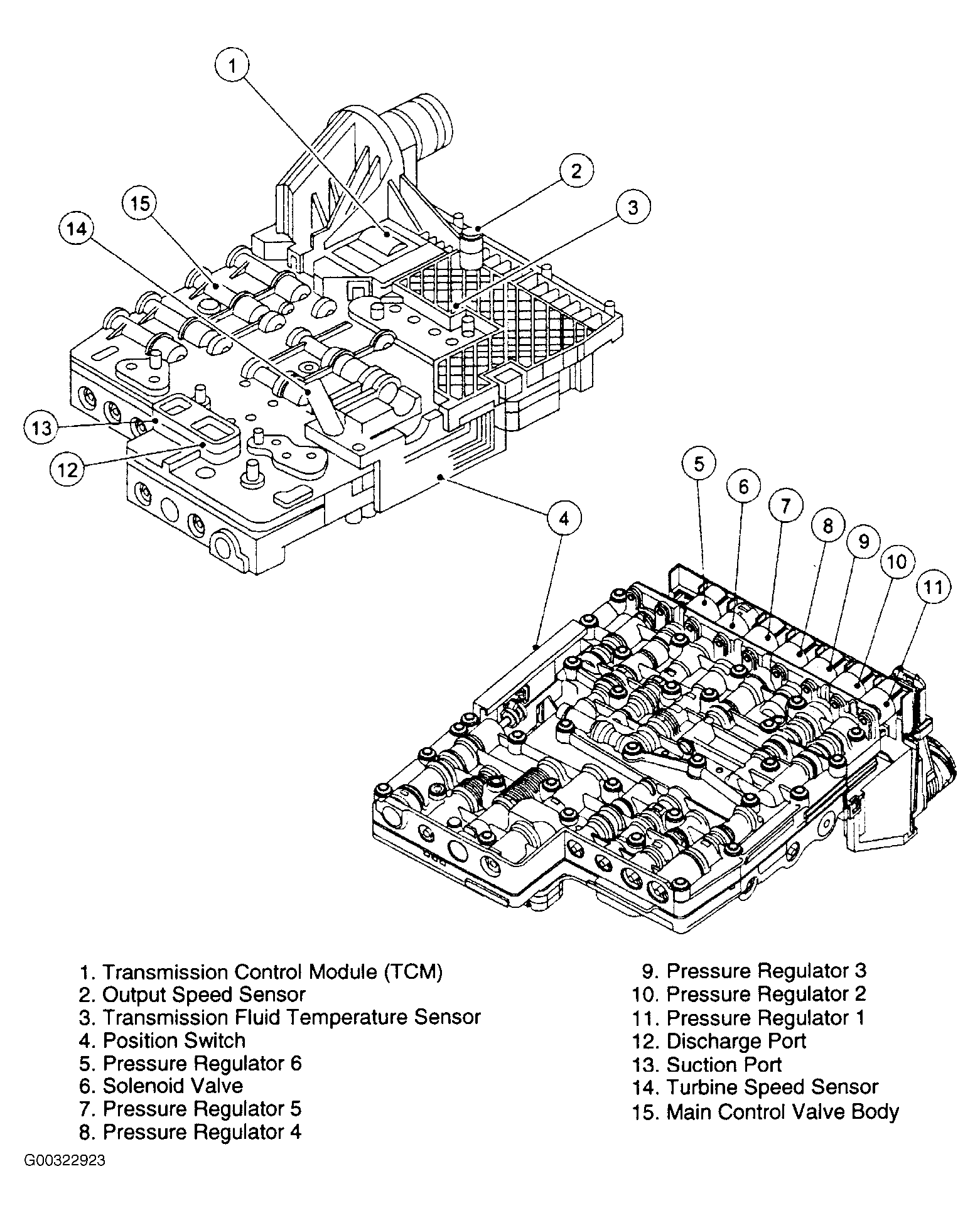

Fig 7: Locating Transmission Fluid Temperature Sensor
G00322923Courtesy of JAGUAR CARS, INC.
