External Controls - Description & Operation: Notes

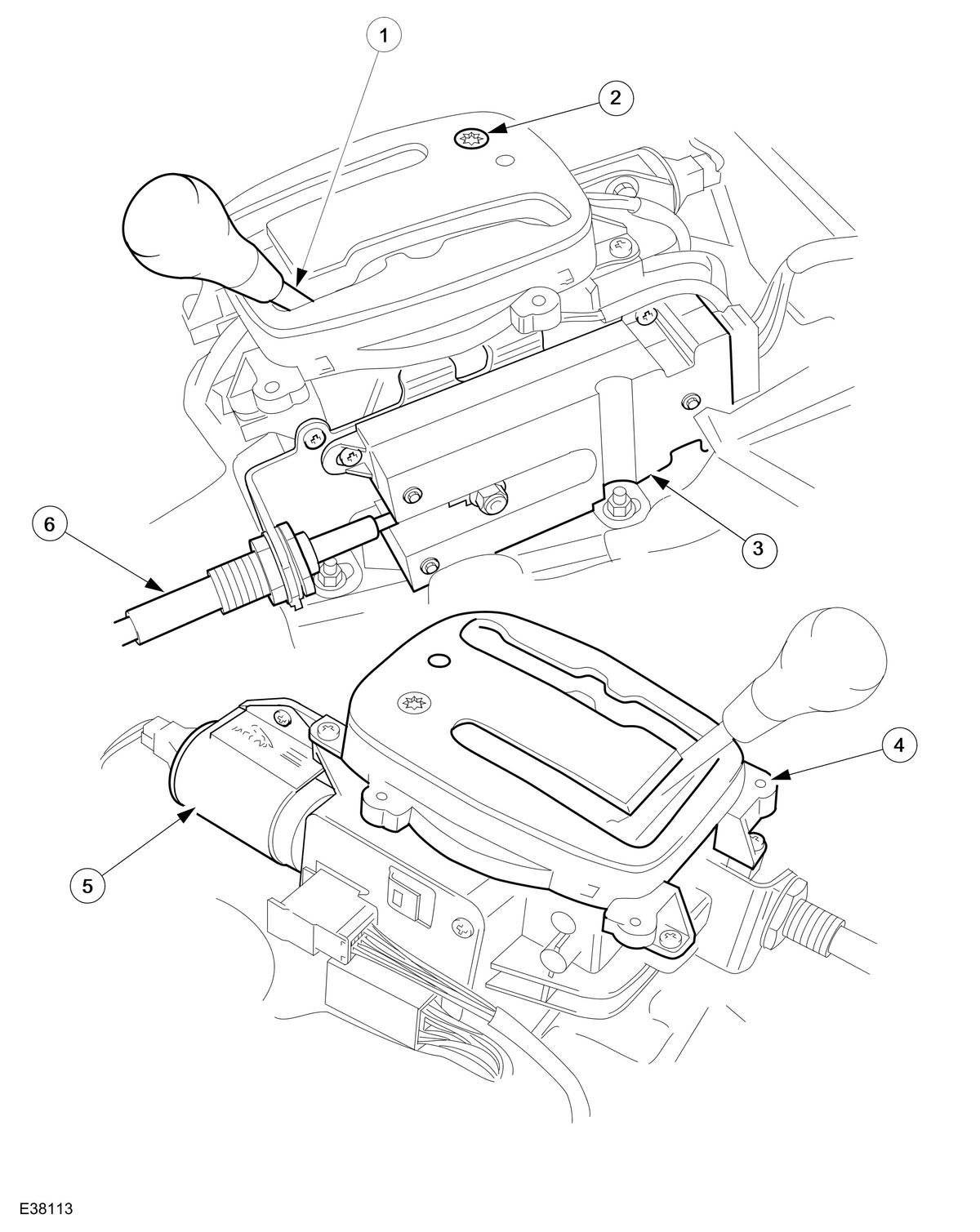

Fig 1: Transmission Selector Lever
GJ0002449Courtesy of JAGUAR CARS, INC.
Item Number Description
1 Transmission selector lever
2 Brake shift interlock actuator manual override access
3 Transmission control switch
4 Selector lever indicator assembly
5 Brake shift interlock actuator
6 Selector lever cable and bracket
