Exhaust Manifold RH - In-Vehicle Procedures: Installation

All vehicles

CAUTION: Make sure exhaust manifold and heat shield/gasket is correctly aligned to cylinder head and studs.
CAUTION: When all retaining nuts have been torqued, re-torque all retaining nuts to 25 Nm.

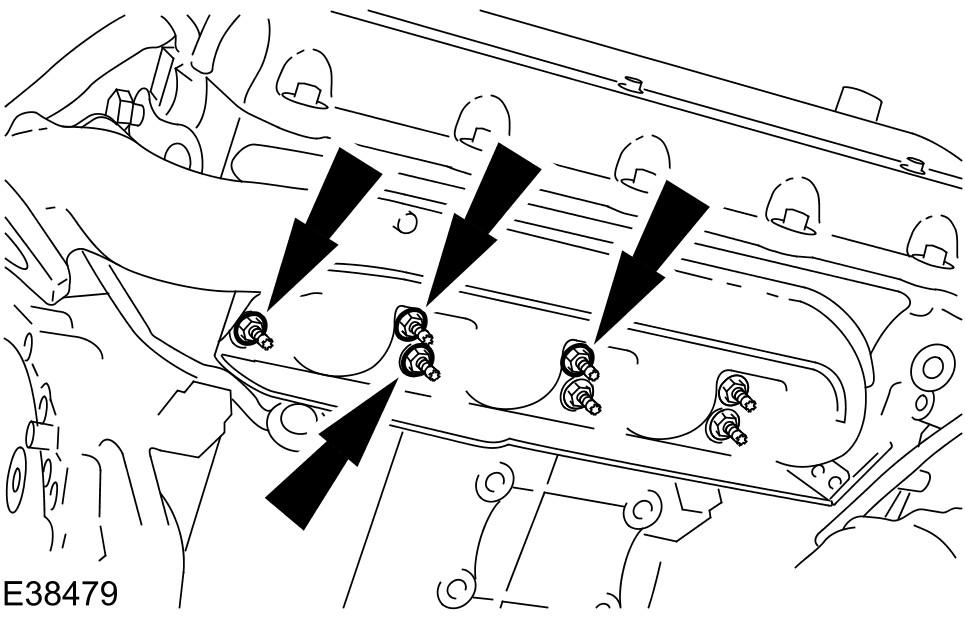

1. Install the exhaust manifold.
   • Install new retaining nuts and a new heat shield/gasket.
   • Tighten to 25 Nm.

     Courtesy of JAGUAR CARS, INC.

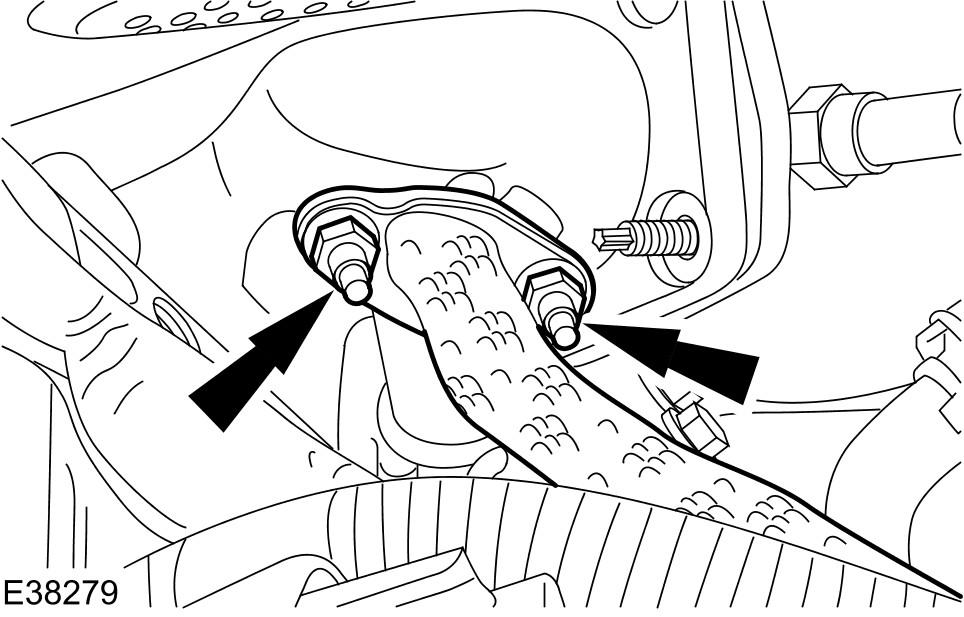

2. Attach the exhaust manifold to EGR valve tube retaining nuts.
   • Install new retaining nuts and a new gasket.
   • Tighten to 22 Nm.

     Courtesy of JAGUAR CARS, INC.

3. Install the air cleaner. Refer to Intake Air Distribution and Filtering .
4. Raise the vehicle.

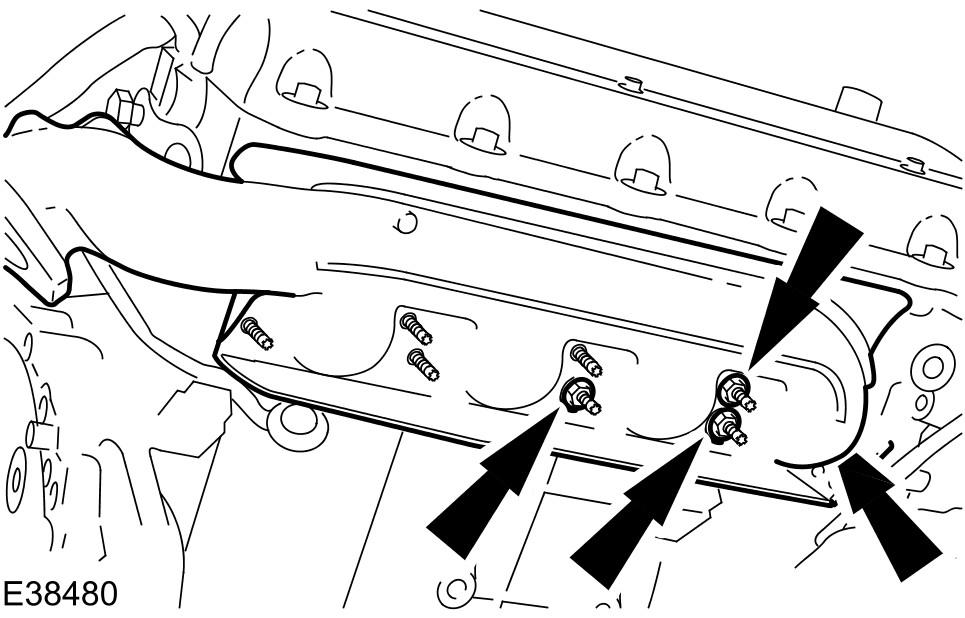

CAUTION: When all retaining nuts have been torqued, re-torque all retaining nuts to 25 Nm.
5. Tighten to 25 Nm.
   • Install new retaining nuts.

     Courtesy of JAGUAR CARS, INC.

Right-hand drive vehicles

6. Install the steering gear. Refer to Power Steering .

All vehicles

7. Install the right-hand catalytic converter. Refer to Exhaust System .
