Engine Compartment Fuse/Relay Locations: Notes

Engine compartment fuse and relay boxes are located in the left front and left and right bulkhead enclosures of the engine compartment. See Fig 1 .

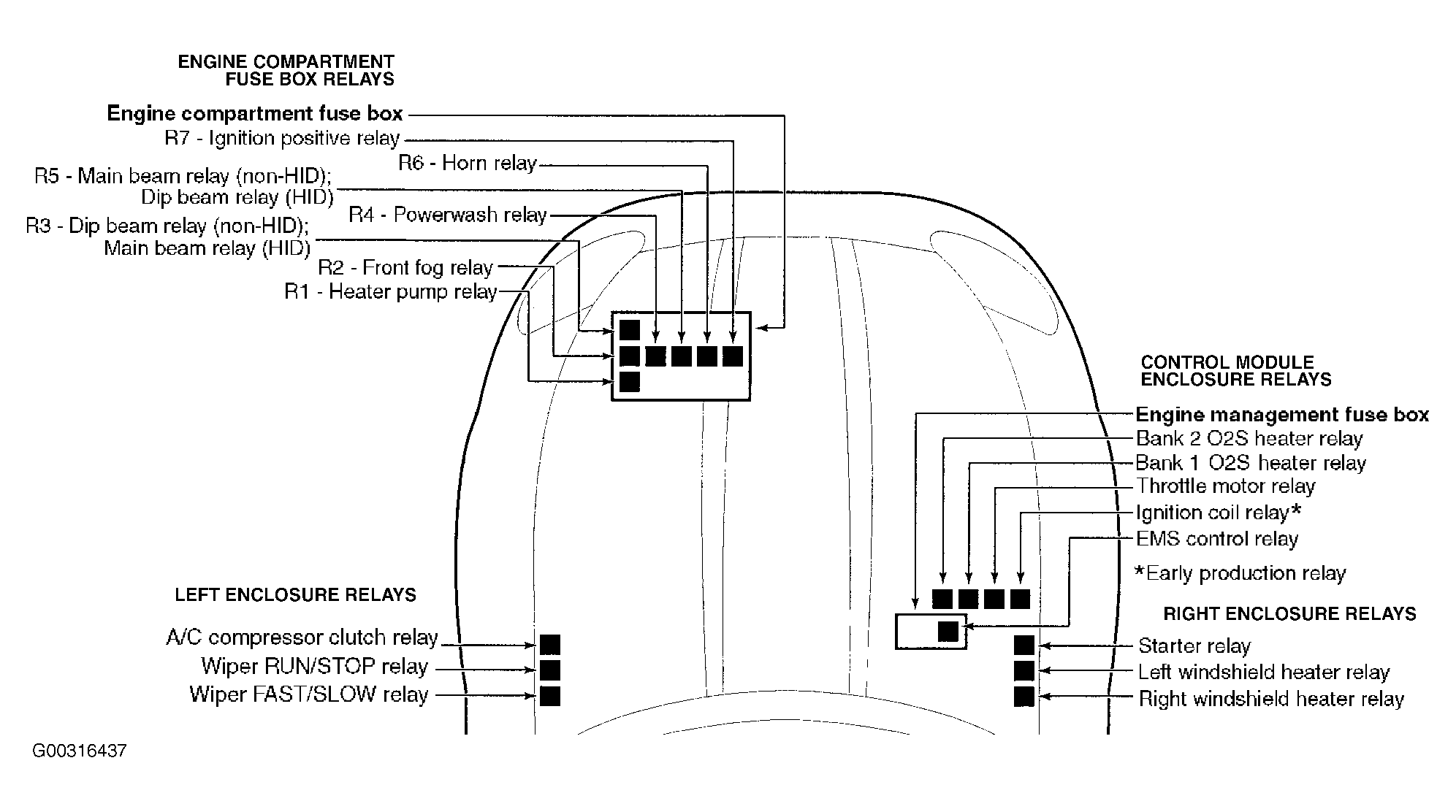

Fig 1: Identifying Engine Compartment Fuse/Relay Locations

Courtesy of JAGUAR CARS, INC.
