Cooling System Flushing - General Procedures

All vehicles

1. Remove the thermostat. Refer to Thermostat - Removal and Installation (Vehicles Without: Supercharger)  or Thermostat - Removal and Installation (Vehicles With: Supercharger) .

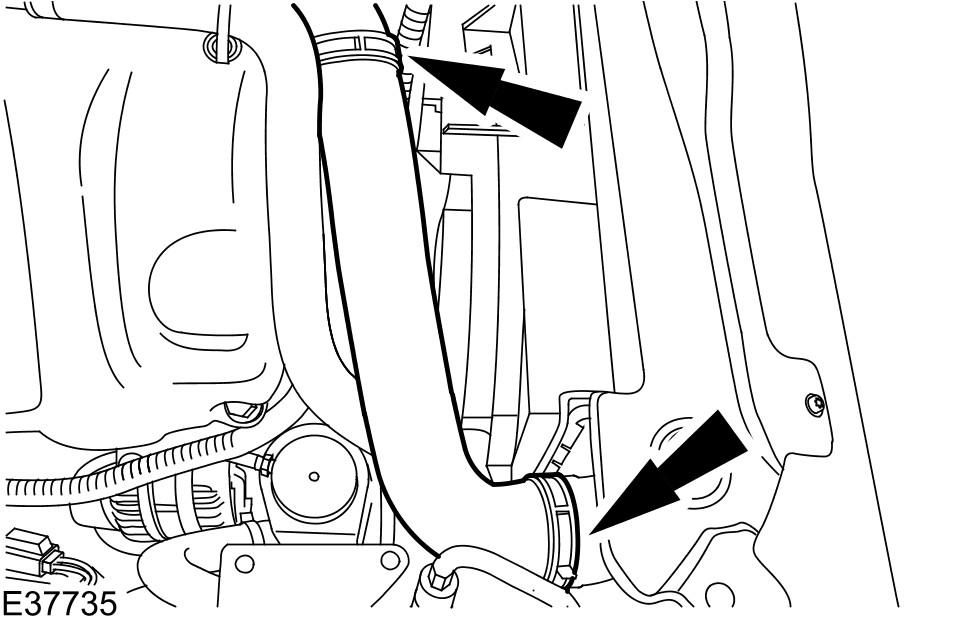

Vehicles without supercharger

Courtesy of JAGUAR CARS, INC.

1. Remove the radiator hose.

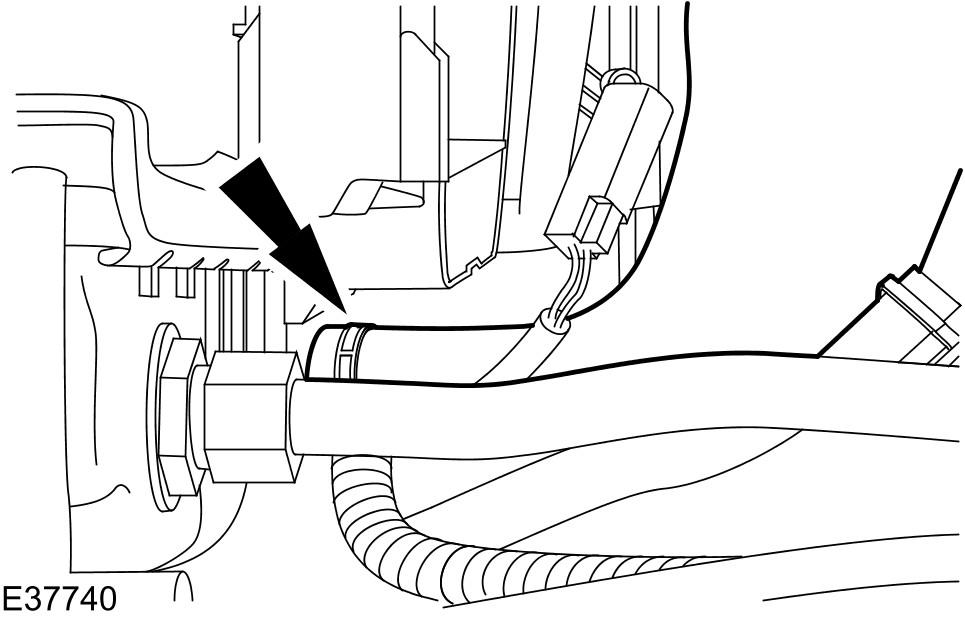

Vehicles with supercharger

Courtesy of JAGUAR CARS, INC.

1. Remove the radiator hose.

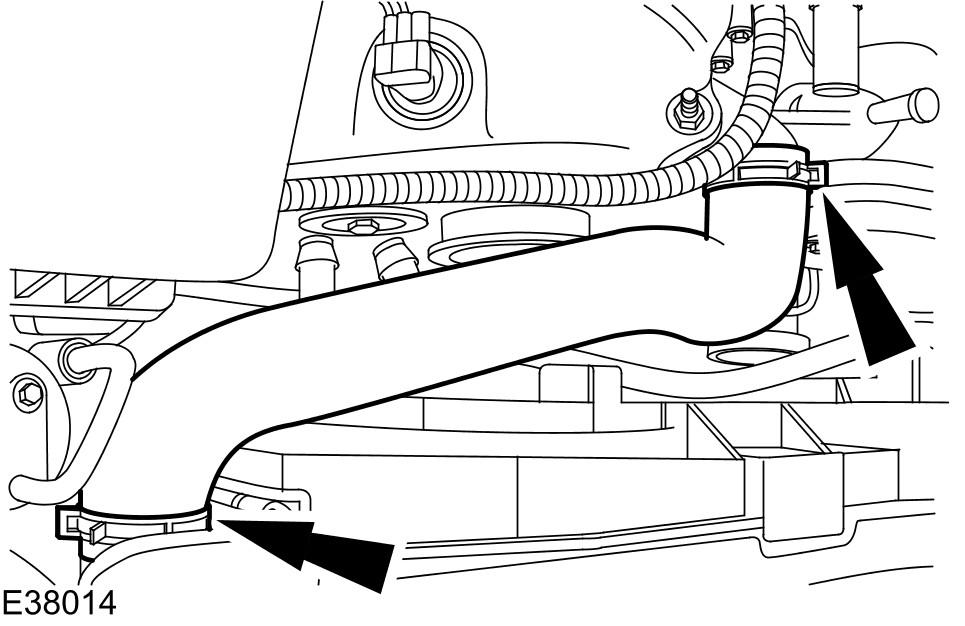

All vehicles

Courtesy of JAGUAR CARS, INC.

1. Detach the radiator hose.
   NOTE: To remove rust, sludge and other foreign material from the cooling system, use Premium Cooling System flush, meeting Jaguar specification EGR-M14P7-A, which is safe for use with aluminum cooling systems. This cleaning restores cooling system efficiency and helps prevent overheating.
   NOTE: In severe cases where cleaning solvents will not properly clean the cooling system, it will be necessary to use the pressure flushing method using Cooling System Flusher, 164-R3670 to restore efficient operation.
   NOTE: A pulsating or reversed direction of flushing water will loosen sediment more quickly than a steady flow in the normal coolant flow direction.
   NOTE: Dispose of old coolant and flushing water contaminated with coolant and cleaning chemicals in accordance with local, state and federal laws.
2. Connect a hose pipe to the radiator upper coolant hose connection using a suitable connector.
CAUTION: Radiator internal pressure must not exceed 100 kPa (14.5 psi). Failure to follow this instruction may cause damage to the vehicle.
3. Flush the radiator using the hose pipe until the coolant flowing from the radiator lower coolant hose connection is clear.
4. Remove the hose pipe from the radiator upper coolant hose connection.
5. Connect a hose pipe to the upper coolant hose using a suitable connector.
6. Flush the engine using the hose pipe until the coolant flowing from the radiator lower coolant hose is clear.
7. Remove the hose pipe from the upper coolant hose connection.

Vehicles with supercharger

Courtesy of JAGUAR CARS, INC.

1. Install the radiator hose.

Vehicles without supercharger

Courtesy of JAGUAR CARS, INC.

1. Install the radiator hose.

All vehicles

Courtesy of JAGUAR CARS, INC.

1. Attach the radiator hose.
2. Install the thermostat. Refer to Thermostat - Removal and Installation (Vehicles Without: Supercharger)  or Thermostat - Removal and Installation (Vehicles With: Supercharger) .
3. Fill the cooling system. Refer to Cooling System Draining, Filling and Bleeding - General Procedures .
