Cooling Fan Module - Removal and Installation: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.

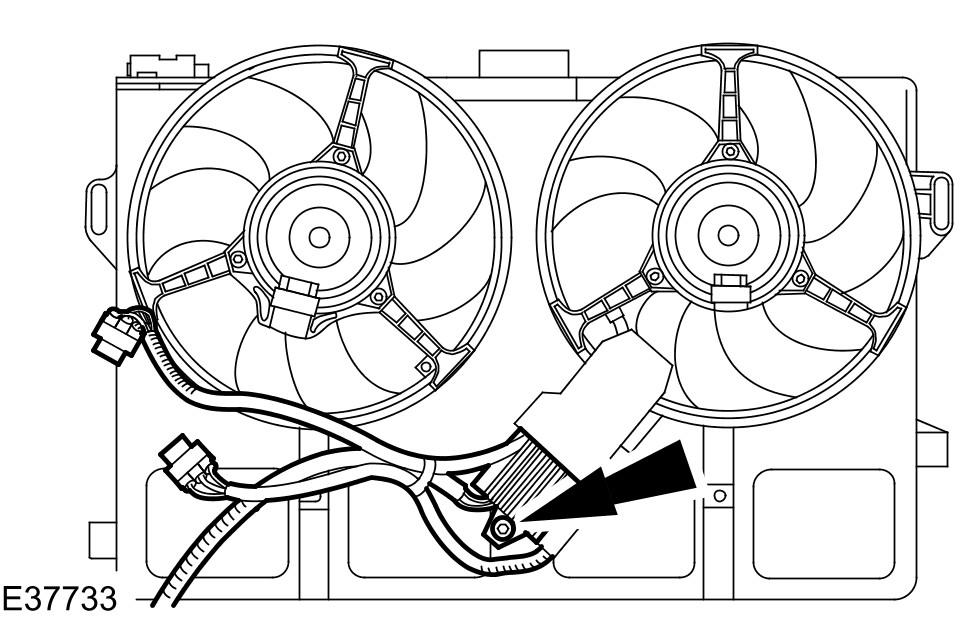

GJ0002427Courtesy of JAGUAR CARS, INC.
  1. Install the cooling fan module.

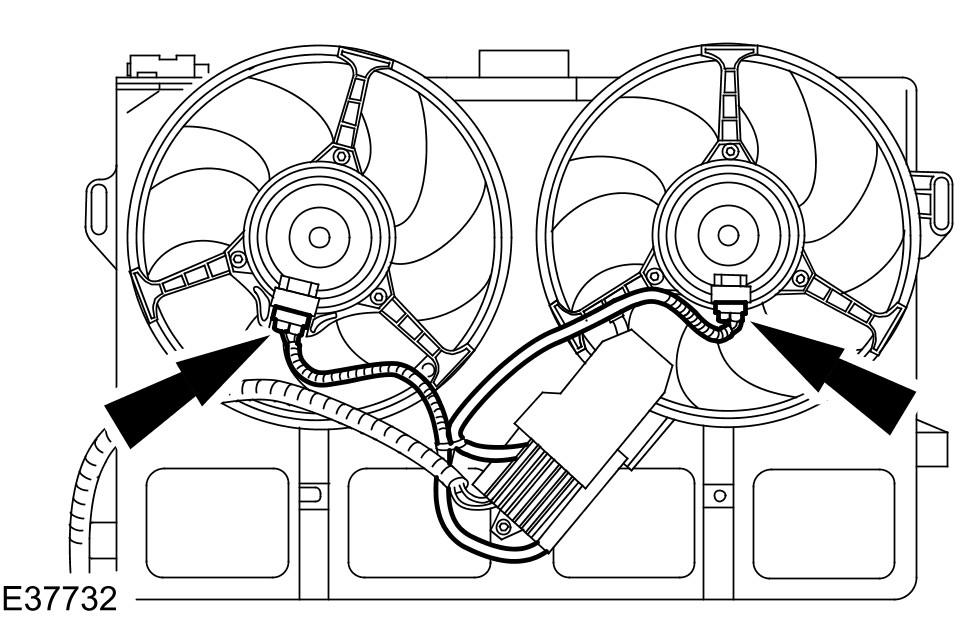

    GJ0002426Courtesy of JAGUAR CARS, INC.
  2. Connect the cooling fan module electrical connectors.

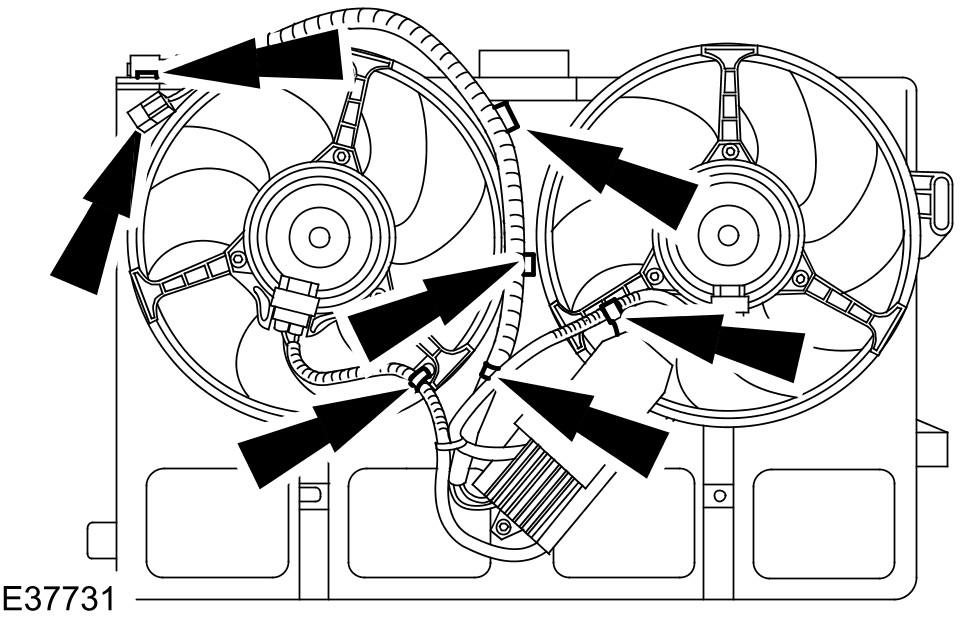

    GJ0002425Courtesy of JAGUAR CARS, INC.
  3. Attach the cooling fan module wiring harness.
  4. Install the cooling fan motor and shroud. Refer to Cooling Fan Motor and Shroud - Removal and Installation .
