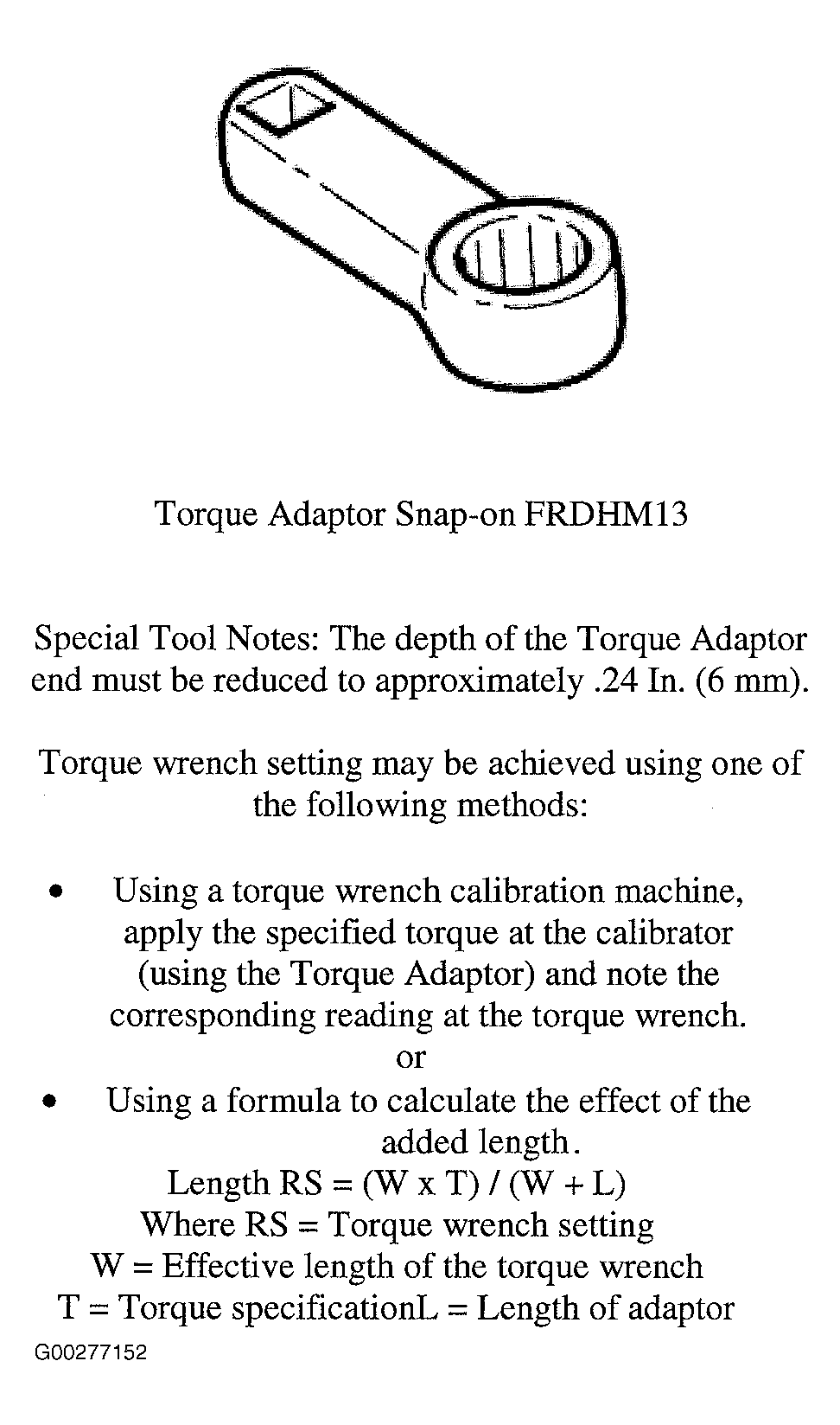

| A/C Compressor Mounting Bolts |
13-18 (18-24) |

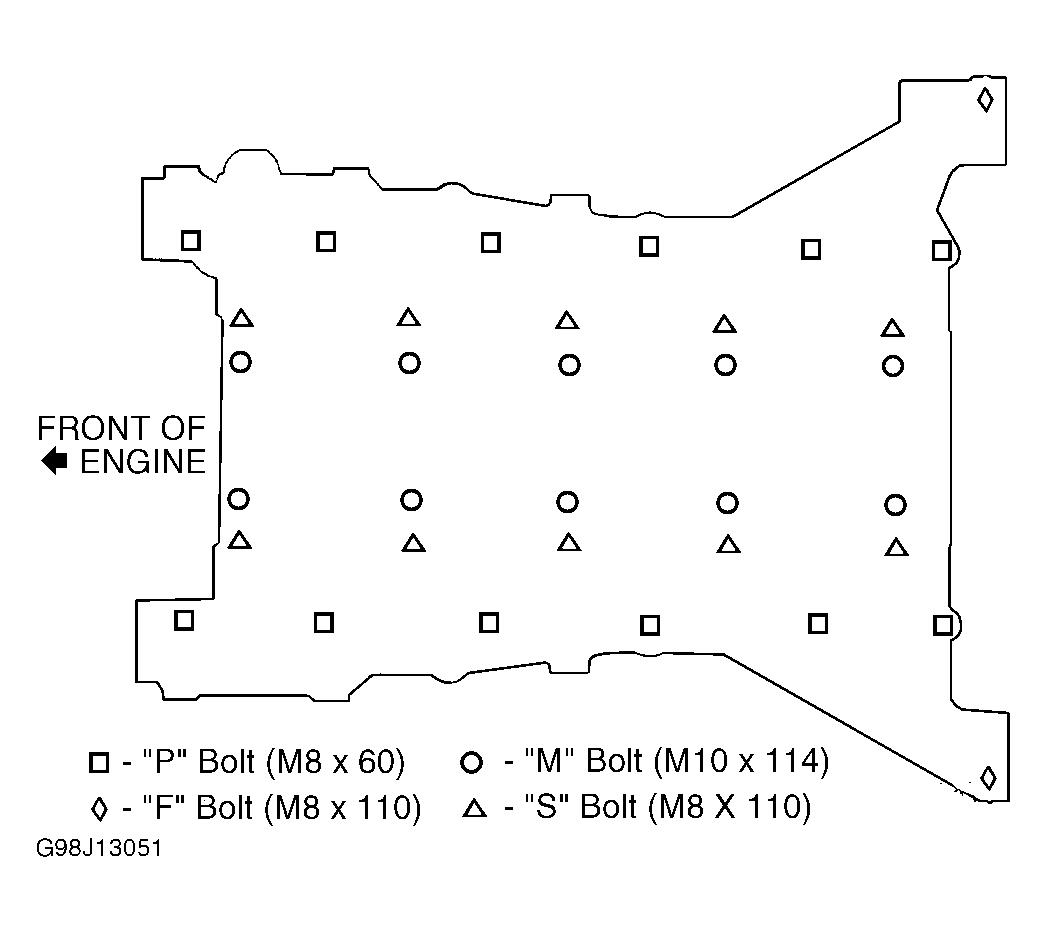

| Bedplate Bolts |
| Step 1 ("P" Bolts) |
10-12 (14-16) |
| Step 2 ("F" Bolts) |
10-12 (14-16) |
| Step 3 ("M" Bolts) |
18-19 (24-26) |
| Step 4 ("S" Bolts) |
10-12 (14-16) |
| Step 5 ("M" Bolts) |
25-27 (34-36) |
| Step 6 ("M" Bolts) |
Additional 135 Degrees |
| Step 7 ("S" Bolts) |
14-15 (19-21) |
| Step 8 ("S" Bolts) |
Additional 150 Degrees |
| Step 9 ("P" Bolts) |
14-15 (19-21) |
| Step 10 ("P" Bolts) |
Additional 90 Degrees |
| Step 11 ("F" Bolts) |
14-15 (19-21) |
| Step 12 ("F" Bolts) |
Additional 150 Degrees |
| Belt Tensioner Bolt |
| Accessory Drive Belt |
28-35 (38-48) |
| Supercharger Drive Belt |
29-38 (39-51) |
| Camshaft Sprocket Bolts |
| Exhaust |
85-92 (115-125) |
| Intake |
| Step 1 |
30 (40) |
| Step 2 |
Additional 90 Degrees |
| Charge Air Cooler Fill Plug |
30-33 (40-45) |
| Charge Air Cooler Inlet Assembly Bolts |
13-18 (18-24) |
| Connecting Rod Bearing Cap Bolts |
| Step 1 |
|
| Step 2 |
22 (30) |
| Step 3 |
Additional 90 Degrees |
| Crankshaft Damper Bolt |
269-285 (364-386) |
| Cross Brace |
| Radiator |
|
| Subframe |
50-68 (68-92) |
| Crossmember Mounting Assembly |
16-21 (22-28) |

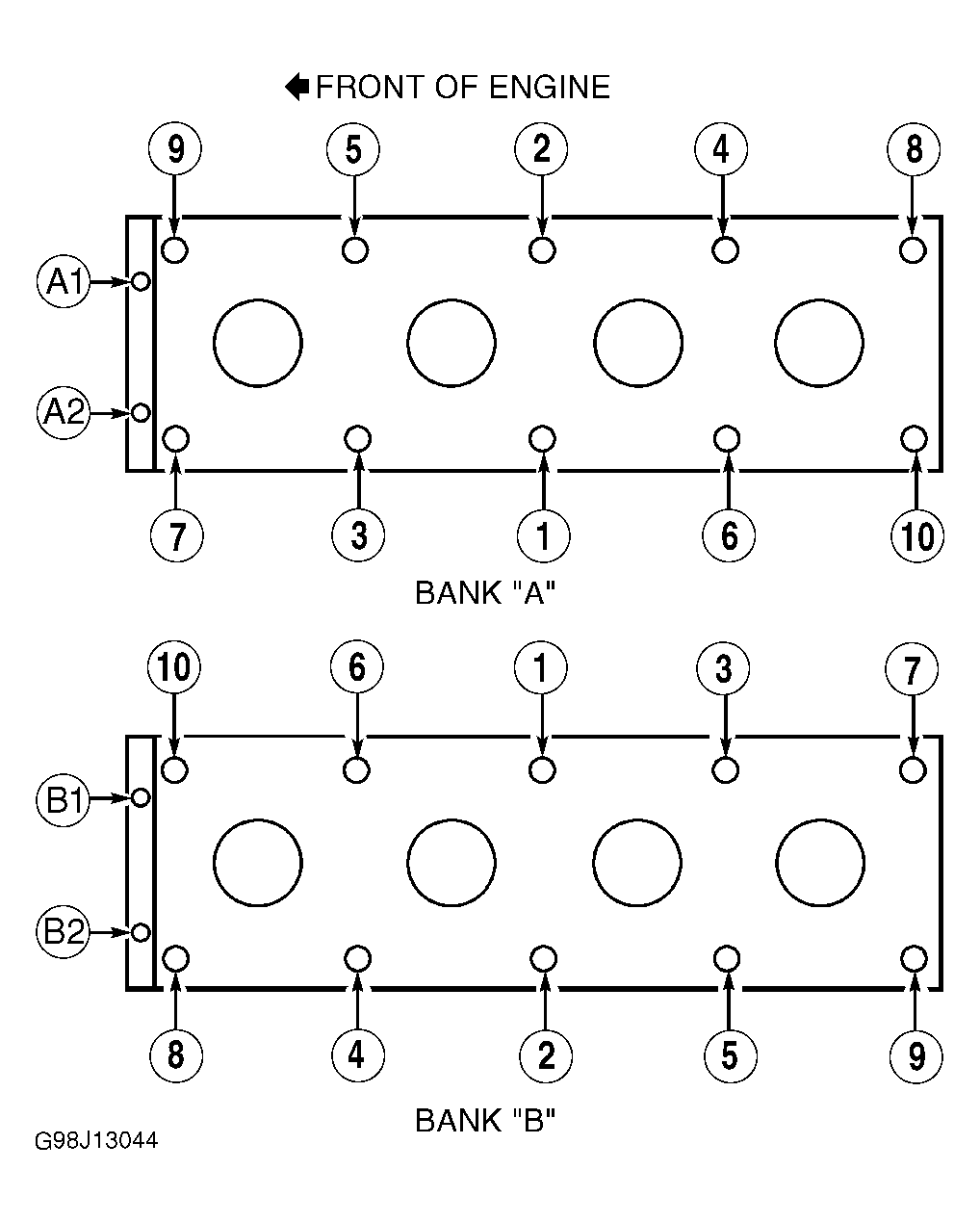

| Cylinder Head Bolts |
| Step 1 (8 & 10 mm Bolts) |
Hand Tight |
| Step 2 (10 mm Bolts) |
15 (20) |
| Step 3 (10 mm Bolts) |
26 (35) |
| Step 4 (10 mm Bolts) |
Additional 90 Degrees |
| Step 5 (10 mm Bolts) |
Additional 90 Degrees |
| Step 6 (8 mm Bolts) |
17-20 (23-27) |
| Downpipe Catalytic Converter Mount Bracket Bolts |
| Bracket-To-Bell Housing |
32-42 (43-57) |
| Bracket-To-Converter |
31-40 (42-54) |
| Downpipe Catalytic Converter-To-Exhaust Manifold Nuts |
11-15 (15-20) |

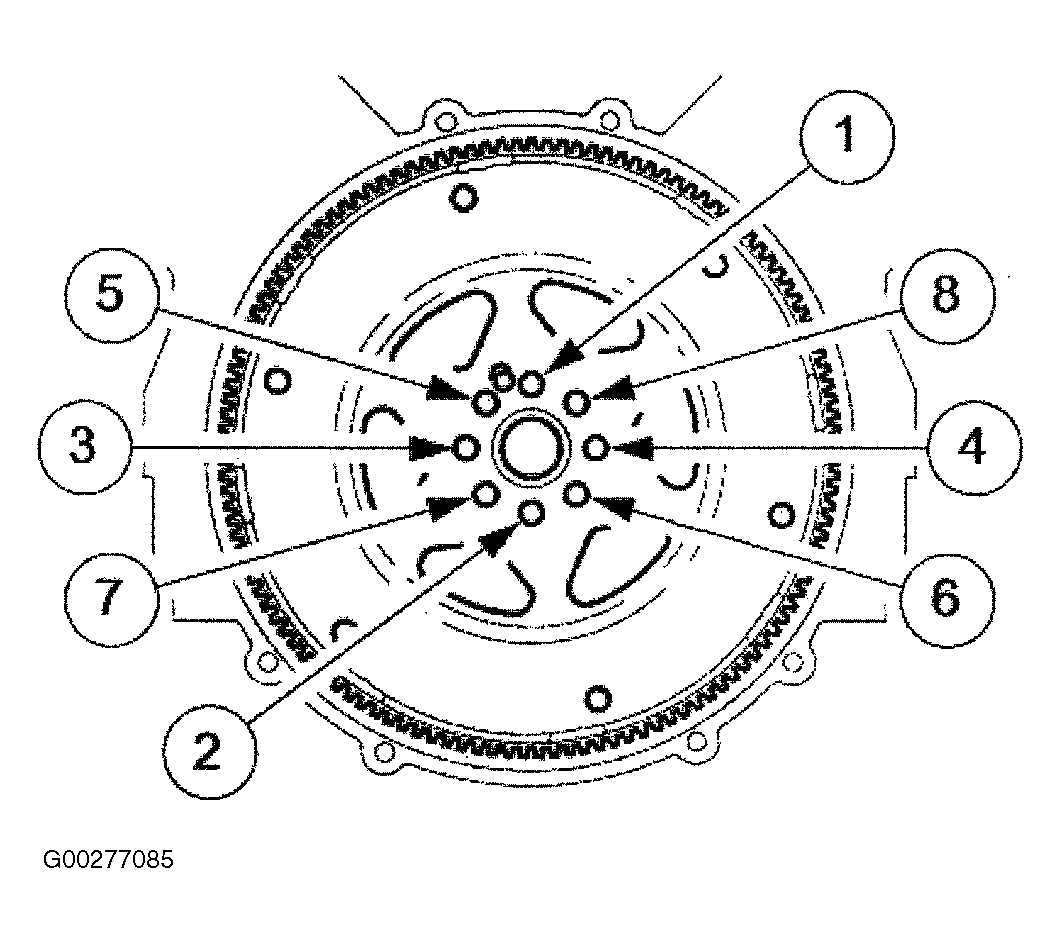

| Drive Plate-To-Crankshaft Bolts |
| Step 1 |
10-12 (14-16) |
| Step 2 |
70-92 (95-125) |
| Drive Shaft-To-Final Drive Flange |
38-51 (51-69) |
| Drive Shaft-To-Transmission Flange |
55-65 (75-88) |
| EGR Pipe Flange-To-Exhaust Manifold Nuts |
13-18 (18-24) |
| EGR-To-Throttle Body Bolts |
13-18 (18-24) |
| Engine Oil Drain Plug |
22-30 (30-40) |
| Exhaust Clamps |
37-44 (50-60) |

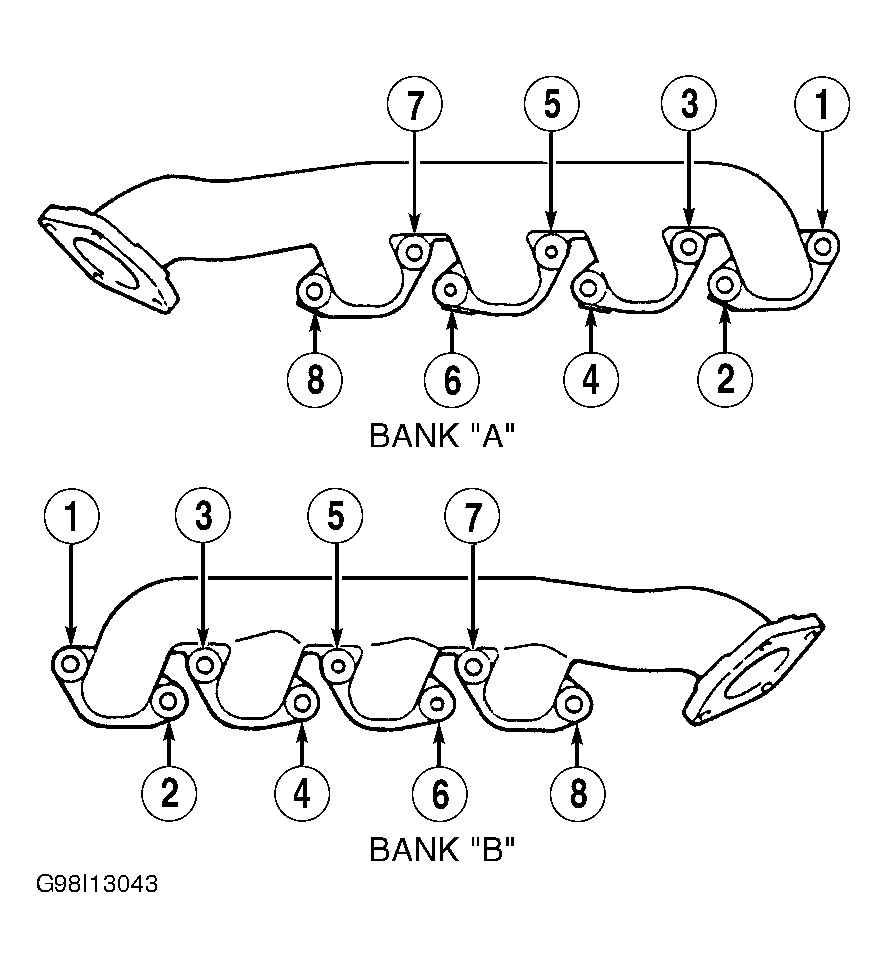

| Exhaust Manifold Bolts |
12-15 (16-20) |
| Front Engine Mount Nut |
44-59 (60-80) |
| Fuel Rail Bolts |
13-18 (18-24) |
| Idler Pulley Bolts |
| Accessory Drive Belt |
39-51 (53-69) |
| Supercharger |
25-34 (34-46) |
| Intake Manifold Bolts |
15-16 (20-22) |
| Intake Manifold Elbow Bolts |
13-18 (18-24) |
| Intake Manifold Elbow Support Bracket Bolts |
12-15 (16-20) |
| Oil Cooler Line Clamp Bolt |
13-18 (18-24) |
| Oil Filter |
11-18 (15-24) |
| Oil Filter Adaptor |
19-25 (26-34) |
| Oil Sump-To-Bedplate Bolts |
15-16 (20-22) |
| Primary Timing Chain Tensioner Blade Pivot Bolt |
9-12 (12-16) |
| Steering Rack Mounting Bolts |
30-37 (40-50) |
| Supercharger-To-Engine Bolts |
13-18 (18-24) |
| Throttle Body Bolts |
13-18 (18-24) |
| Transmission Lines-To-Radiator Fittings |
15 (20) |
| Transmission Mount Nut |
22-30 (30-40) |

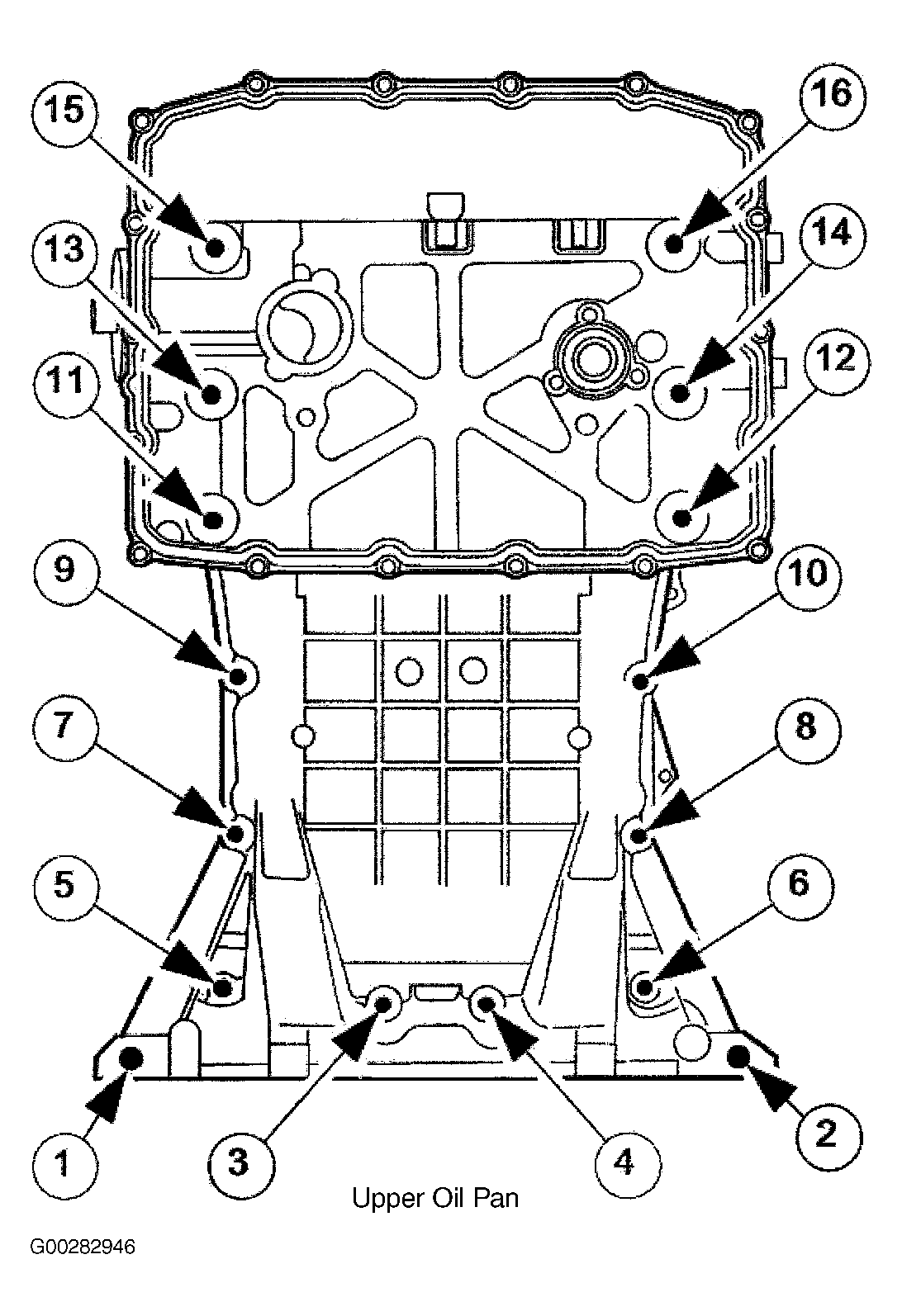

| Upper Oil Pan Bolts |
15-16 (20-22) |
| Variable Camshaft Timing Oil Control Unit Bolt |
| Step 1 |
30 (40) |
| Step 2 |
Additional 90 Degrees |
| Variable Camshaft Timing Oil Control Unit Housing |
| Bolts |
14-17 (19-23) |
| Nut |
14-17 (19-23) |
| Wheel Lugs |
| Alloy Wheels |
65-75 (88-102) |
| Steel Wheels |
50-60 (68-82) |
| INCH Lbs. (N.m) |
| A/C Line Fitting Nuts |
88 (10) |
| Camshaft Cap Bolts |
80-97 (9-11) |
| Charge Air Cooler-To-Intake Manifold Bolts |
97-115 (11-13) |
| Coil On-Plug Cover Bolts |
35-53 (4-6) |
| Condenser-To-Compressor Line Fitting Nut |
71-88 (8-10) |
| Condenser-To-Receiver/Drier Line Fitting Bolt |
71-88 (8-10) |
| Coolant Outlet Pipe |
88-124 (10-14) |
| Crankshaft Position (CKP) Sensor Bolt |
71-106 (8-12) |

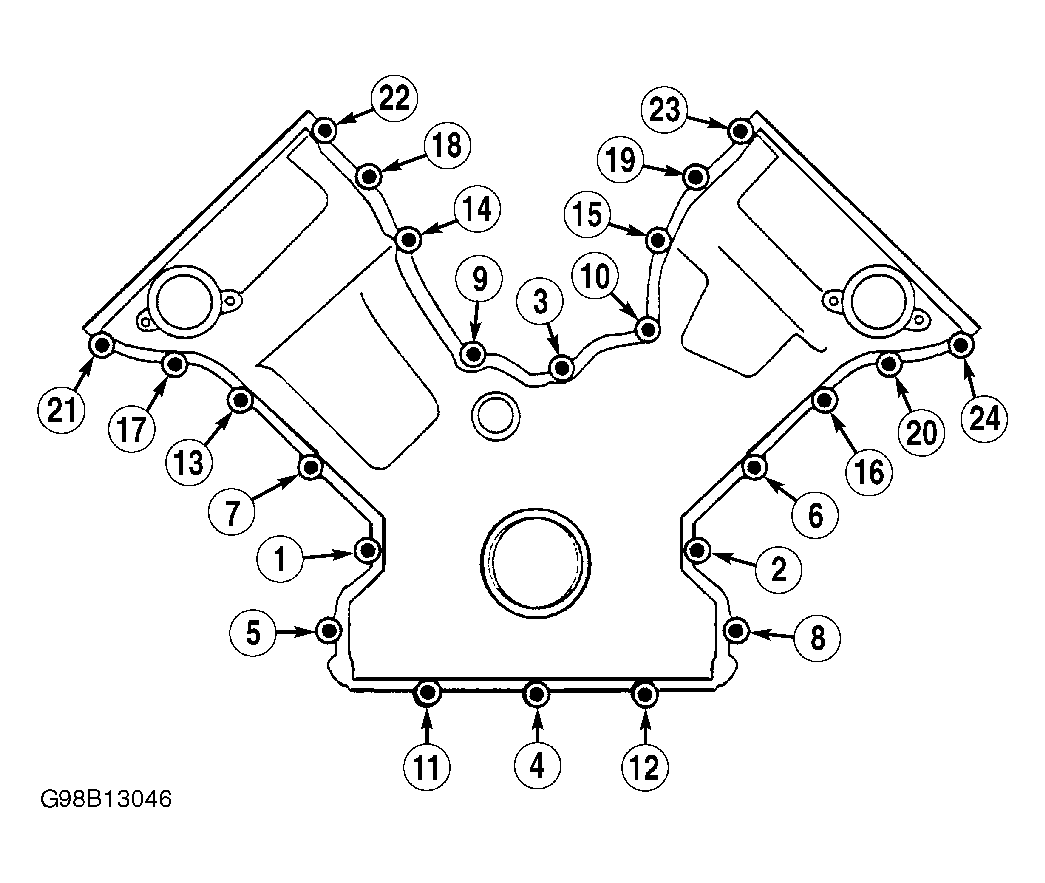

| Front Timing Cover Bolts |
97-115 (11-13) |
| Fuel Cross Over Elbow Bolts |
71-106 (8-12) |
| Fuel Feed Pipe Bolts |
71-106 (8-12) |
| Fuel Injector Bolts |
71-106 (8-12) |
| Fuel Injector Harness Retaining Nuts |
35-44 (4-5) |
| Fuel Pressure Regulator Bolts |
71-106 (8-12) |
| Ignition Coil Bolts |
35-53 (4-6) |
| Oil Level Tube Nut |
62 (7) |

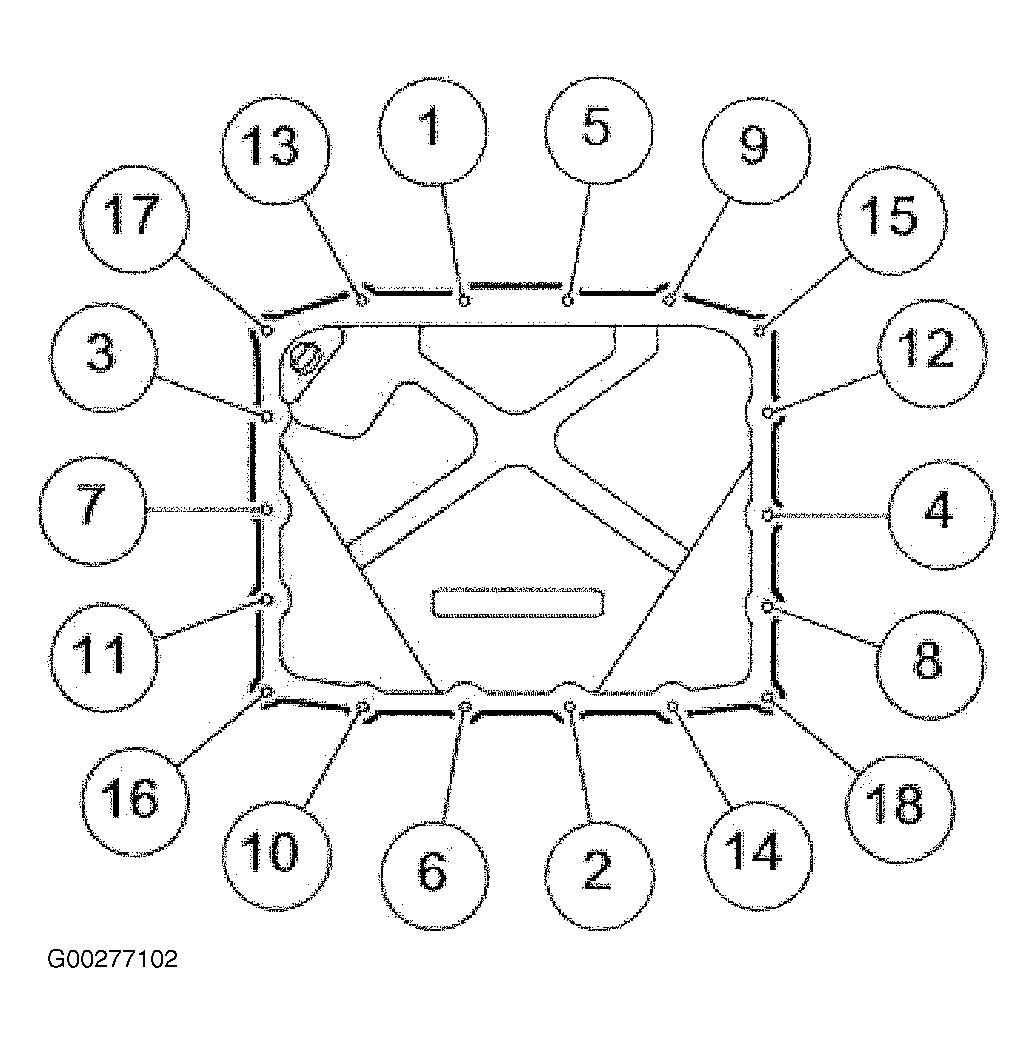

| Oil Pan Bolts |
97-115 (11-13) |
| Oil Pick-Up Assembly Bolts |
97-115 (11-13) |
| Oil Pressure Switch |
11 (15) |
| Oil Pump Bolts |
97-115 (11-13) |
| Primary Timing Chain Guide Bolt |
88-124 (10-14) |
| Primary Timing Chain Tensioner Bolts |
88-124 (10-14) |
| Radiator Drain Plug |
11-13 (1.2-1.5) |
| Radiator Fan Assembly Mounting Nuts |
44-62 (5-7) |
| Radiator Support Bracket Bolts |
88 (10) |
| Secondary Timing Chain Tensioner Bolts |
88-124 (10-14) |
| Supercharger Outlet Duct Bolts |
80-97 (9-11) |
| Thermostat Cover Bolts |
71-88 (8-10) |
| Throttle Cable Bracket Screws |
35-53 (4-6) |
| Transmission Cross Shaft Nut |
62-88 (7-10) |
| Transmission Oil Cooler Line Bracket Bolt |
62-80 (7-9) |
| Transmission Selector Cable Nut |
62-88 (7-10) |
| Upper Radiator Retaining Panel |
71-88 (8-10) |

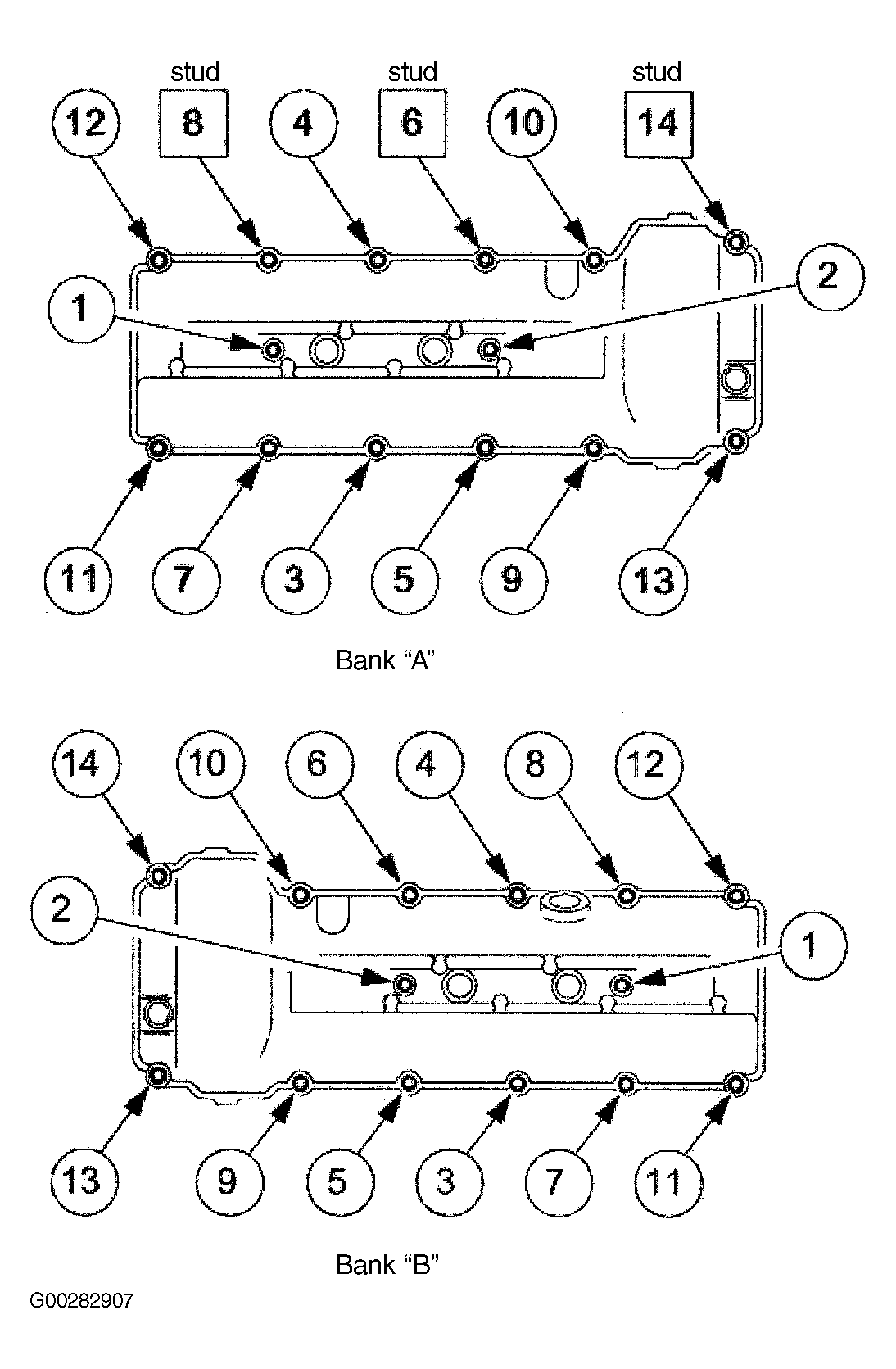

| Valve Cover Bolts |
80-97 (9-11) |
| Variable Camshaft Timing Oil Control Solenoid Bolts |
88 (10) |
| Water Pump Bolts |
| Step 1 |
71 (8) |
| Step 2 |
Additional 90 Degrees |
| Water Pump Pulley Bolts |
88-124 (10-14) |
| Windage Tray |
44-62 (5-7) |
