Driver Seat Control Module (Memory) Connector End View

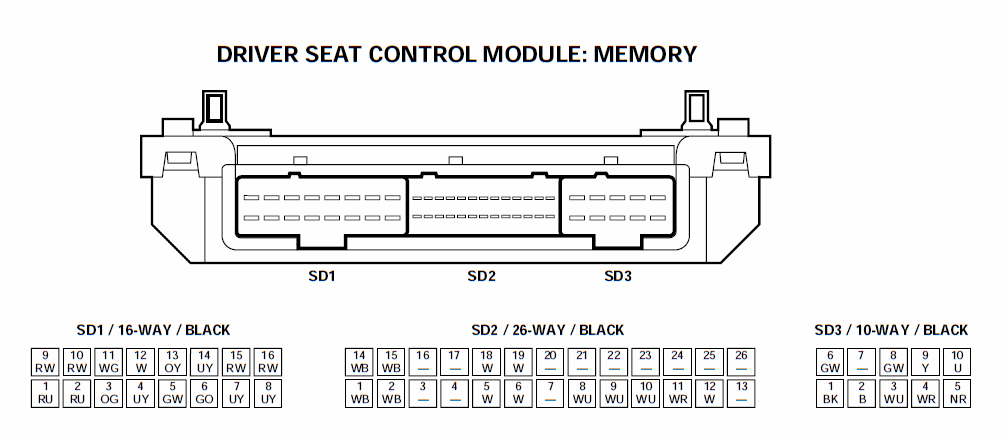

Fig 1: Driver Seat Control Module (Memory) Connector End View

G00558649

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
