Driver Rear Door Control Module Connector End View

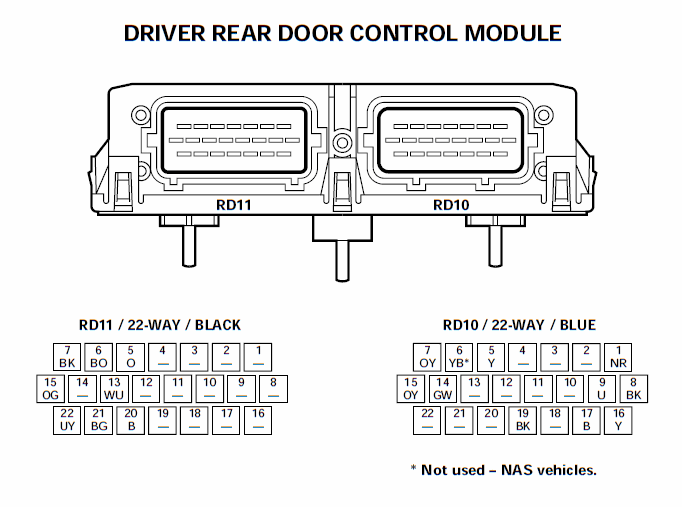

Fig 1: Driver Rear Door Control Module Connector End View

G00558648

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
