Engine Control Module (AJ27 N/A) Connector End View

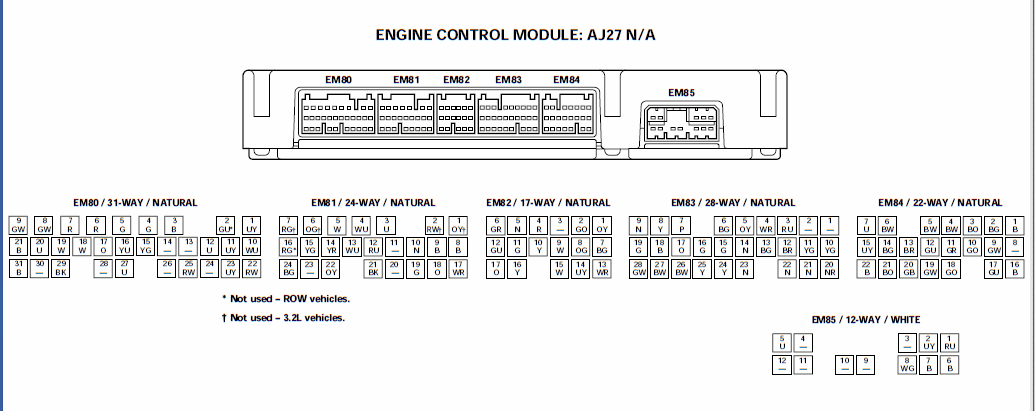

Fig 1: Engine Control Module (AJ27 N/A) Connector End View

G00558651

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
