Driver Seat Control Module (Non-Memory) Connector End View

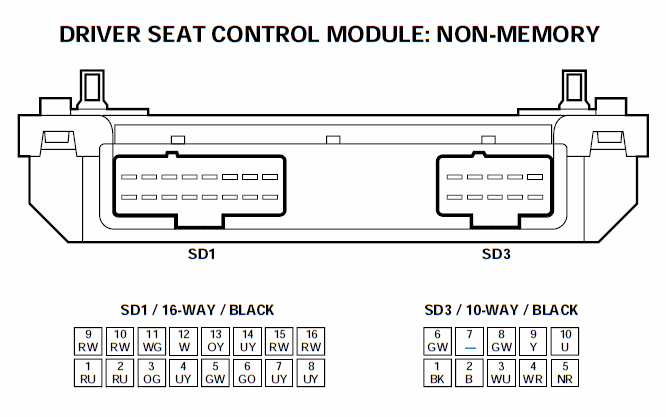

Fig 1: Driver Seat Control Module (Non-Memory) Connector End View

G00558650

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
