Driver Door Control Module Connector End View

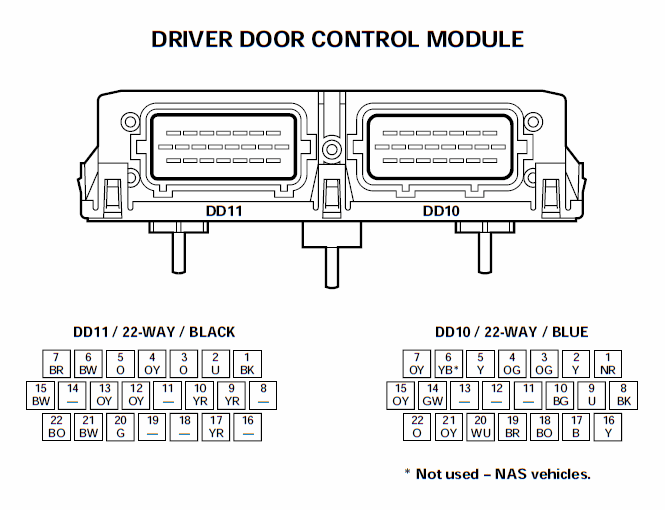

Fig 1: Driver Door Control Module Connector End View

G00558647

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
