Transmission Connector Pin Identity Chart For EM046

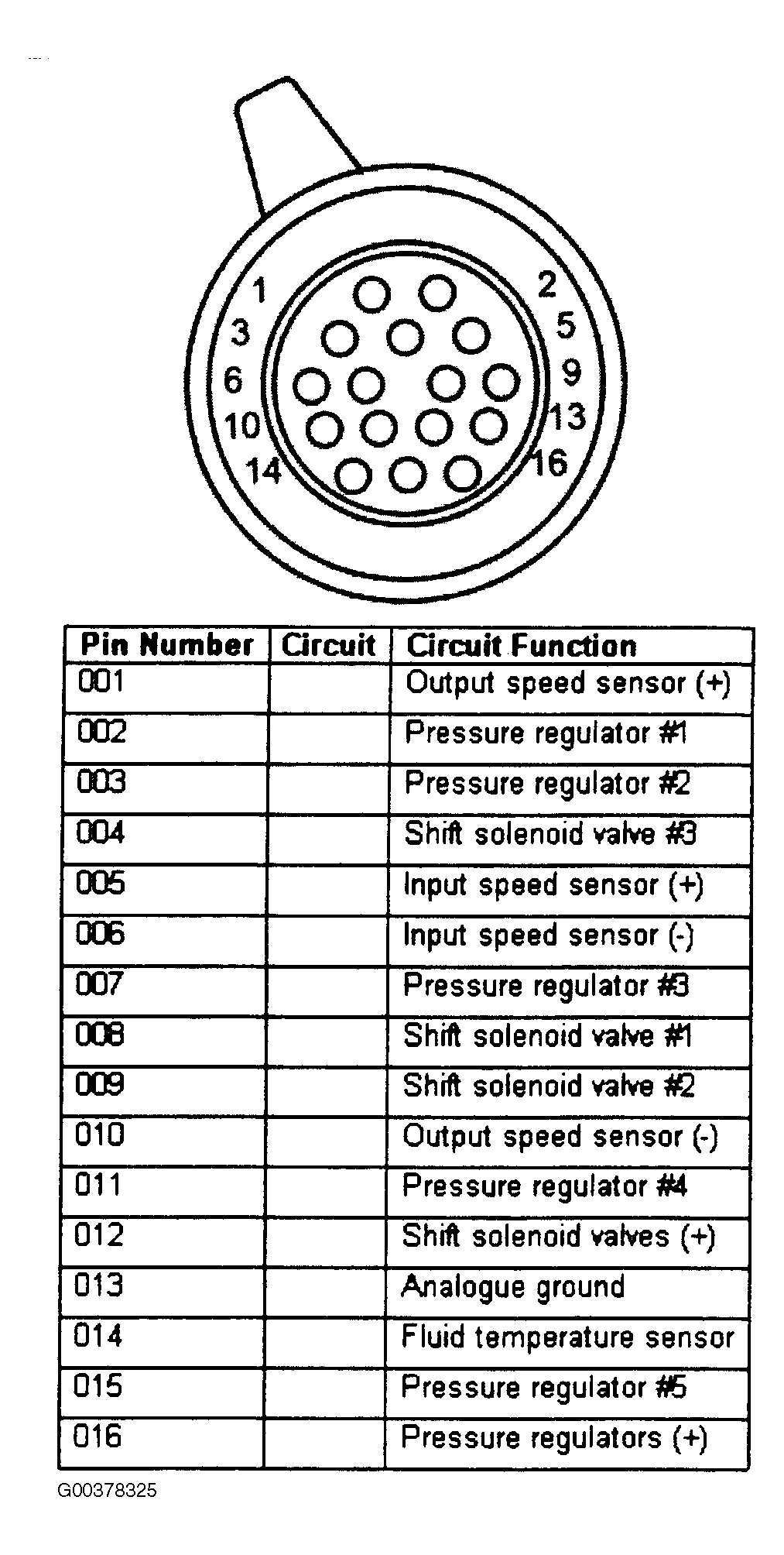

Fig 1: Identifying Transmission Connector Terminals

G00378325

Courtesy of JAGUAR CARS, INC.
