Flexplate - In-Vehicle Procedures: Installation

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Jaguar XKR, 2006 Jaguar XK8, 2005 Jaguar XKR, 2005 Jaguar XK8, and 2004 Jaguar XKR. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Make sure the crankshaft and flexplate mating faces are clean before installation.
    NOTE: The flexplate will only locate in one position.
    NOTE: Install, but do not tighten, the flexplate retaining bolts.

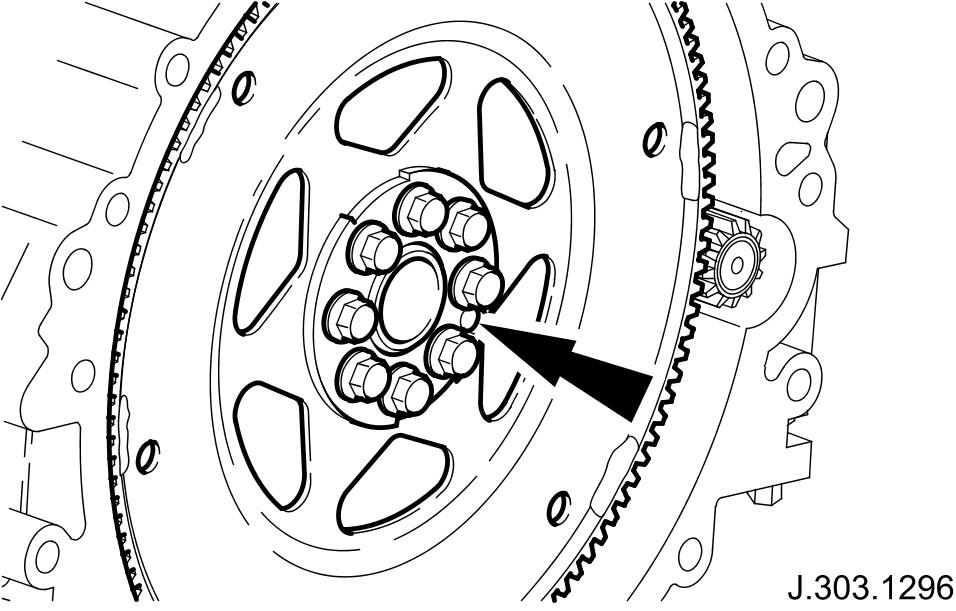

  1. Install the flexplate.
    • Prevent the flexplate from rotating.
      GJ0002946Courtesy of JAGUAR CARS, INC.

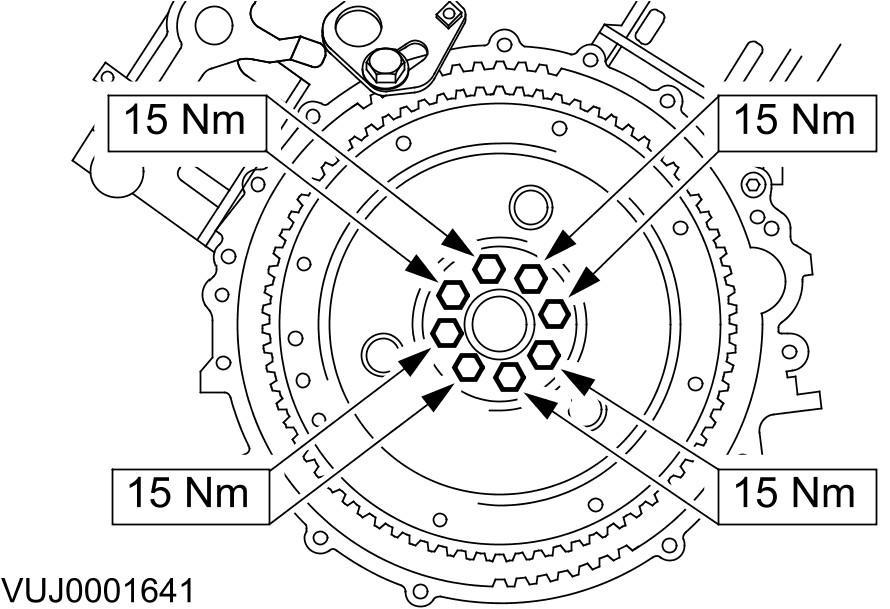

    2. NOTE: Tighten the retaining bolts working diagonally.
  2. Tighten to 15 Nm.
    GJ0002947Courtesy of JAGUAR CARS, INC.

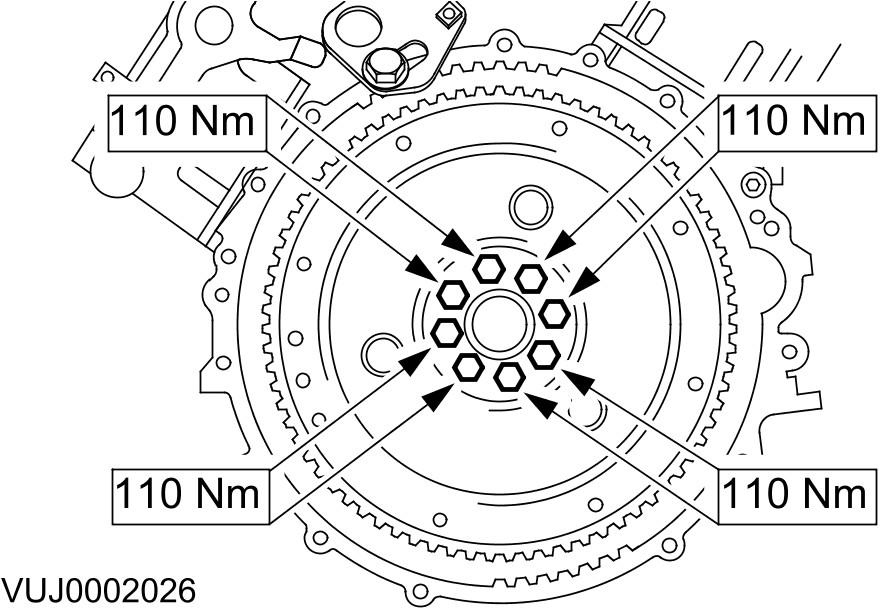

    3. NOTE: Tighten the retaining bolts working diagonally.
  3. Tighten to 110 Nm.
    GJ0002948Courtesy of JAGUAR CARS, INC.
  4. Install the automatic transmission. For additional information, Refer to Transmission - 4.2L .
