Oil Pressure Switch: Installation

    NOTE: Fit new sealing washer to oil pressure switch.

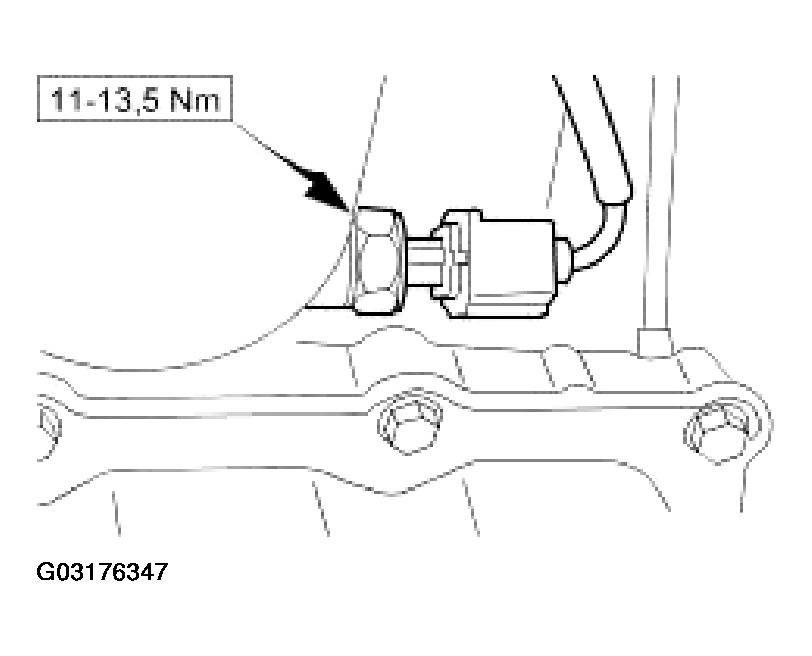

    Fig 1: Installing Switch
    G03176347Courtesy of JAGUAR CARS, INC.
  1. Installation is reverse of removal.
