Passenger Door Control Module Connector End View

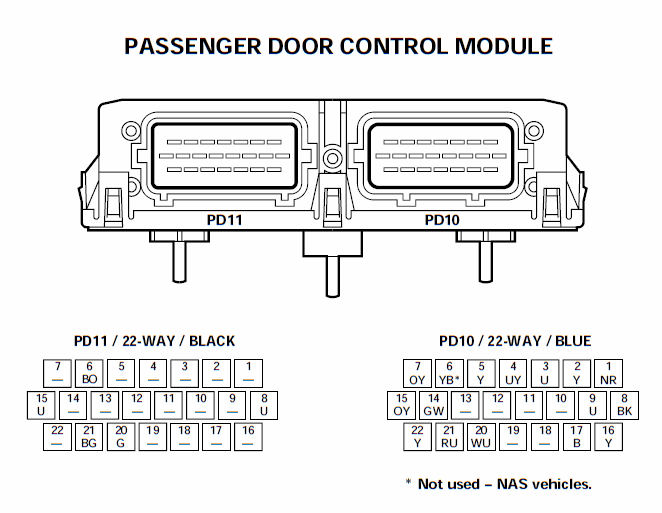

Fig 1: Passenger Door Control Module Connector End View

G00558655

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
