Test Equipment

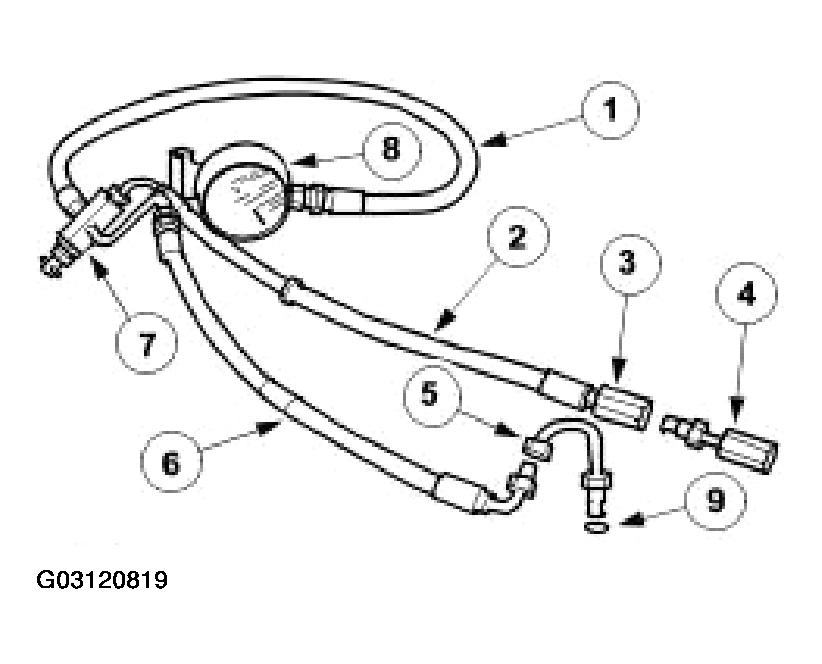

POWER STEERING PRESSURE TEST EQUIPMENT DESCRIPTION
| Item | Special Tool | Number Description |
|---|---|---|
| 1 | 211-011 | Pressure Gauge Hose |
| 2 | 211-011-08 | Pump Return Hose |
| 3 | 211-011-07 | Pump Return Hose Connector |
| 4 | 211-011-03/2 | Test Equipment to High Pressure Hose Adaptor |
| 5 | 211-011-03/1 | Pump High Pressure Outlet to Hose Adaptor |
| 6 | 211-011-02 | Pump Adaptor to Control Valve Hose |
| 7 | 211-011-01 | Control Valve |
| 8 | 211-011 | Pressure Gauge |
| 9 | - | 'O' Ring Seal |
The measurement of the maximum system pressure, (which is governed by the pressure relief valve) is achieved by inserting the Service Tool (pressure gauge and adaptors) into the fluid circuit of the power steering system. Run the engine at idle speed, turn the steering from lock to lock and read the maximum pressure recorded on the gauge.
