Engine Coolant Temperature (ECT) Sensor: Installation

  1. Fitting is the reverse of the removal procedure, noting that a new sealing washer should be used and tighten the sensor as specified.
    • Fit the sensor and new sealing washer. (1)
    • Connect the harness plug to the sensor. (2)

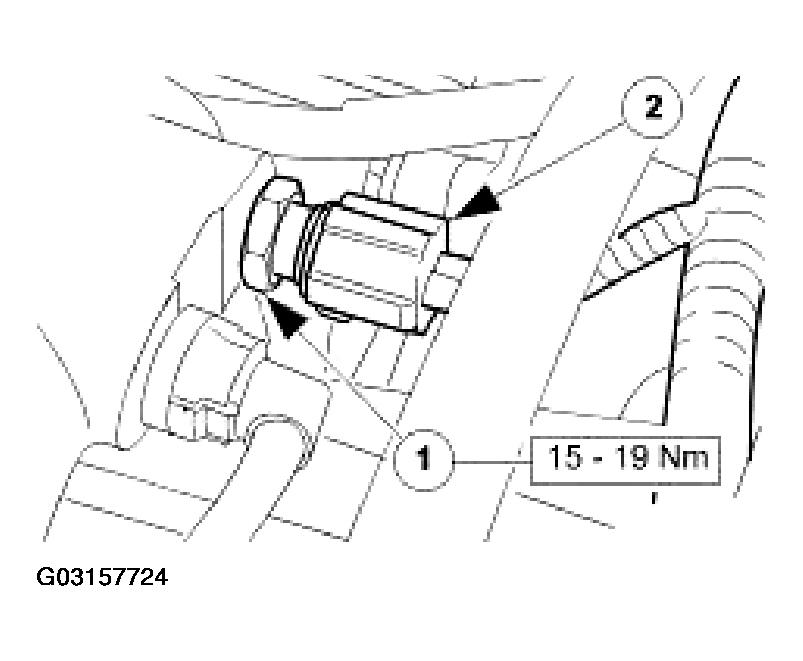

    Fig 1: Installing Engine Coolant Temperature Sensor
    G03157724Courtesy of JAGUAR CARS, INC.
  2. Check and adjust the coolant level as required.
