Wheel Speed Sensor Ring Grease Deflector: Installation
- Install grease deflector to rotor nut.

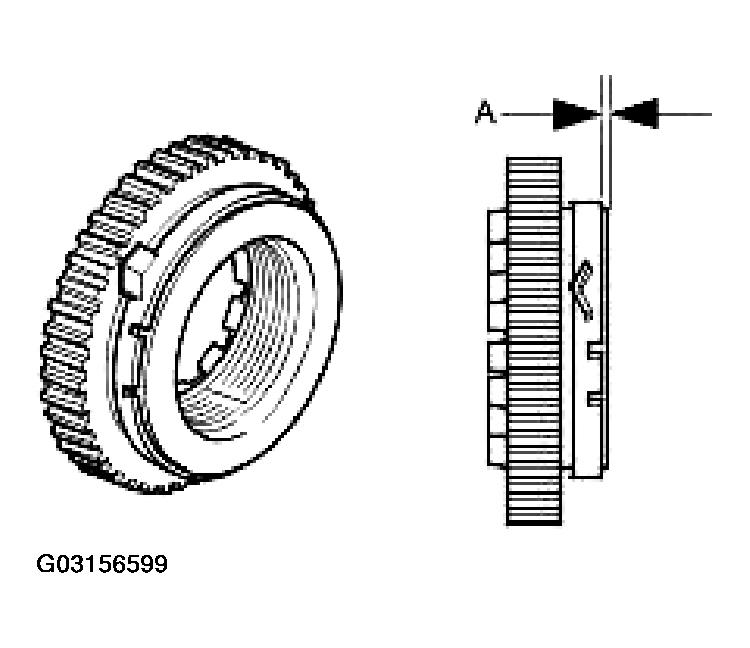

- Install the grease deflector ring as shown with deflectors towards rotor teeth.
- The distance at 'A' must be 0.5 mm.
Courtesy of JAGUAR CARS, INC.
- Install ABS hub rotor nut to vertical link and hub assembly. Refer to WHEEL SPEED SENSOR RING .
- Install disc shield to vertical link.

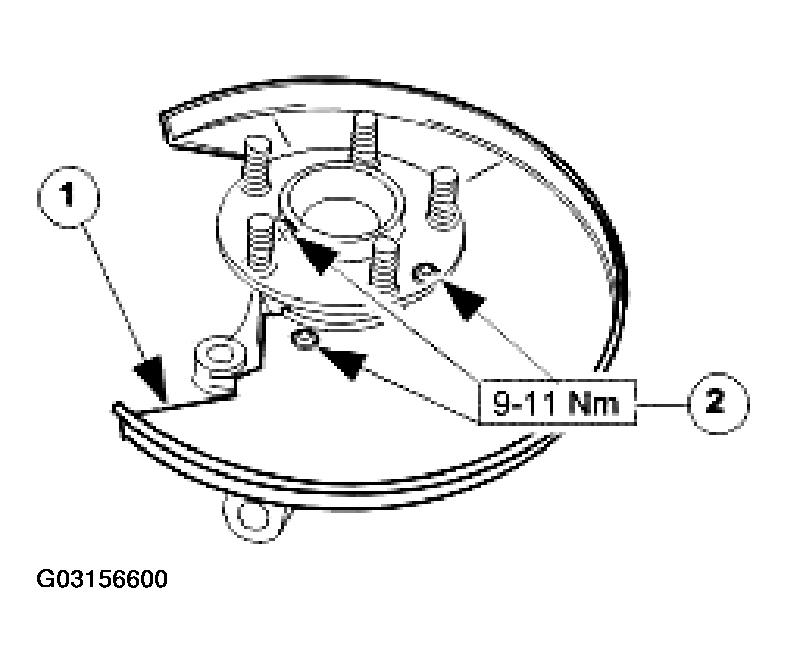

- Position disc shield. (1)
- Install and tighten bolts. (2)
Courtesy of JAGUAR CARS, INC.
- Install vertical link and hub assembly to vehicle. Refer to WHEEL KNUCKLE AND WHEEL HUB ASSEMBLY
.
- Install brake disc. Refer to FRONT DISC BRAKE ROTOR
.
- Install wheel. Refer to WHEEL AND TIRE
.
- Remove stands and lower vehicle.
