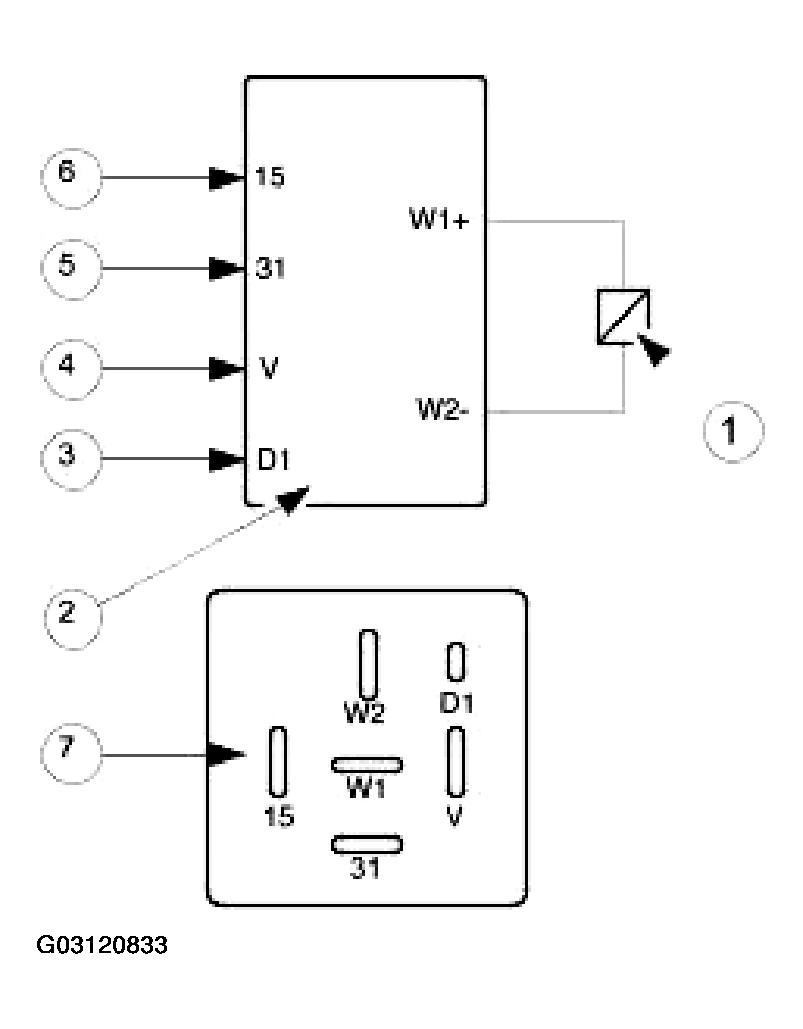

Control Module Connections
CONTROL MODULE CONNECTIONS
|
|
| Item |
Description |
| 1 |
Servotronic Valve |
| 2 |
Power Steering Control Module |
| 3 |
Diagnostic Line |
| 4 |
Speed Signal from Instrument Cluster |
| 5 |
Ground |
| 6 |
Ignition Supply +12V |
| 7 |
Base of Power Steering Control Module |
